Removing and installing battery - AR54.10-P-0005I
MODEL 215, 220

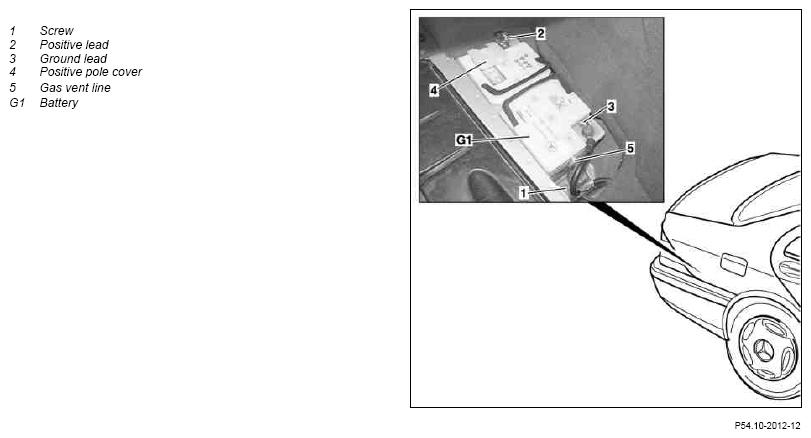

Shown on model 220
| Removal, installation | |||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes on batteries | All models | AH54.10-P-0001-01A | |
| 1 | Remove ignition key | ||
| 2 | Pivot trunk cover up | ||
| 3 | Unscrew screw (1) and remove holder | ||
| 4 | Connect quiescent current retention unit | AR54.10-P-1030-07I | |
| 5 | Disconnect ground lead (3) from battery | ||
| 6 | Remove gas vent line (5) from battery (G1) | ||
| 7 | Remove positive pole cover (4) upward | ||
| 8 | Disconnect positive lead (2) from battery | ||
| 9 | Remove battery (G1) | ||
| 10 | Install in opposite order |
