Electrical System, Equipment & Instructions - 221 Chassis - 2 Of 9
>>
Basic Knowledge
>>

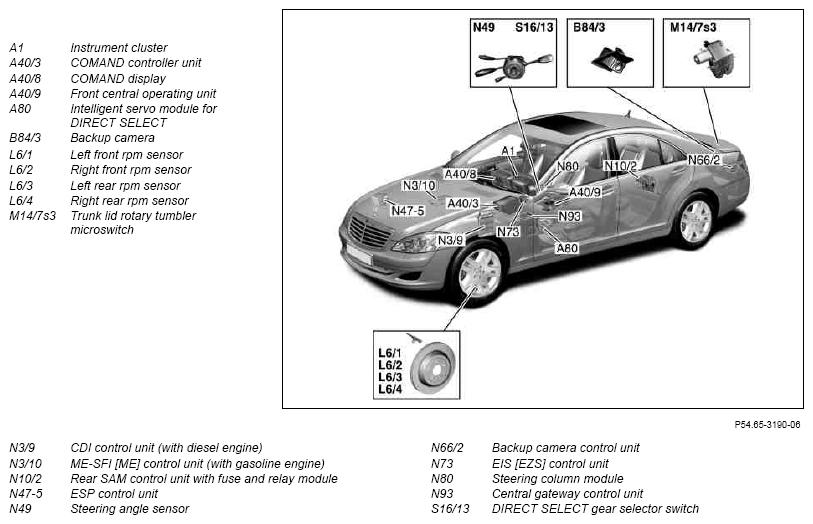

Backup camera (RFK) location of components - GF54.65-P-0005-01SX
Backup camera (RFK) location of components - GF54.65-P-0005-01SX
MODEL 221.0 /1, 216.3 with CODE (218) Backup camera up to Model Year 8
Shown on model 221.0
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
