DC/AC converter control unit, component description - GF54.21-P-4127LE
MODEL 221.0/1 with CODE (U80) 115 V socket as of model year 2011/YoM 10

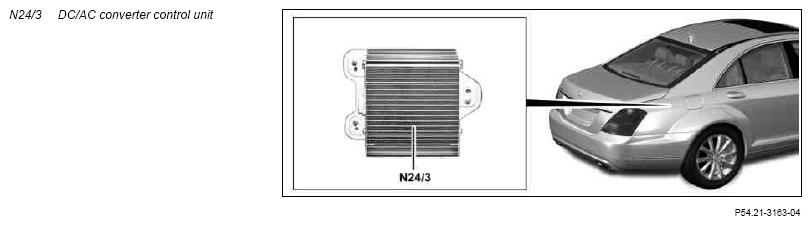

Location
The DC/AC converter control unit is in the luggage compartment behind the right luggage compartment lining.
Task
The DC/AC converter control unit converts the DC voltage of the on-board electrical system into a 115 V AC voltage. It is then possible to connect small electrical devices that are powered by an AC voltage (e.g. video game consoles, mobile phone chargers) to the 115 V socket (X58/34). The maximum available continuous electrical load is P = 150 W.
The rear SAM control unit with fuse and relay module (N10/2) supplies voltage to the power outlet microswitch (X58/34s1) in the 115 V power outlet. If a consumer is now connected to the 115 V power outlet, this voltage is switched through to the control input of the DC/AC converter control unit.
| Wiring diagram control unit DC/AC converter | PE54.10-P-2103-97SAB |
