Remove/install oil lines of oil cooling for automatic transmission - AR27.55-P-0600SYZ

Transmission 722.96 in model 216, 221 with 4MATIC

Fig 1: Identifying Oil Cooling For Automatic Transmission Oil Lines Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

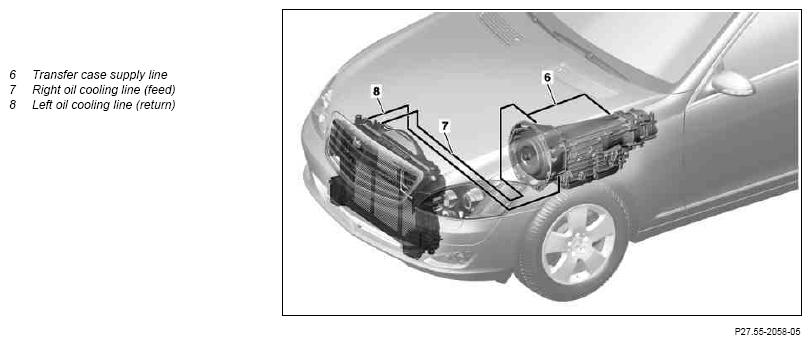

Fig 2: Identifying Oil Cooling For Automatic Transmission Oil Lines Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

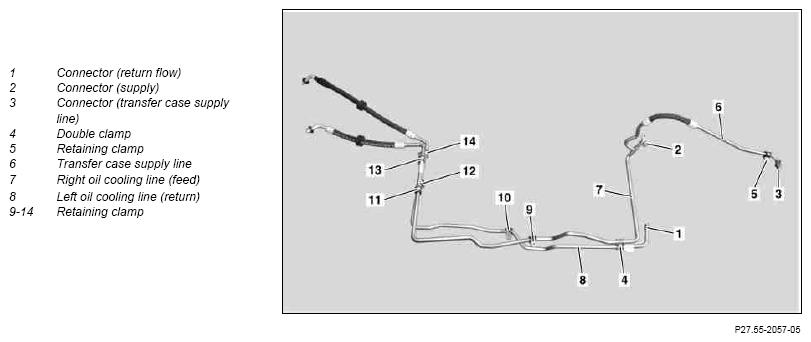

Fig 3: Identifying Oil Cooling For Automatic Transmission Oil Lines Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open engine hood and raise to vertical position
2	Detach oil cooling lines (7, 8) from radiator		AR27.10-P-0501-03SX

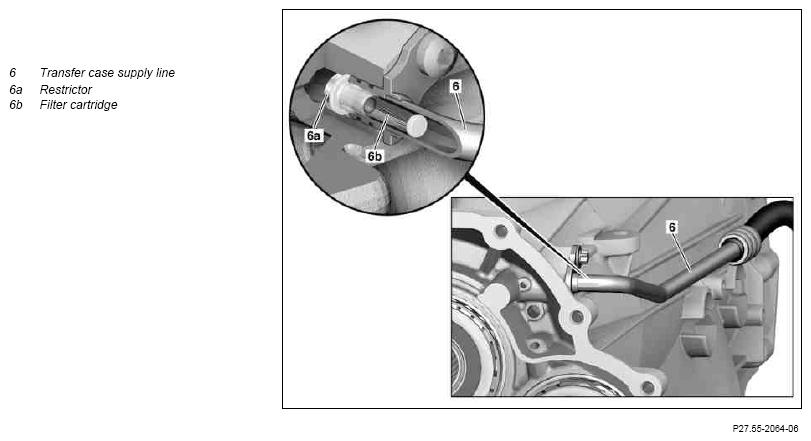

		Before starting work the area surrounding the oil cooling lines (7, 8) on the transmission and the supply line (6) on the transfer case must be thoroughly cleaned in the area around the separation points. Even the smallest dirt particles in the hydraulic components can lead to malfunctions and a total failure of the transmission. A restrictor (6a) and a filter cartridge (6b) is fitted in the connection to the transfer case in supply line (6). The right oil cooling line (7) and supply line (6) are securely connected to each other and can therefore only be removed together.
		Record plug	Figure
	Left oil cooling line (8)
3	Mount engine hoist		AR33.10-P-0105SX
		Raise the engine until the engine mounts are completely relieved of load.
4	Loosen engine mounts on front axle carrier	Transmission 722.9 in model 221.0 with 4MATICBolt, front engine mount to front axle carrier	*BA22.10-P-1001-03D
		Transmission 722.9 in model 216.3 with 4MATICBolt, front engine mount to front axle carrier	*BA22.10-P-1001-03C
5	Detach connector (1) of oil cooling line (8) on transmission	Install new seals.
		Transmission 722.9 in model 216.3, 221.0/1 with 4MATICBolt, transmission oil line to transmission housing	*BA27.55-P-1002-01D
6	Detach retaining clamps (10, 12, 14) from engine oil pan	Transmission 722.9 in model 216.3, 221.0/1 with 4MATICBolt, oil cooler oil line to engine oil pan	*BA27.55-P-1003-01D
7	Detach double clamp (4) of oil cooling lines (7, 8)	Transmission 722.9 in model 216.3, 221.0/1 with 4MATICBolt, clamp of oil cooler oil line to bracket	*BA27.55-P-1005-01D
8	Remove oil cooling line (8)
	Right-hand oil cooling line (7) with supply line (6)
9	Remove rear engine cross member		AR22.10-P-1180SW
10	Detach retaining clamp (5) of supply line (6) on transmission housing	Transmission 722.9 in model 216.3, 221.0/1 with 4MATICBolt, clamp of oil cooler oil line to engine oil pan	*BA27.55-P-1006-01D
11	Detach connector (3) of supply line (6) on transfer case	Replace restrictor (6a) and filter cartridge (6b) and check they are correctly seated in the supply line (6). Install new seals.
		Transmission 722.9 in model 216.3, 221.0/1 with 4MATIC Oil cooler oil line/oil supply line to transfer case	*BA27.55-P-1007-01D
12	Install rear engine cross member		AR22.10-P-1180SW
13	Remove front axle carrier		AR33.10-P-0100SYZ
14	Detach connector (1) of oil cooling line (8) on transmission	Install new seals.
		Transmission 722.96 in model 216, 221 with 4MATICBolt, transmission oil line to transmission housing	*BA27.55-P-1002-01D
15	Detach retaining clamps (10, 12, 14) from engine oil pan	Transmission 722.96 in model 216, 221 with 4MATICBolt, clamp of oil cooler oil line to engine oil pan	*BA27.55-P-1006-01D
16	Detach double clamp (4) of oil cooling lines (7, 8)	Transmission 722.96 in model 216, 221 with 4MATICBolt, clamp of oil cooler oil line to bracket	*BA27.55-P-1005-01D
17	Detach connection (2) of oil cooling line (7) from transmission	Install new seals.
		Transmission 722.96 in model 216, 221 with 4MATICBolt, transmission oil line to transmission housing	*BA27.55-P-1002-01D
18	Detach retaining clamps (9, 11, 13) from engine oil pan	Transmission 722.96 in model 216, 221 with 4MATICBolt, clamp of oil cooler oil line to engine oil pan	*BA27.55-P-1006-01D
19	Remove oil cooling line (7) with supply line (6)
20	Install in the reverse order
21	Check transmission oil level and correct if necessary		AR27.00-P-0270SYZ
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
22	Perform engine test run; when doing so, check transmission for oil leaks and that it is functioning correctly

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		MODEL 216.371/373/374/376/377/379	Model 216.386/394
BA22.10-P-1001-03C	Bolt, front engine mount to front axle carrier	Nm	35	28

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 221.02/05/07/095/12/15/17/195	Model 221.08/094/18/194
BA22.10-P-1001-03D	Bolt, front engine mount to front axle carrier	Nm	35	30

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 221.003/103
BA22.10-P-1001-03D	Bolt, front engine mount to front axle carrier	Nm	30

OIL COOLING

Number	Designation				Transmission 722.9
BA27.55-P-1002-01D	Bolt, transmission oil line to transmission housing	Banjo bolt	Stage 1	Nm	5
			Stage 2	∠	90
		Hexalobular bolt		Nm	12

OIL COOLING

Number	Designation		Transmission 722.9
BA27.55-P-1003-01D	Bolt, oil cooler oil line to engine oil pan	Nm	12

OIL COOLING

Number	Designation		Transmission 722.9
BA27.55-P-1005-01D	Bolt, clamp of oil cooler oil line to bracket	Nm	8

OIL COOLING

Number	Designation		Transmission 722.9
BA27.55-P-1006-01D	Bolt, clamp of oil cooler oil line to engine oil pan	Nm	8

OIL COOLING

Number	Designation		Transmission 722.9
BA27.55-P-1007-01D	Oil cooler oil line/oil supply line to transfer case	Nm	12

Fig 4: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
