Remove/install wheels, rotate if necessary - AP40.10-P-4050SX

Model 216

Model 221

Left illustration

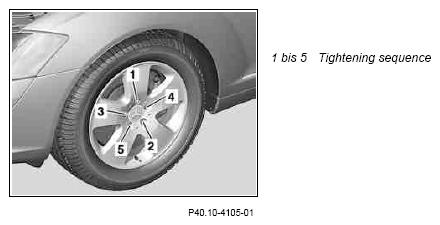

Fig 1: Identifying Wheels Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Right figure

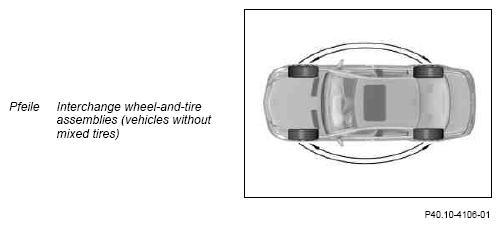

Fig 2: Identifying Wheels Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on tires/rims		AH40.10-P-9411-01A
	Remove
1	Raise vehicle with vehicle lift
			AR00.60-P-1000SX
2	Unfasten wheel bolts and wheels using wheel lift	Note modified wheel bolts for "17 inch" forged wheel (long wheel bolt).
	Check
3	Check tires for signs of damage and make sure that they are in good condition		AP40.10-P-4051Z
4	Clean and check wheel bolt connection components, then protect against corrosion		AP40.10-P-4050-01A
		Before mounting a wheel-and-tire assembly all  the operation steps listed in the linked description must be conducted carefully. The complete wheel can otherwise work its way loose from the vehicle.
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
	Install
5	Change round wheel-and-tire assemblies on front and rear axles	If necessary, subject to separate repair order and only for vehicles without mixed tires. Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased.
6	Mount wheels using wheel lift and tighten wheel bolts	Observe the tightening sequence (1 to 5) and tightening torque. Note modified wheel bolts for "17 inch" forged wheel (long wheel bolt).
		Bolt, disk wheel to wheel hub or flange	*BA40.10-P-1001-01L
7	Lower vehicle
8	Correct tire pressure of front and rear axle tires		AP40.15-P-4061A
		In the event of unusual tire pressure loss: ↓ Determine and rectify cause, subject to separate repair order.
9.1	Activate tire pressure loss warning	Model 216 Model 221 except code 475 (Tyre pressure monitoring system)
			AR54.30-P-1000-02RAW
		Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure.
9.2	Activate the tire pressure monitoring system	Model 216 Model 221 with code 475 (Tyre pressure monitoring system)
			AR54.30-P-1000-02RAS
		Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure.

WHEELS

Number	Designation		Model 216	Model 221
BA40.10-P-1001-01L	Bolt, disk wheel to wheel hub or flange	Nm	150	150

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DBL 6879.20	A 000 989 76 51
