Adjust rear-axle toe - AR40.20-P-0261SX

MODEL 216, 221.0/1

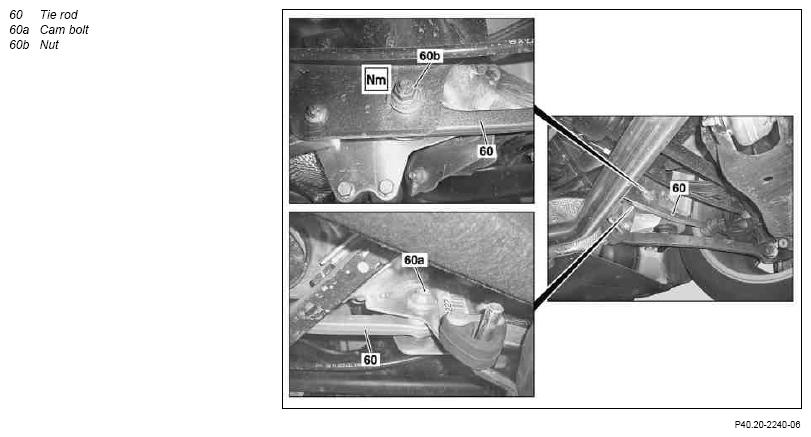

Fig 1: Identifying Tie Rod, Cam Bolt And Nut

G10110146

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

18.7.07	Overall toe-in at rear axle		*BE40.20-P-1001-10K
	Permitted difference between right and left side of vehicle for rear-axle toe.		*BE40.20-P-1002-10K

	Adjust
1	Loosen nut (60b)
2	Adjust toe with cam bolt (60a)	Overall toe-in at rear axle	*BE40.20-P-1001-10K
2	Adjust toe with cam bolt (60a)	Permitted difference between right and left side of vehicle for rear-axle toe If the test values are not attained, the tie rod (60) must be replaced.	*BE40.20-P-1002-10K
3	Tighten nut (60b)	Model 216	*BA35.20-P-1002-04H
3	Tighten nut (60b)	Model 221	*BA35.20-P-1002-04C

INSPECTION VALUES FOR TOE-IN AT REAR AXLE

Number	Designation		Model 216 except 4MATIC	Model 216 4MATIC
BE40.20-P-1001-10K	Overall toe-in at rear axle	∠°	0° 32' (±7')	0° 35' (±7')
BE40.20-P-1002-10K	Permissible difference in rear axle toe-in between right and left sides of the vehicle	∠°	7'	7'

INSPECTION VALUES FOR TOE-IN AT REAR AXLE

Number	Designation		Model 221 except (code Z07), except (code Z07+Z19), except 4MATIC, except engine 651	Model 221 with 4MATIC, with engine 651
BE40.20-P-1001-10K	Overall toe-in at rear axle	∠°	0° 30' (±7')	0° 28' (±7')
BE40.20-P-1002-10K	Permissible difference in rear axle toe-in between right and left sides of the vehicle	∠°	7'	7'

INSPECTION VALUES FOR TOE-IN AT REAR AXLE

Number	Designation		Model 221 with (code Z07), with (code Z07+Z19)
BE40.20-P-1001-10K	Overall toe-in at rear axle	∠°	0° 28' (±7')
BE40.20-P-1002-10K	Permissible difference in rear axle toe-in between right and left sides of the vehicle	∠°	7'

TIE ROD

Number	Designation		Model 221
BA35.20-P-1002-04C	Self-locking nut, track rod to rear axle carrier	Nm	80

TIE ROD

Number	Designation			Model 216
BA35.20-P-1002-04H	Self-locking nut, track rod to rear axle carrier	Stage 1	Nm	40
BA35.20-P-1002-04H	Self-locking nut, track rod to rear axle carrier	Stage 2	∠°	90
