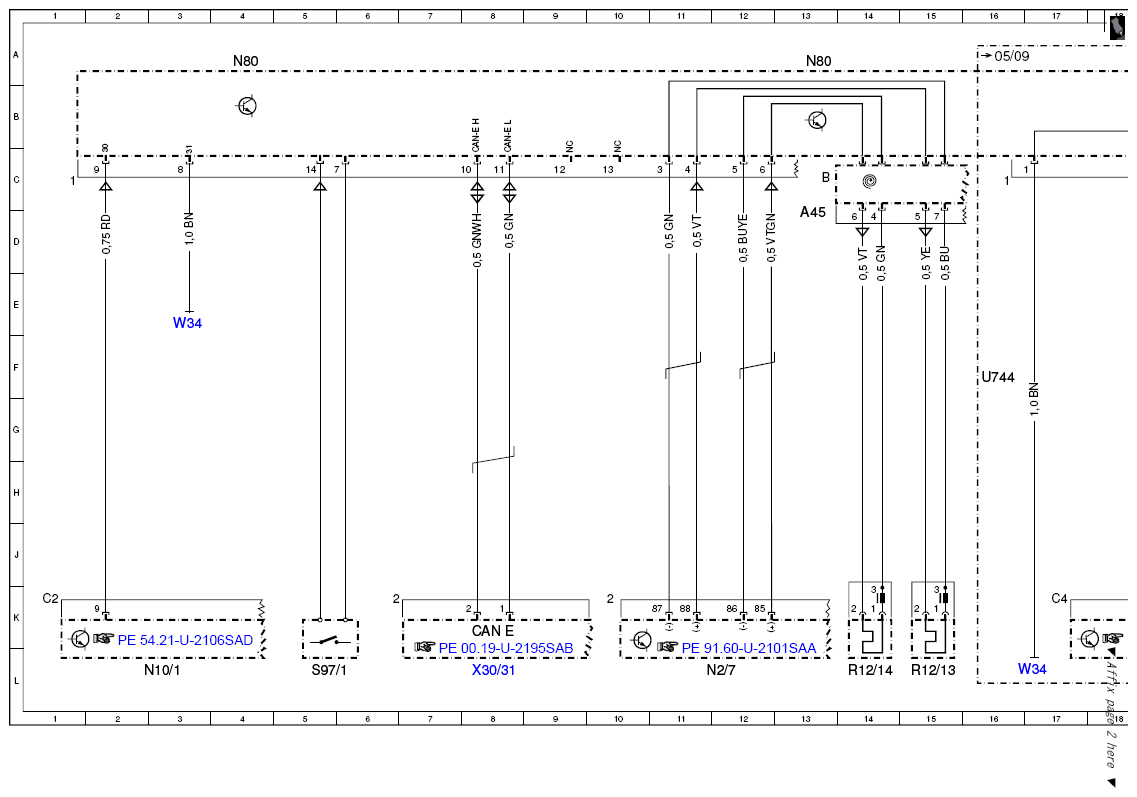

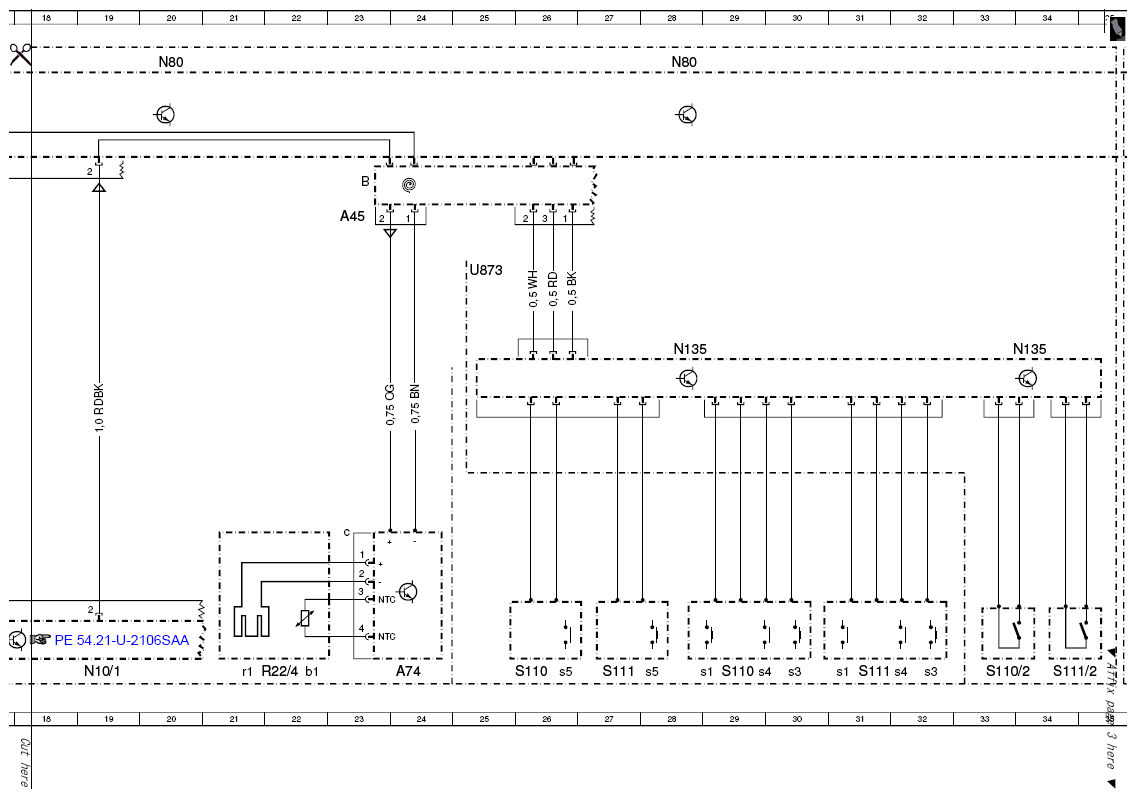

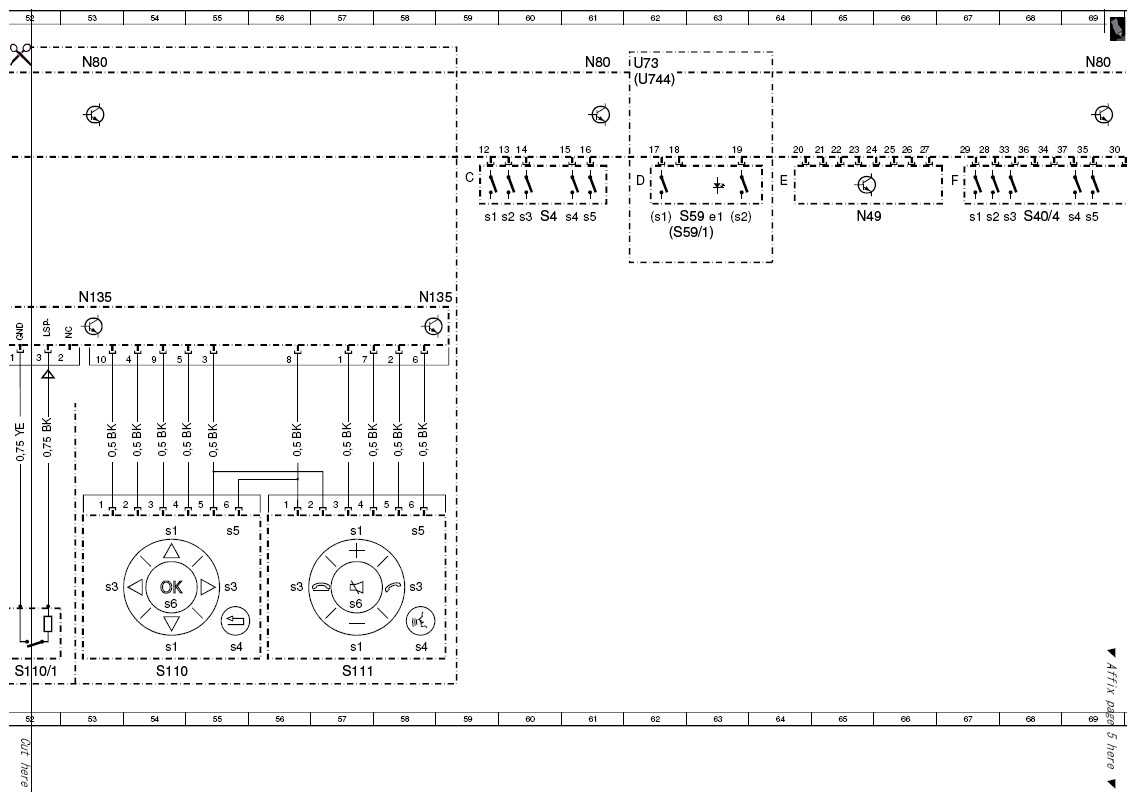

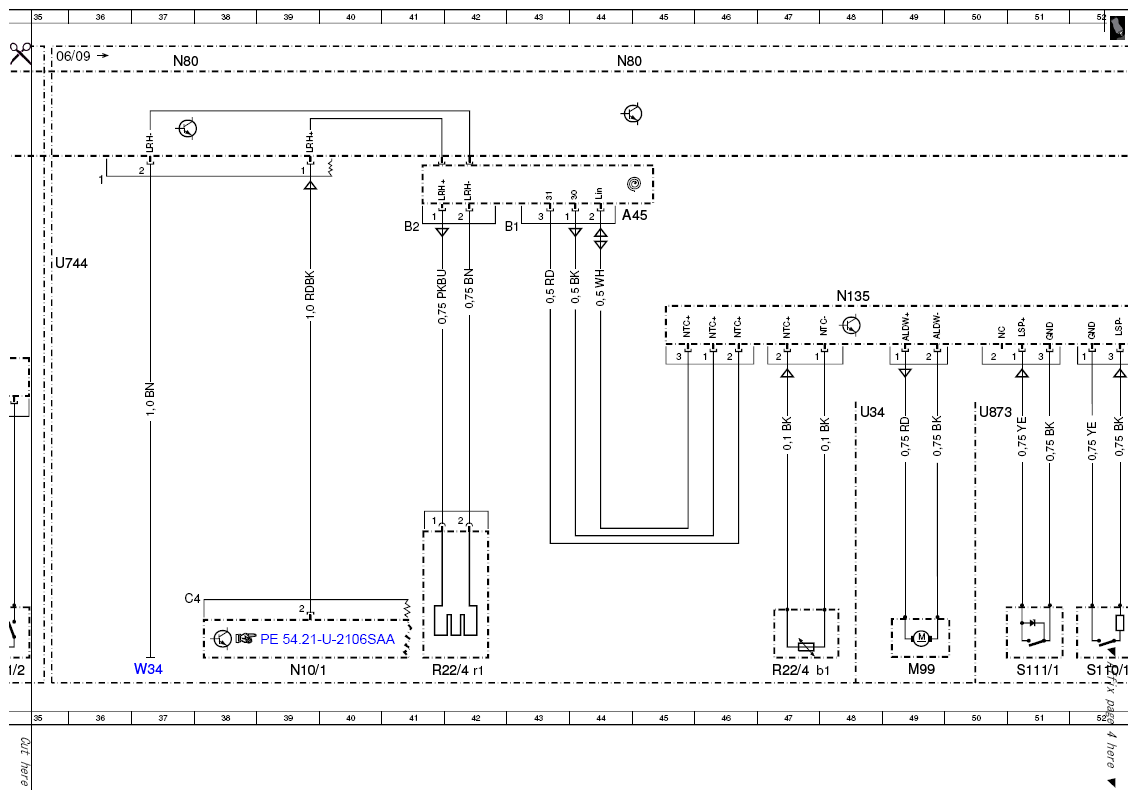

Wiring diagram steering column module control module - PE46.10-U-2101-97SAA
MODEL 221.0/1 Control Unit N80
| Code: | Designation: | Position: |
|---|---|---|
| A45 | Fanfare horns and airbag clock spring contact | 13D |
| A45 | Fanfare horns and airbag clock spring contact | 23D |
| A45 | Fanfare horns and airbag clock spring contact | 45D |
| A74 | Steering wheel heater electronics | 24L |
| CAN E | Chassis CAN | 8K |
| M99 | Steering wheel vibration motor | 49L |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1 | Front SAM control unit with fuse and relay module | 19L |
| N10/1 | Front SAM control unit with fuse and relay module | 39L |
| N135 | Steering wheel electronics | 48E |
| N135 | Steering wheel electronics | 53E |
| N135 | Steering wheel electronics | 34F |
| N135 | Steering wheel electronics | 28F |
| N135 | Steering wheel electronics | 58E |
| N2/7 | Restraint systems control unit | 12L |
| N49 | Steering angle sensor | 65D |
| N80 | Steering column module | 4A |
| N80 | Steering column module | 13A |
| N80 | Steering column module | 20A |
| N80 | Steering column module | 28A |
| N80 | Steering column module | 37A |
| N80 | Steering column module | 44A |
| N80 | Steering column module | 53A |
| N80 | Steering column module | 61A |
| N80 | Steering column module | 69A |
| R12/13 | Driver airbag ignition squib 1 | 15L |
| R12/14 | Driver airbag ignition squib 2 | 14L |
| R22/4 | Steering wheel heater | 22L |
| R22/4 | Steering wheel heater | 41L |
| R22/4 | Steering wheel heater | 47L |
| R22/4b1 | Heater coil temperature sensor | 22L |
| R22/4b1 | Heater coil temperature sensor | 47L |
| R22/4r1 | Heater coil | 21L |
| R22/4r1 | Heater coil | 42L |
| S110 | Left multifunction steering wheel button group | 29L |
| S110 | Left multifunction steering wheel button group | 26L |
| S110 | Left multifunction steering wheel button group | 54L |
| S110/1 | Steering wheel gear shifter MINUS | 52L |
| S110/2 | Left steering wheel gear shifter | 33L |
| S110s1 | Scroll forward/back button | 28L |
| S110s1 | Scroll forward/back button | 54L |
| S110s1 | Scroll forward/back button | 54J |
| S110s1 | Scroll forward/back button | 57L |
| S110s1 | Scroll forward/back button | 57J |
| S110s3 | System selection button | 30L |
| S110s3 | System selection button | 53K |
| S110s3 | System selection button | 55K |
| S110s3 | System selection button | 56K |
| S110s3 | System selection button | 58K |
| S110s4 | "Back" and SBS off button | 29L |
| S110s4 | "Back" and SBS off button | 55L |
| S110s4 | "Back" and SBS off button | 58L |
| S110s5 | Fanfare horn system button | 26L |
| S110s5 | Fanfare horn system button | 55J |
| S110s5 | Fanfare horn system button | 58J |
| S110s6 | OK button | 54K |
| S110s6 | OK button | 57K |
| S111 | Right multifunction steering wheel button group | 31L |
| S111 | Right multifunction steering wheel button group | 27L |
| S111 | Right multifunction steering wheel button group | 57L |
| S111/1 | Steering wheel gear shifter PLUS | 51L |
| S111/2 | Right steering wheel gear shifter | 34L |
| S111s1 | Buttons + and - for setting specific functions and volume control | 31L |
| S111s3 | Accept/terminate phone call button | 32L |
| S111s4 | VCS [SBS] on button | 32L |
| S111s5 | Fanfare horn system button | 28L |
| S16/13 | Gear selector switch DIRECT SELECT | 71D |
| S4 | Combination switch | 60D |
| S40/4 | CC [TPM] switch | 68D |
| S40/4r1 | DTR distance potentiometer | 70D |
| S40/4s1 | Resume from memory | 67D |
| S40/4s2 | Decelerate and set | 67D |
| S40/4s3 | Accelerate and set | 68D |
| S40/4s4 | Off | 69D |
| S40/4s5 | Control contact | 69D |
| S4s1 | Left and right turn signal switch | 59D |
| S4s2 | Headlamp flasher/high beam switch | 60D |
| S4s3 | Low beam switch | 60D |
| S4s4 | Windshield washer system switch | 61D |
| S4s5 | Wipe switch | 61D |
| S59 | Steering column adjustment switch | 63D |
| S59/1 | Steering column adjustment/steering wheel heater switch | 62D |
| S59/1e1 | Steering wheel heater function indicator lamp | 63D |
| S59/1s1 | Steering column adjustment raise/lower, forward/back switch | 62D |
| S59/1s2 | Steering wheel heater switch | 63D |
| S97/1 | Steering column adjustment lock indicator switch | 5L |
| U34 | Valid for automatic lane recognition | 48G |
| U504 | Valid for DTR | 70A |
| U73 | Valid for ESC [ELV] | 62A |
| U744 | Valid for steering wheel heater | 16F |
| U744 | Valid for steering wheel heater | 35D |
| U744 | Valid for steering wheel heater | 62A |
| U873 | Valid for steering wheel gear shift | 25E |
| U873 | Valid for steering wheel gear shift | 50G |
| W34 | Ground (left footwell) | 17L |
| W34 | Ground (left footwell) | 3E |
| W34 | Ground (left footwell) | 37L |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 8L |
