Remove/install track rod - AR46.40-P-0200IW

MODELS 220.083/084/087/183/184/187

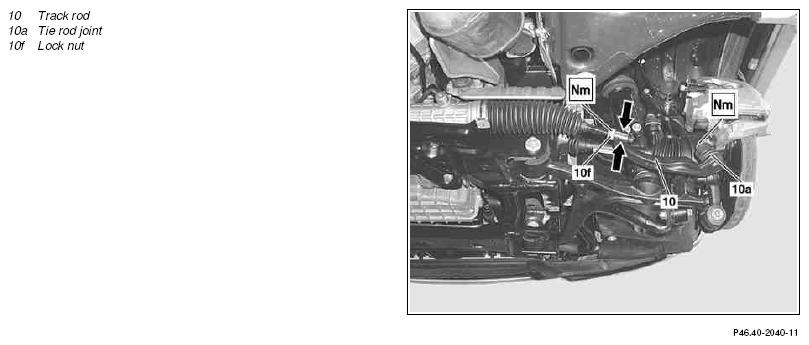

Fig 1: Identifying Track Rod Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

10.9.03

Reference to adjusting toe on front axle replaced by reference to chassis alignment check

Stage 5

	Remove/Install
	Risk of death  cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove front wheel
	Remove and install wheels		AP40.10-P-4050Z
2	Pry tie rod joint (10a) off steering knuckle		AR46.40-P-0200-02IW
		Thrust piece	Fig 2
		Puller	Fig 3
			*BA46.40-P-1001-01E
3	Loosen counter nut (10f) and unscrew tie rod (10)	Counterhold tie rod (10) for loosening the jam nut (10f) (arrows).
			*BA46.40-P-1002-01E
4	Install in the reverse order
5	Perform chassis alignment check		AR40.20-P-0200I

TRACK ROD

Number	Designation			Model 220.083/084/087/183/184/187
BA46.40-P-1001-01E	Self-locking nut, tie rod to steering knuckle	1st stage	Nm	55
		Step 2	∠°	-
BA46.40-P-1002-01E	Lock nut, tie rod to inner tie rod		Nm	60

Fig 2: Identifying Thrust Piece (140 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Puller (124 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
