Remove/install inner tie rod with axial joint - AR46.40-P-0201PW

MODEL 203.08/09/28/29, 211.08/09/28/29, 220.08/18

Shown on model 203

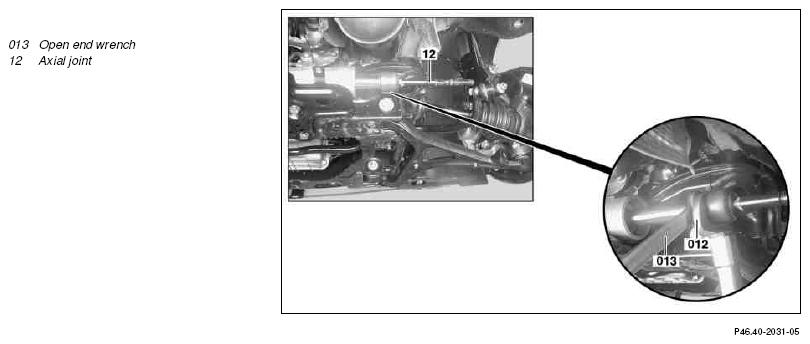

Fig 1: Identifying Inner Tie Rod With Axial Joint - Shown On Model 203

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bellows		AR46.40-P-0400PW
2	Counterhold rack using open wrench (013)
3	Remove inner track rod with axial joint (12)	Do not use force (hammer impact, strong lever action).
			*BA46.40-P-1003-01E
			Fig 2
4	Install in the reverse order

TIE ROD

Number	Designation		Models 203.081/084/087/092/281/284/287/292	Model 220.083/084/087/183/184/187	Model 211.08/09/28/29
BA46.40-P-1003-01E	Inner track rod with axial joint to rack-and-pinion joint	Nm	110	110	110

Fig 2: Identifying Open End Wrench (201 589 00 01 00)

Courtesy of MERCEDES-BENZ USA
