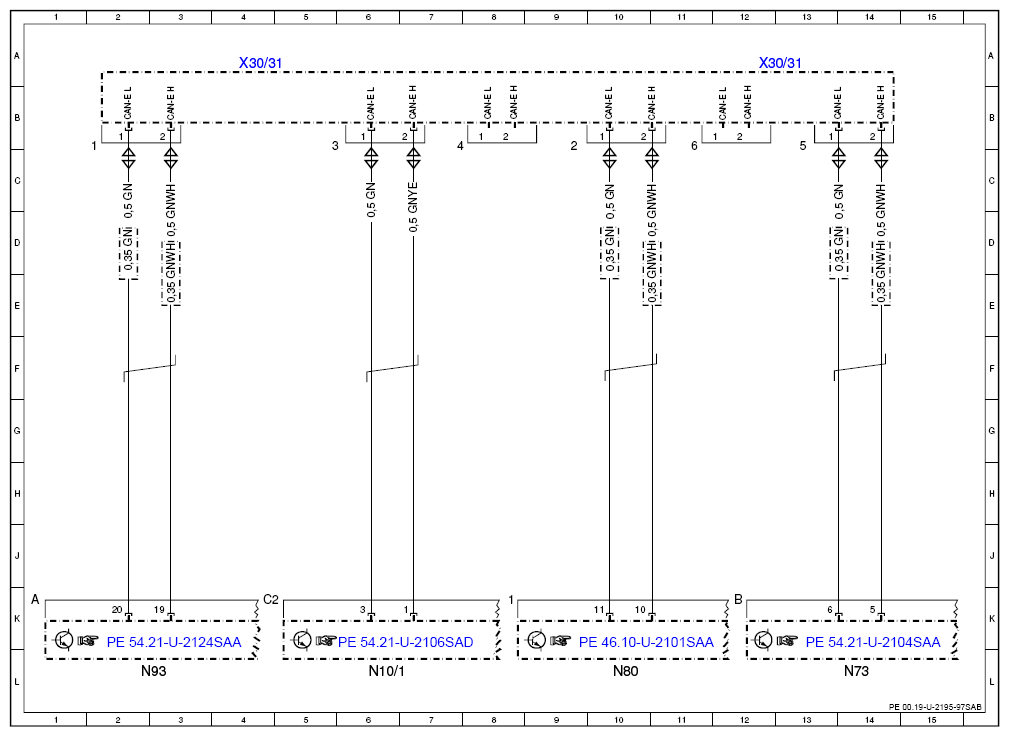

Wiring diagram for chassis CAN - PE00.19-U-2195-97SAB
| Code: | Designation: | Position: |
|---|---|---|
| N10/1 | Front SAM control unit with fuse and relay module | 6L |
| N73 | EIS [EZS] control unit | 14L |
| N80 | Steering column module | 10L |
| N93 | Central gateway control unit | 2L |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 12A |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 4A |
