Empty refrigerant circuit in refrigerator box, evacuate and recharge - AR86.61-P-1022SXS

Model 221.1 with code Z07 (Top protection) with refrigerator box

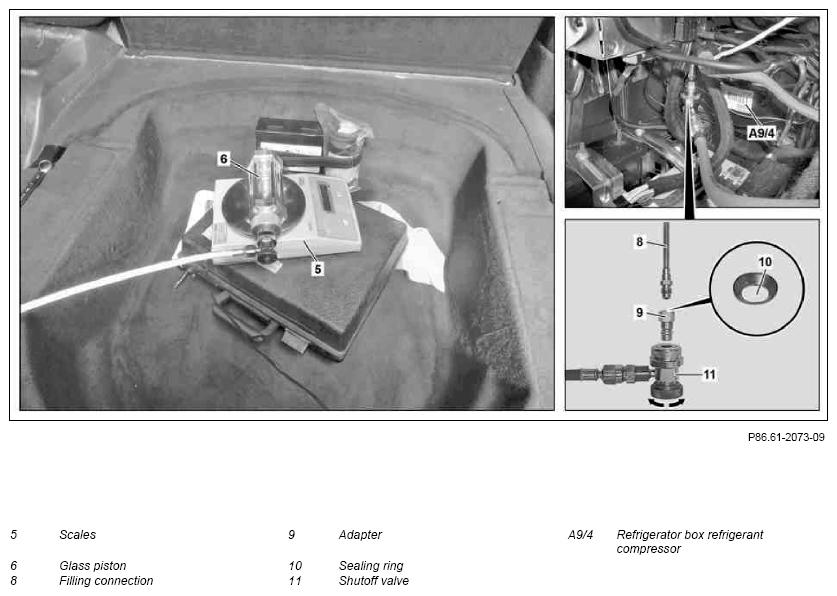

Fig 1: Identifying Refrigerant Circuit In Refrigerator Box Components

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by welding and soldering work on refrigerant circuit of refrigerator box. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near refrigerator box or compressor. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas.	AS86.61-Z-0001-02H
	Action if refrigerant circuit in refrigerator box is damaged		AH86.61-P-0002-01H
	Notes on handling components for refrigerant circuit in refrigerator box		AH86.61-P-0004-01H
	Notes on handling R134a refrigerant		AH86.61-P-0003-01H
	Draining
1	Remove left side paneling in trunk		AR68.30-P-4600SXS
2	Unscrew cap from filler connection (8)
3	Insert sealing ring (10) into adapter (9) and screw onto filling connection (8)	Hold filler connection (8) when screwing on adapter (9). Otherwise the refrigerator box refrigerant compressor (A9/4) can be damaged. The adapter (9) is available as replacement part with sealing ring (10) and new cap. The adapter (9) remains on the filling connection (8) after filling the refrigerator box and is not unscrewed again.
4	Connect glass piston (6) between charging equipment and refrigerator circuit of refrigerator box	The glass piston (6) is a commercially available air conditioning diagnostic tool from the Forch company.
5	Connect charging equipment to adapter (9) and evacuate refrigerator box refrigerant circuit (recycle)	Use short shutoff valve (11). See unit manufacturer's operator's manual.
6	Lay glass piston (6) down on suitable scale (5)	The scale (5) should be in the vehicle. Otherwise the measurement results can be faulty. Use a scale (5) with a precision of 1 g.
	Evacuate
7	Evacuate refrigerant circuit of refrigerator box with charging equipment
	000 588 04 82 00 Air conditioning service unit		WS83.00-P-0031B
		See unit manufacturer's operator's manual.
	Filling
8	Charge refrigerant circuit in refrigerator box		AR86.61-P-1001-01H
	000 588 04 82 00 Air conditioning service unit		WS83.00-P-0031B
9	Disconnect charging equipment from adapter (9) and screw on new cap
10	Check cooling output of refrigerator box		AR86.61-P-1023SXS
11	Check refrigerant circuit for leaks
