Notes on replacing plastic welded components of door panel - AH72.00-P-0001-01A
WARNING: This page does not describe the selected car, but rather 200 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz S65 AMG, 2019 Mercedes-Benz SLC300, 2019 Mercedes-Benz SL63 AMG, and 2019 Mercedes-Benz SL550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166.0/8 without CODE Z04 (Light armoring) without CODE Z05 (B5 armoring on special protection version)
MODEL 292

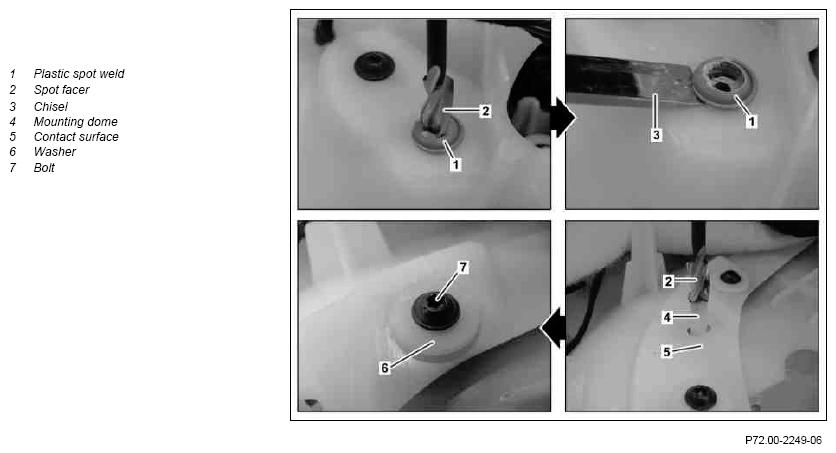

The following notes must be observed when replacing plastic welded components of the door panel:
- Use commercially available cordless drill/driver.
- Use drill bit with diameter 3.5 mm.
- Use spot facer (2) M4 as per DIN 373 with head diameter 8 mm and pilot diameter 3.3 mm.
- Use chisel (3) with a blade width of 10 mm, according to DIN 5139.
- Perform the drilling and milling process at high rpm and with low feed rate.
- Predrill the center of the plastic spot weld (1), into which plastic flowed during the welding process, so that the spot facer (2) can be guided via its pilot.
- Cut out plastic spot weld (1) with spot facer (2).
- Remove any remaining residues of the plastic spot weld (1) with the chisel (3).
- Mill off the mounting dome (4) of the new part inserted into the door panel with the spot facer (2) so that it is flush with the level of the contact surface (5).
- Fasten new part with washer (6) and screw/bolt (7) from door panel repair kit.
