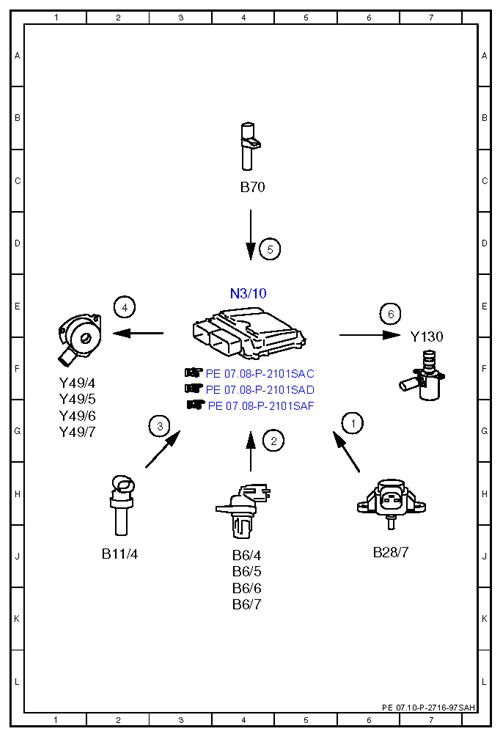

| 1 |
Engine load, signal |
6G |
| 2 |
Camshaft Hall sensor, signal |
4G |
| 3 |
Coolant temperature sensor, signal |
3G |
| 4 |
Camshaft solenoids, actuation |
2E |
| 5 |
Engine speed, signal |
4D |
| 6 |
Engine oil pump valve, actuation |
6E |
| B11/4 |
Coolant temperature sensor |
2J |
| B28/7 |
Pressure sensor downstream of throttle valve actuator |
6J |
| B6/4 |
Left intake camshaft Hall sensor |
4J |
| B6/5 |
Right intake camshaft Hall sensor |
4J |
| B6/6 |
Left exhaust camshaft Hall sensor |
4K |
| B6/7 |
Right exhaust camshaft Hall sensor |
4K |
| B70 |
Crankshaft Hall sensor |
4C |
| N3/10 |
ME-SFI [ME] control unit |
4E |
| Y130 |
Engine oil pump valve |
7F |
| Y49/4 |
Left intake camshaft solenoid |
1F |
| Y49/5 |
Right intake camshaft solenoid |
1G |
| Y49/6 |
Left exhaust camshaft solenoid |
1G |
| Y49/7 |
Right exhaust camshaft solenoid |
1G |
