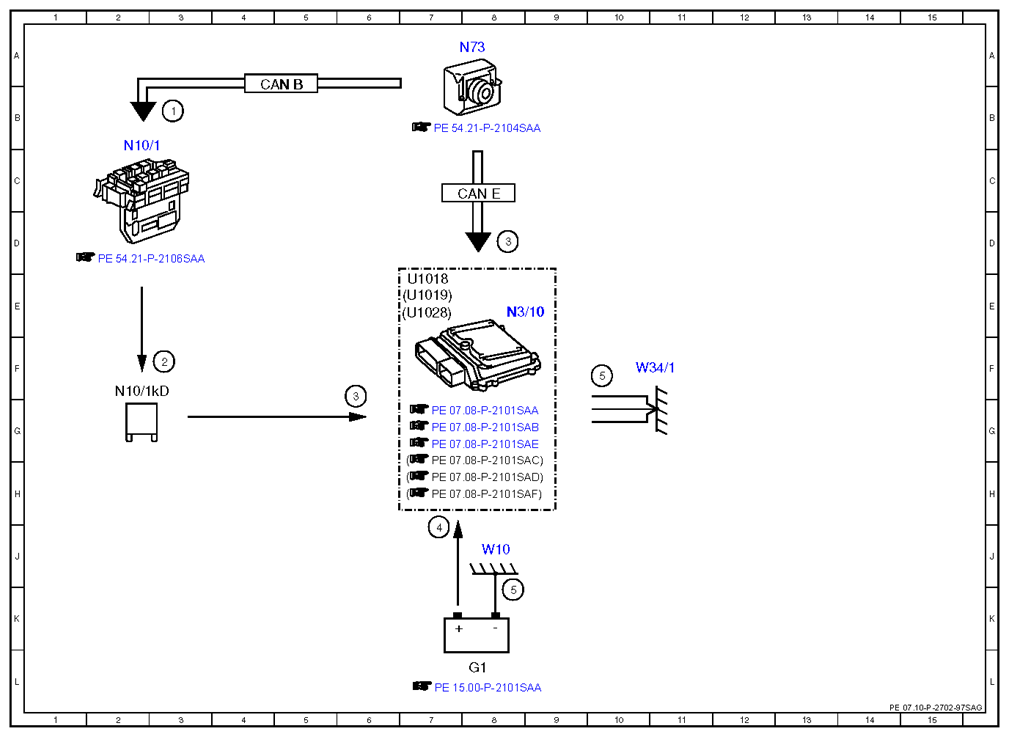

| 1 |
Circuit 15, request OFF |
3B |
| 2 |
Circuit 15 relay, actuation OFF |
3F |
| 3 |
Circuit 15, status OFF |
6G |
| 3 |
Circuit 15, status OFF |
8D |
| 4 |
Circuit 30, status |
7J |
| 5 |
Circuit 31, status |
8K |
| 5 |
Circuit 31, status |
10F |
| CAN B |
Interior CAN |
4B |
| CAN E |
Chassis CAN |
8C |
| G1 |
On-board electrical system battery |
8L |
| N10/1 |
Front SAM control unit with fuse and relay module |
2C |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
2F |
| N3/10 |
ME-SFI [ME] control unit |
8E |
| N73 |
EIS [EZS] control unit |
8A |
| U1018 |
Valid for gasoline engine 276 |
7E |
| U1019 |
Valid for engine 278 |
7E |
| U1028 |
Valid for engine 157 |
7E |
| W10 |
Ground (battery) |
8J |
| W34/1 |
Ground (electronics - left footwell) |
10F |
