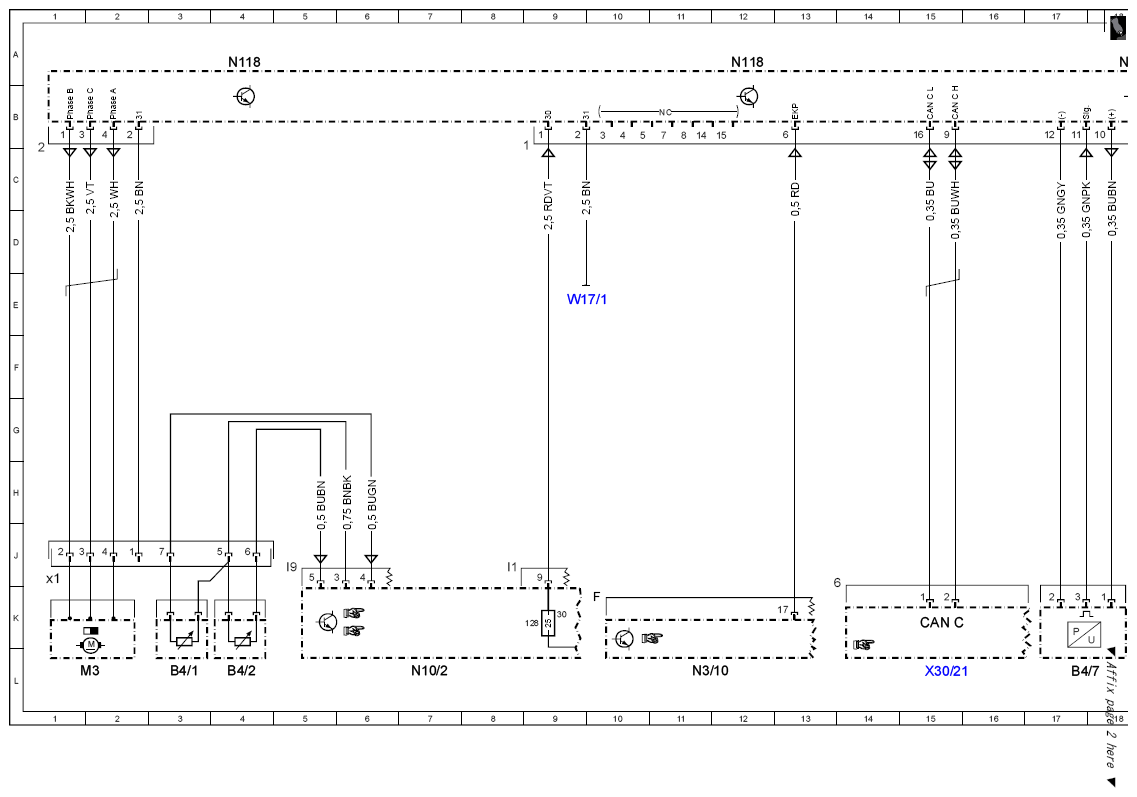

| B4/1 |
Left fuel level sensor |
3L |
| B4/1x1 |
Left tank half fuel level sensor connector |
1J |
| B4/2 |
Right fuel level sensor |
4L |
| B4/7 |
Fuel pressure sensor |
17L |
| CAN C |
Drive train CAN |
15K |
| M3 |
Fuel pump (FP) |
2L |
| N10/1 |
Front SAM control unit with fuse and relay module |
20L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7L |
| N10/2f128 |
Fuse 128 |
9K |
| N10/2f128 |
Fuse 128 |
19K |

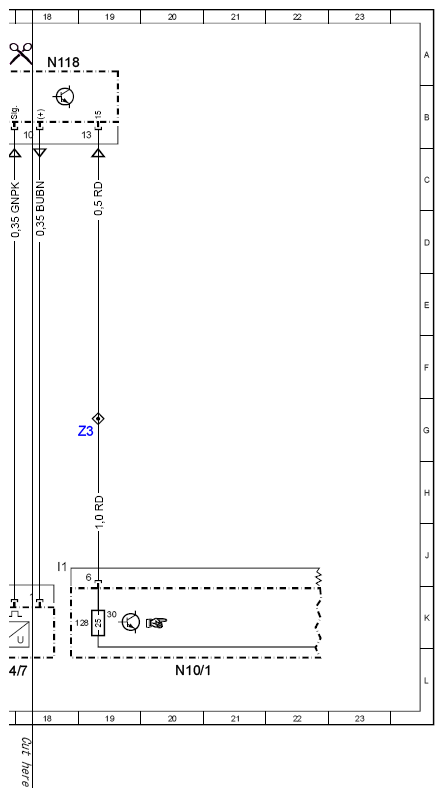

| N118 |
Fuel pump control unit |
4A |
| N118 |
Fuel pump control unit |
12A |
| N118 |
Fuel pump control unit |
18A |
| N3/10 |
ME-SFI [ME] control unit |
11L |
| W17/1 |
Ground (left rear seat) |
9E |
| X30/21 |
Drive train CAN voltage distributor connector |
15L |
| Z3 |
Tml. 15 connector sleeve |
19G |
