Wiring diagram of data link connector/diagnostic socket - PE54.22-U-2000-97SAA

Code: Designation: Position:
N10/1 Front SAM control unit with fuse and relay module 3L
N93 Central gateway control unit 7L
W34 Ground (left footwell) 3E
X11/4 Data link connector 4A

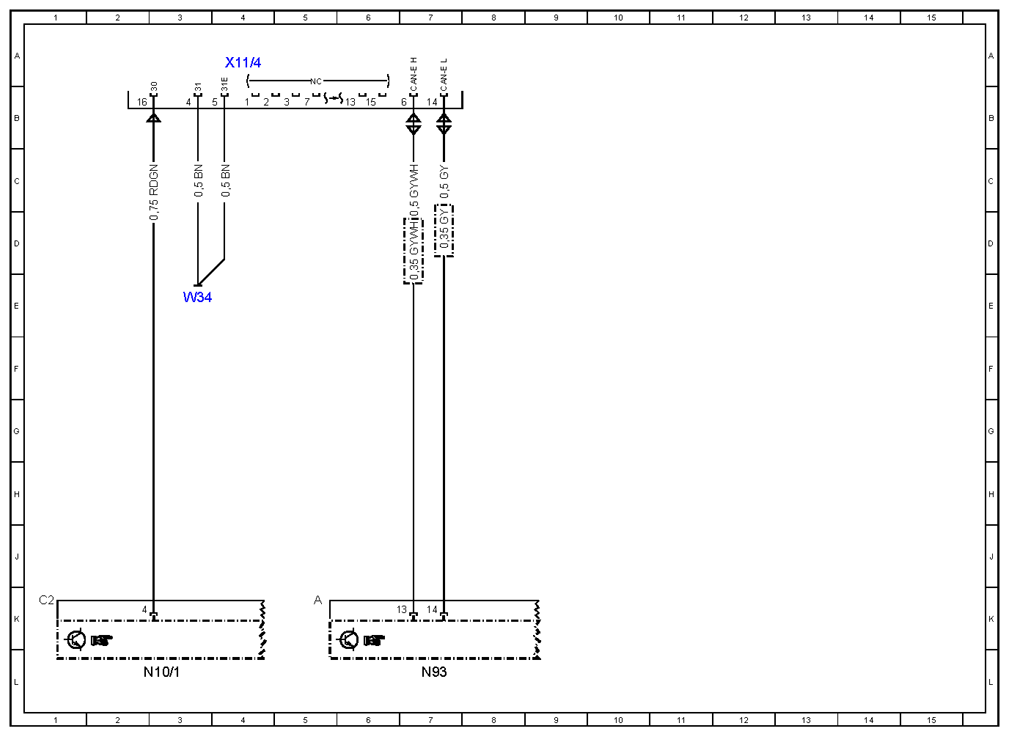

Fig 1: Data Link Connector/Diagnostic Socket - Wiring Diagram
G10127972Courtesy of MERCEDES-BENZ USA
