Remove/install brake booster vacuum line - AR43.10-P-0355SXH
MODEL 221.095/195 with ENGINE 272.974
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Push down brake pedal several times | ||
| 3 | Open engine hood | ||
| 4 | Remove air filter housing | AR09.10-P-1150SX | |

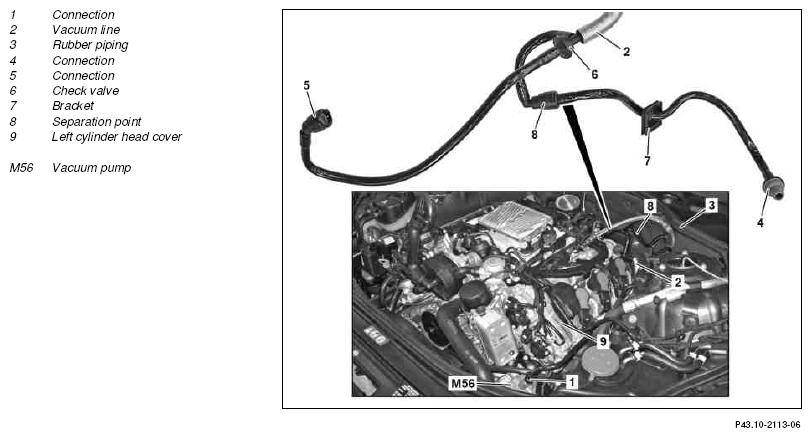

| 5 | Detach connection (1) of vacuum line (2) from vacuum pump (M56) | ||
| 6 | Detach retaining clamp of vacuum line (2) from left cylinder head cover (9) | *BA01.30-P-1004-01O | |
| 7 | Remove cable straps (3 ea.) of vacuum line (2) and holding clip for holder | ||
| 8 | Loosen rubber piping (3) from firewall and place to one side | ||
| 9 | Detach connector (4) of vacuum line (2) from brake booster | ||
| 10 | Detach connector (5) of vacuum line (2) from intake manifold | ||
| 11 | Pull holder (7) for vacuum line (2) out of firewall | ||
| 12 | Remove vacuum line (2) from engine compartment | ||
| Checking | |||
| 13 | Check vacuum line's (2) check valve (6) | AR43.10-P-0023SX | |
| 14 | Install in the reverse order |
CYLINDER HEAD
| Number | Designation | Engine 272 | |||
|---|---|---|---|---|---|
| BA01.30-P-1004-01O | Bolt, cylinder head cover to cylinder head | M7 | Stage 1 | Nm | 12 |
| Stage 2 | ∠° | 90 | |||
