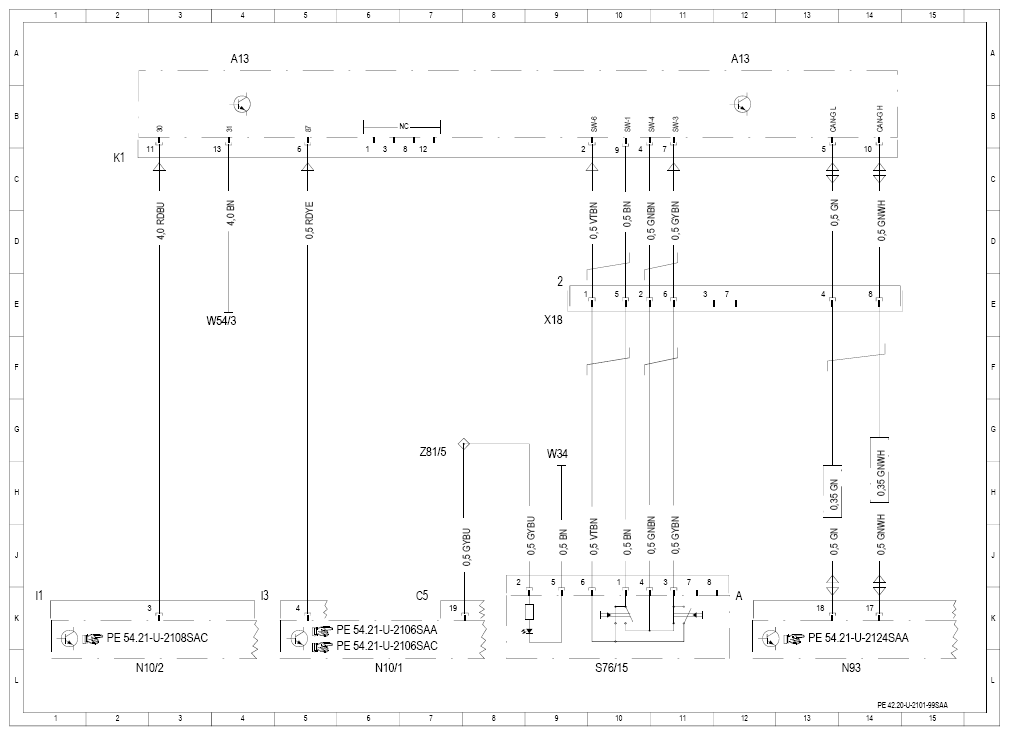

Wiring diagram for electric parking brake - PE42.20-U-2101-99SAA
| Code: | Designation: | Position: |
|---|---|---|
| A13 | Electric parking brake control unit | 4 A |
| A13 | Electric parking brake control unit | 12 A |
| N10/1 | Front SAM control module with fuse and relay module | 6 L |
| N10/2 | Rear SAM control module with fuse and relay module | 2 L |
| N93 | Central gateway control module | 14 L |
| S76/15 | Electric parking brake switch | 10 L |
| W34 | Ground (left footwell) | 9 H |
| W54/3 | Ground (left rear wheelhouse) | 3 E |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 9 E |
| Z81/5 | Circuit 58d COC connector sleeve | 7 H |
