Bleed brake system - AR42.10-P-0010I
MODEL 215, 220

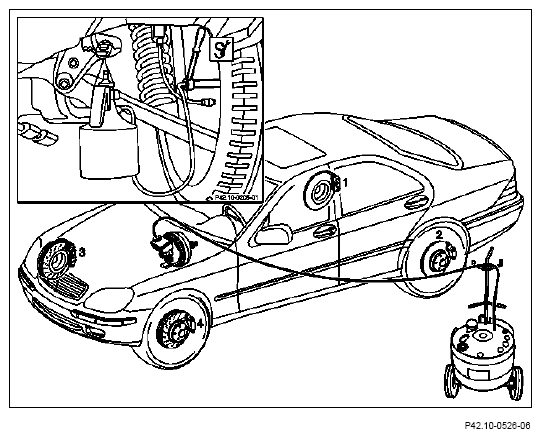

Sequence of bleeding operation for brake calipers with one bleed screw, shown on model 220.
Sequence of bleeding operation for 8-piston brake calipers at front axle with two bleed screws
Observe different sequence of bleeding operation for left-hand and right-hand drive vehicles.
MODIFICATION NOTES
| 11.8.05 | Bleed screw on rear axle fixed brake caliper | Model 215.379 |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on handling brake fluid | AH42.50-P-0001-01A | ||
| Notes on externally invisible brake fluid loss | AH42.10-P-9406-02A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 1 | Connect filling and bleeding device | Brake fluid change unit gotis://B_42/43.2_01 |
|
| *BF42.10-P-1001-01A | |||
| 2 | Carrying out bleeding operation | AR42.10-P-0010-02I | |
| *BA42.10-P-1002-10G | |||
| *BA42.10-P-1002-12G | |||
| Fig 3 | |||
| 3 | Install in the reverse order | ||
| 4 | Inspect fluid level in brake fluid reservoir, adjust to correct level if necessary | *BF42.10-P-1001-01A |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 215 | |
|---|---|---|---|
| BA42.10-P-1002-10G | Bleed screw to brake caliper | Nm | 7 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 220 except model 08/18/074/174/179, model 220 without special protection | Model 220 with special protection, Model 220.08/18/074/174/179 | |
|---|---|---|---|---|
| BA42.10-P-1002-10G | Bleed screw to brake caliper | Nm | 7 | 14 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 215 except 215.374 | Model 215.374 | |
|---|---|---|---|---|
| BA42.10-P-1002-12G | Bleed screw to brake caliper | Nm | 7 | 14 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 220 without special protection, except model 074/174 | Model 220 with special protection, Model 220.074/174 | |
|---|---|---|---|---|
| BA42.10-P-1002-12G | Bleed screw to brake caliper | Nm | 7 | 14 |
BRAKE FLUID
| Number | Designation | Model 215 | Model 220 | ||
|---|---|---|---|---|---|
| BF42.10-P-1001-01A | Brake fluid | Filling capacity | Liters | ≈0.7...0.9 | ≈0.7...0.9 |
| Specifications for Operating Fluids | Specification | BB00.40-P-0330-01A | BB00.40-P-0330-01A | ||
| Sheet | BB00.40-P-0331-00A | BB00.40-P-0331-00A | |||
