Adaptive Brake (ABR) location of components - GF42.47-P-0001-02LE

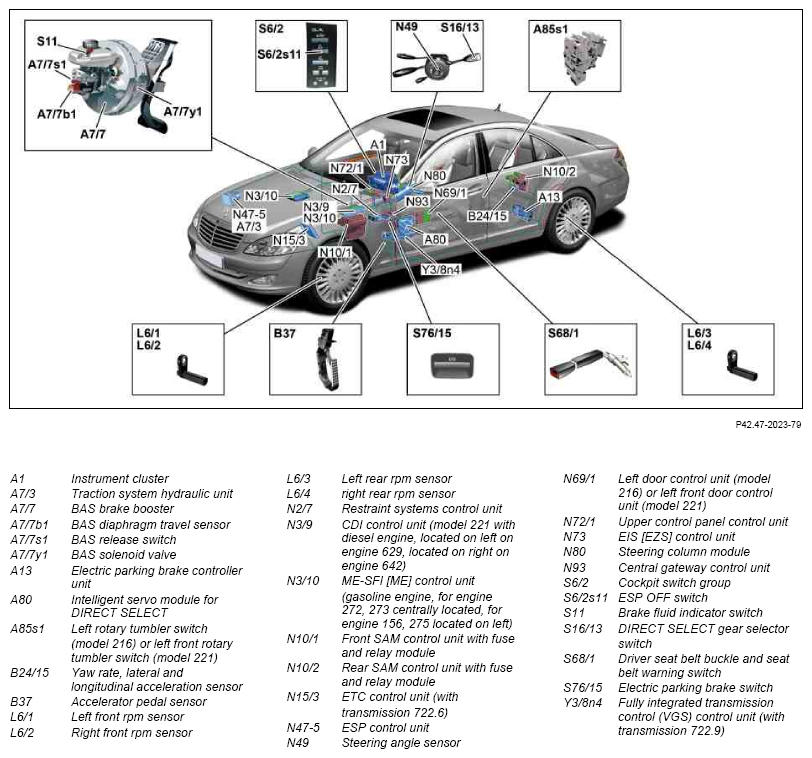

Fig 1: Overview Of Adaptive Brake (ABR) Components - Shown On Model 221.0

G10110298

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0
