Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03LEA

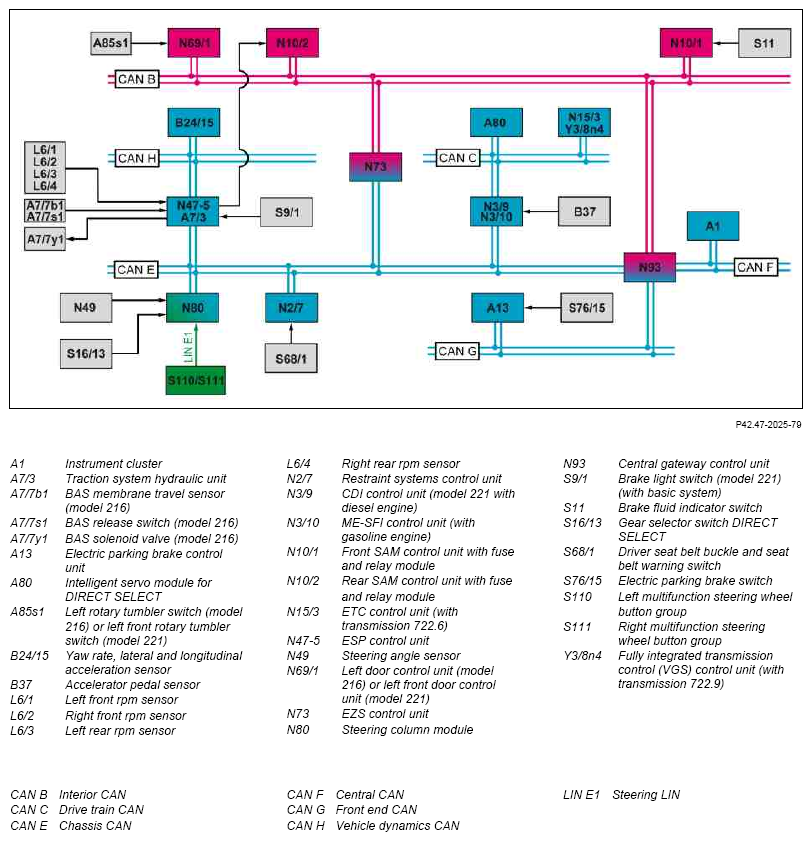

Fig 1: Adaptive Brake (ABR) - Block Diagram

Courtesy of MERCEDES-BENZ USA

Shown up to 31.8.10

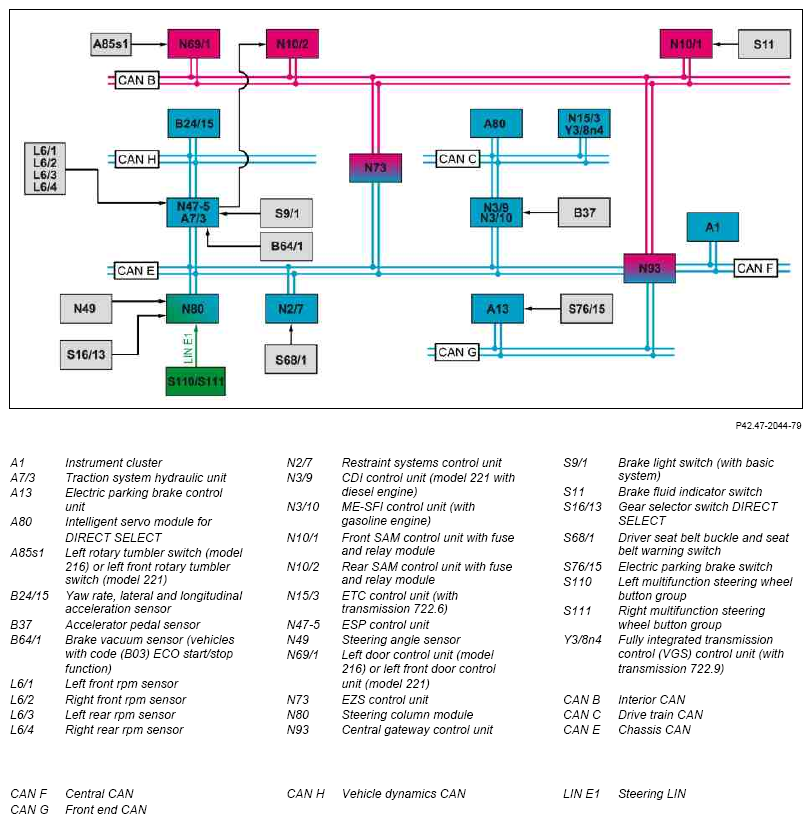

Fig 2: Adaptive Brake (ABR) - Block Diagram

Courtesy of MERCEDES-BENZ USA

Shown as of 1.9.10
