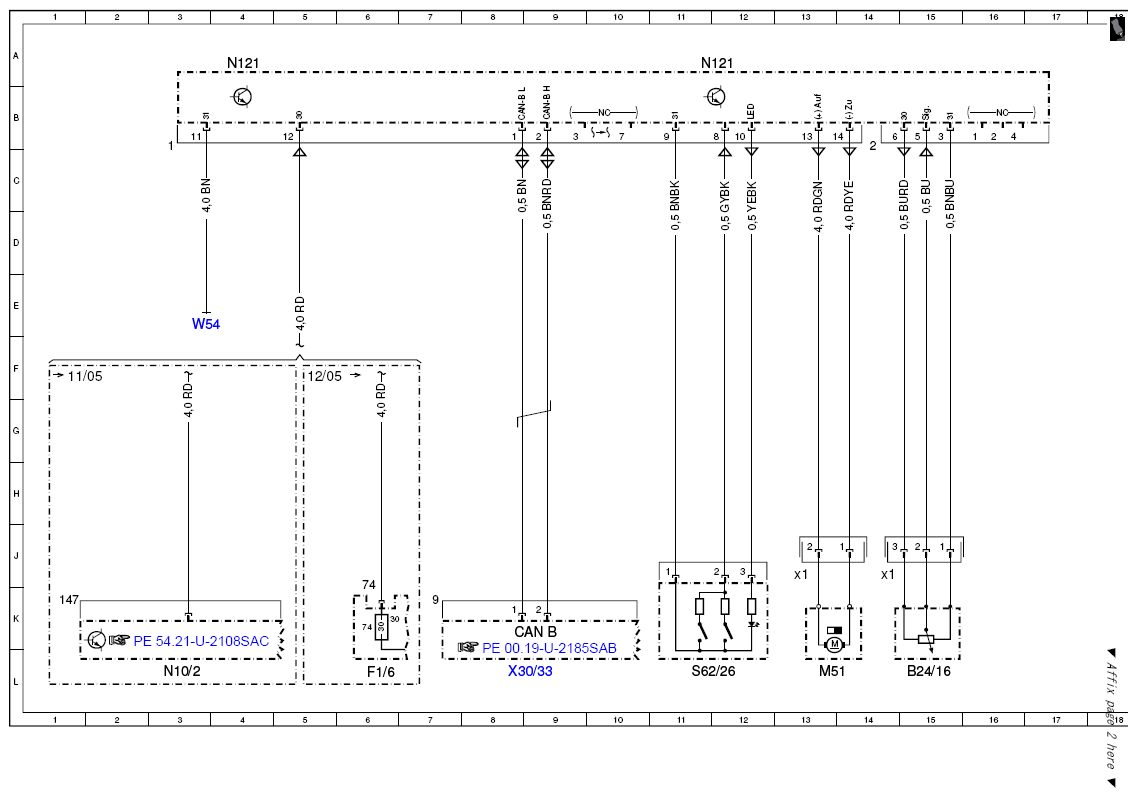

Wiring diagram of remote trunk locking control module - PE72.30-U-2101-97SAA
| Code: | Designation: | Position: |
|---|---|---|
| B24/16 | Trunk lid position sensor | 15L |
| B24/16x1 | Trunk lid position sensor connector | |
| CAN B | Interior CAN | 9K |
| F1/6 | Right instrument panel fuse box | 6L |
| F1/6f74 | Fuse 74 | 6K |
| M51 | TLC [HDS] hydraulic pump | 13L |
| M51x1 | TLC [HDS] hydraulic pump connector | 13J |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N121 | TLC [HDS] control unit | 4A |
| N121 | TLC [HDS] control unit | 11A |
| S62/26 | TLC [HDS] button | 11L |
| W54 | Ground (right rear wheelhouse) | 3E |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | 8L |
