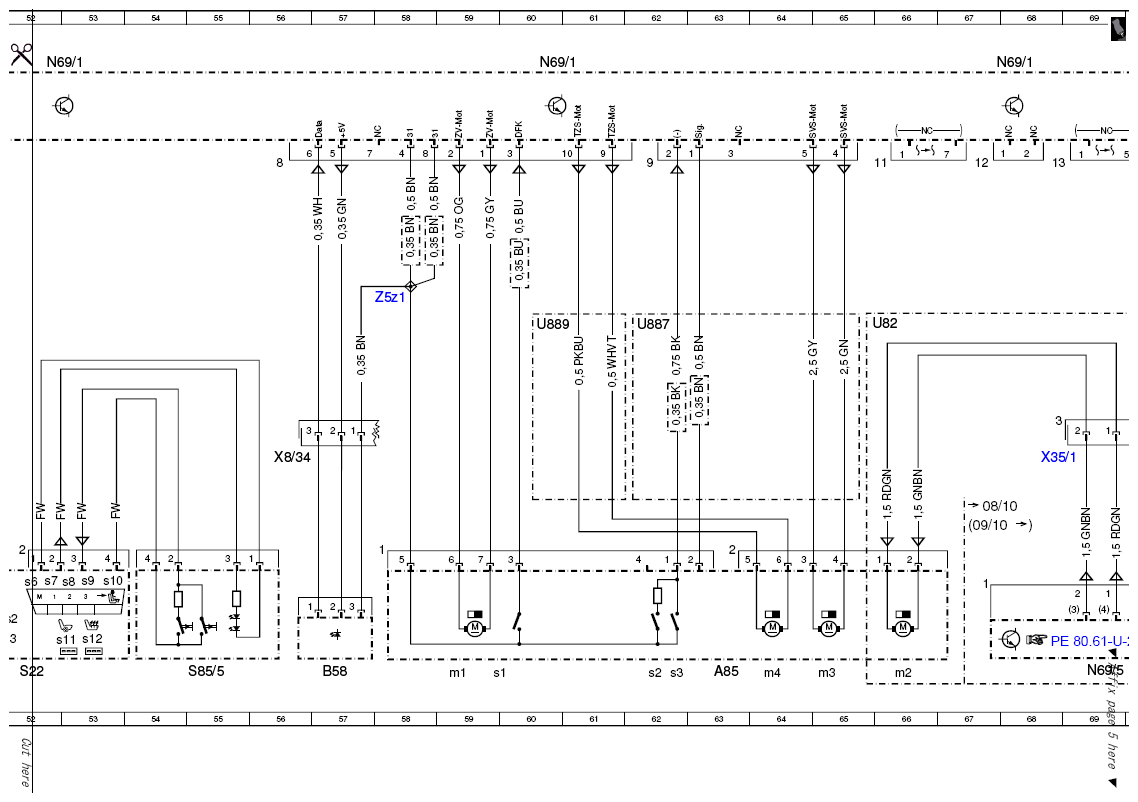

| A85 |
Left front door lock unit |
63L |
| A85m1 |
Left front CL [ZV] motor |
59L |
| A85m2 |
Left front opening assist motor |
66L |
| A85m3 |
Left front power closing motor |
65L |
| A85m4 |
Left front door additional lock motor |
64L |
| A85s1 |
Left front rotary tumbler switch |
59L |
| A85s2 |
Left front drive lock pawl switch |
62L |
| A85s3 |
Left front safety limit switch |
62L |
| B58 |
Driver door infrared sensor |
57L |
| CAN B |
Interior CAN |
10K |
| E17/11 |
Left front door inside handle illumination |
39L |
| E17/11 |
Left front door inside handle illumination |
43L |

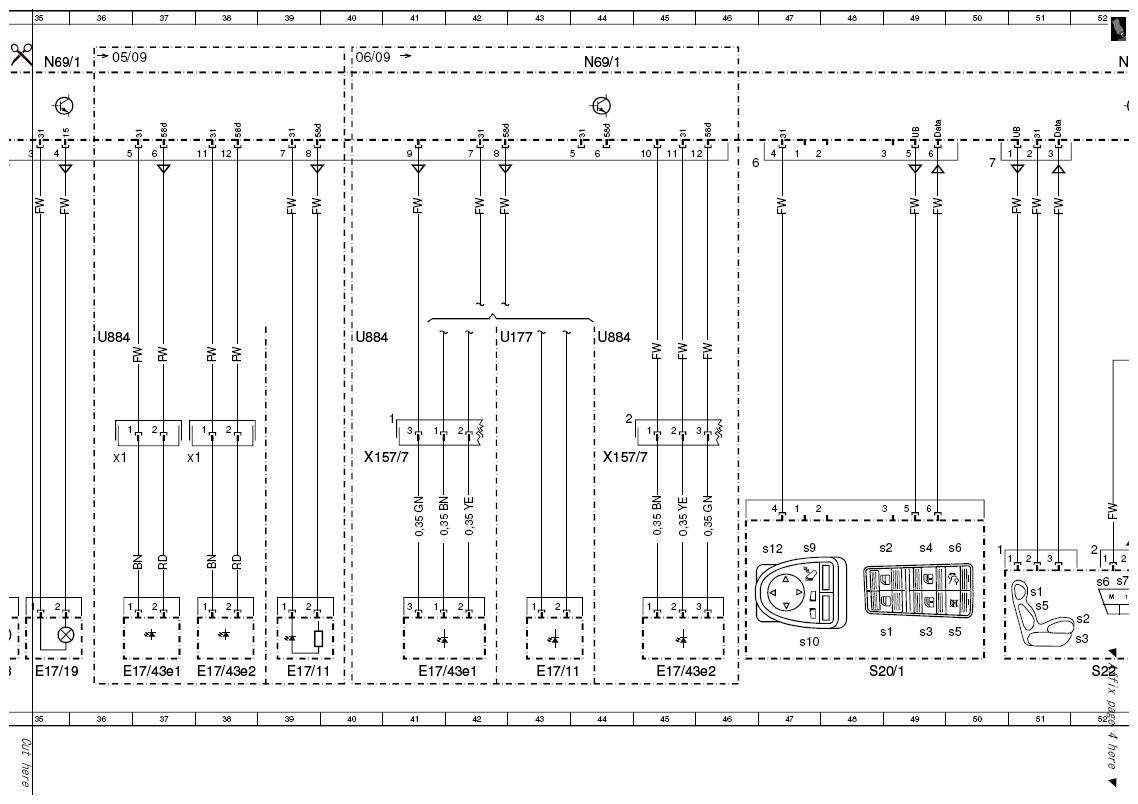

| E17/19 |
Front left door warning lamp |
35L |
| E17/3 |
Left front door entrance/exit lamp |
34L |
| E17/43e1 |
Left door trim strip illumination, lamp 1 |
37L |
| E17/43e1 |
Left door trim strip illumination, lamp 1 |
41L |
| E17/43e1x1 |
Left door trim strip illumination connector, lamp 1 |
|
| E17/43e2 |
Left door trim strip illumination, lamp 2 |
38L |
| E17/43e2 |
Left door trim strip illumination, lamp 2 |
45L |
| E17/43e2x1 |
Left door trim strip illumination connector, lamp 2 |
|

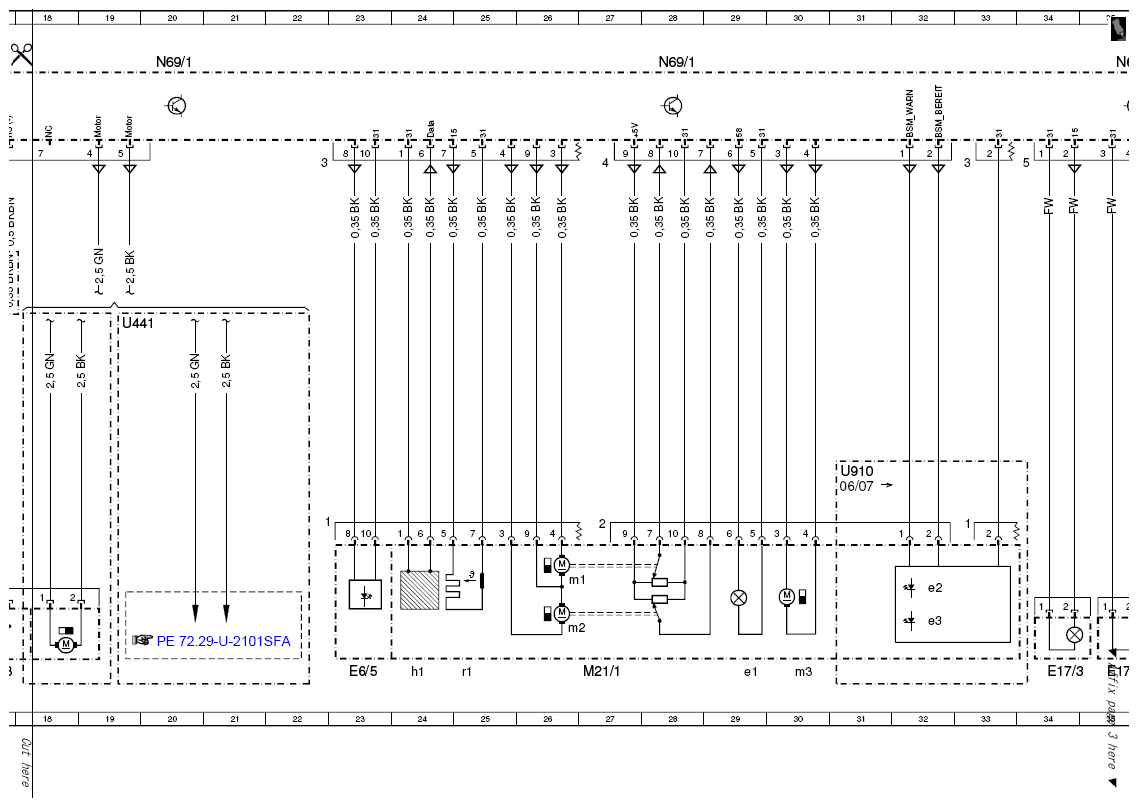

| E6/5 |
Left outside mirror turn signal lamp |
23L |

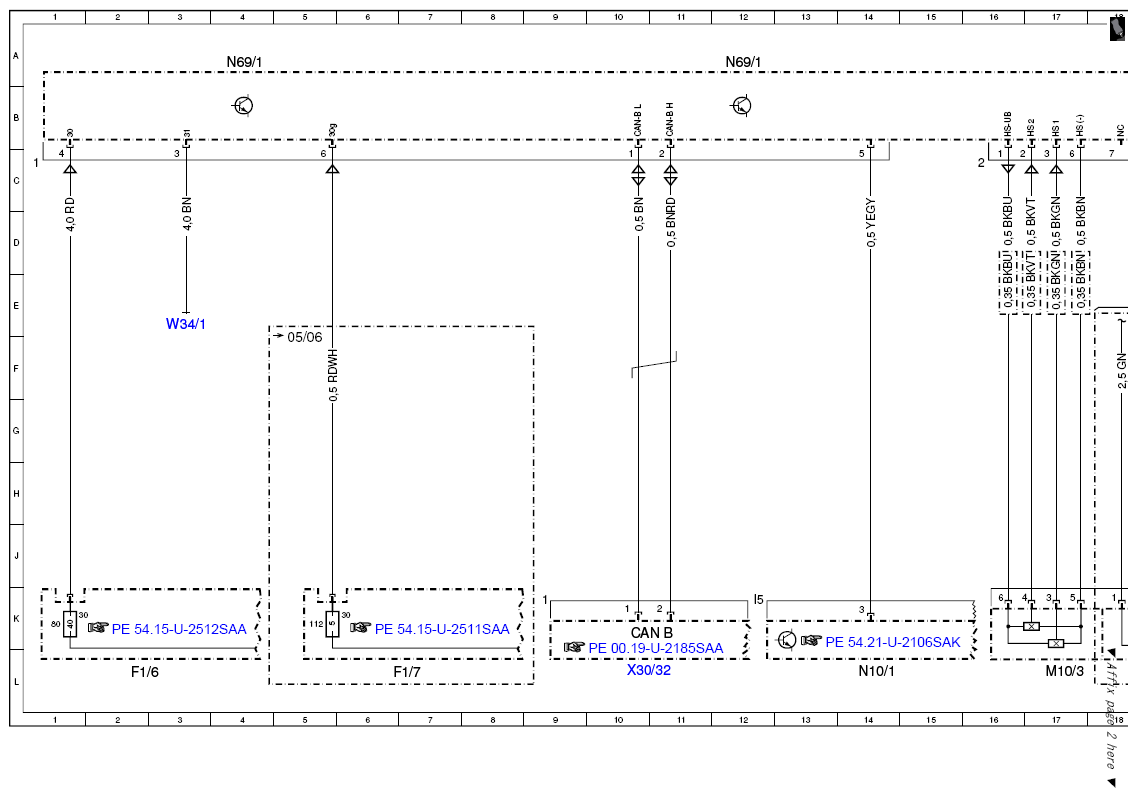

| F1/6 |
Right instrument panel fuse box |
2L |
| F1/6f80 |
Fuse 80 |
1K |
| F1/7 |
Left instrument panel fuse box |
7L |
| F1/7f112 |
Fuse 112 |
5K |
| M10/3 |
Left front power window motor |
17L |
| M21/1 |
Left electrically adjustable and heated outside mirror |
27L |
| M21/1e1 |
Left outside mirror ambient lamp |
29L |
| M21/1e2 |
Left Blind Spot Assist readiness and warning indicator |
32K |
| M21/1e3 |
Left blind spot assist indicator lamp |
32K |
| M21/1h1 |
Automatic dimming mirror |
24L |
| M21/1m1 |
Mirror up/down adjustment motor |
|
| M21/1m2 |
Mirror in/out adjustment motor |
|
| M21/1m3 |
Mirror fold-in motor |
|
| M21/1r1 |
Mirror heater |
25L |
| N10/1 |
Front SAM control unit with fuse and relay module |
14L |
| N69/1 |
Left front door control unit |
28A |
| N69/1 |
Left front door control unit |
4A |
| N69/1 |
Left front door control unit |
12A |
| N69/1 |
Left front door control unit |
20A |
| N69/1 |
Left front door control unit |
35A |
| N69/1 |
Left front door control unit |
52A |
| N69/1 |
Left front door control unit |
68A |
| N69/1 |
Left front door control unit |
60A |
| N69/1 |
Left front door control unit |
44A |

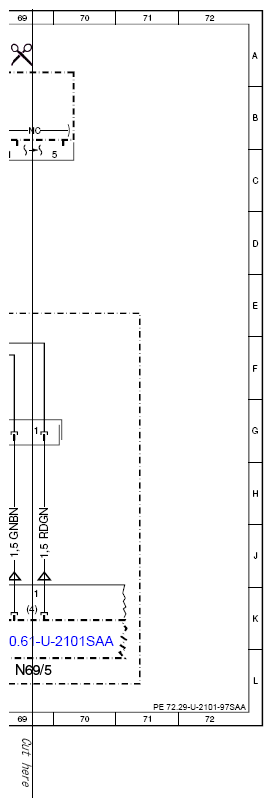

| N69/5 |
KEYLESS-GO control unit |
69L |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
48L |
| S20/1s1 |
Left front power window switch |
48K |
| S20/1s10 |
Left/right outside mirror adjustment selection switch |
47K |
| S20/1s12 |
Outside mirror adjustment rocker switch |
47J |
| S20/1s2 |
Right front power window switch |
48J |
| S20/1s3 |
Left rear power window and side window roller blind switch |
49K |
| S20/1s4 |
Right rear power window and side window roller blind switch |
49J |
| S20/1s5 |
Rear side windows child safety lock switch |
50K |
| S20/1s6 |
Trunk lid open/close switch |
50J |
| S20/1s9 |
Outside mirror fold-in/fold-out switch |
47J |
| S22 |
Left front seat operation switch group |
52L |
| S22s1 |
Head restraint adjustment switch |
51K |
| S22s10 |
Left or right seat adjustment selection switch |
53J |
| S22s11 |
Seat ventilation switch |
52K |
| S22s12 |
Heated seat switch |
53K |
| S22s2 |
Seat cushion fore/aft switch |
52K |
| S22s3 |
Fore/aft, height and inclination adjustment switch |
52K |
| S22s5 |
Backrest switch |
51K |
| S22s6 |
Memory switch |
52J |
| S22s7 |
Memory 1 switch |
52J |
| S22s8 |
Memory 2 switch |
53J |
| S22s9 |
Memory 3 switch |
|
| S85/5 |
Left interior CL [ZV] switch |
55L |
| U177 |
Not valid for ambiance illumination |
42F |
| U441 |
Valid for special protection |
19E |
| U82 |
Valid for KEYLESS GO |
65E |
| U884 |
Valid for ambiance illumination |
36F |
| U884 |
Valid for ambiance illumination |
40F |
| U884 |
Valid for ambiance illumination |
44F |
| U887 |
Valid for power closing |
62E |
| U889 |
Valid for additional door lock |
60E |
| U910 |
Valid for Blind Spot Assist |
31H |
| W34/1 |
Ground (electronics - left footwell) |
3E |
| X157/7 |
Left front door trim strip illumination separating point |
44G |
| X157/7 |
Left front door trim strip illumination separating point |
41G |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
10L |
| X35/1 |
Left front door and FFS [RBA] connector |
68G |
| X8/34 |
Left front door handle connector |
56H |
| Z5z1 |
Connector sleeve (solder connector in harness) |
58E |
