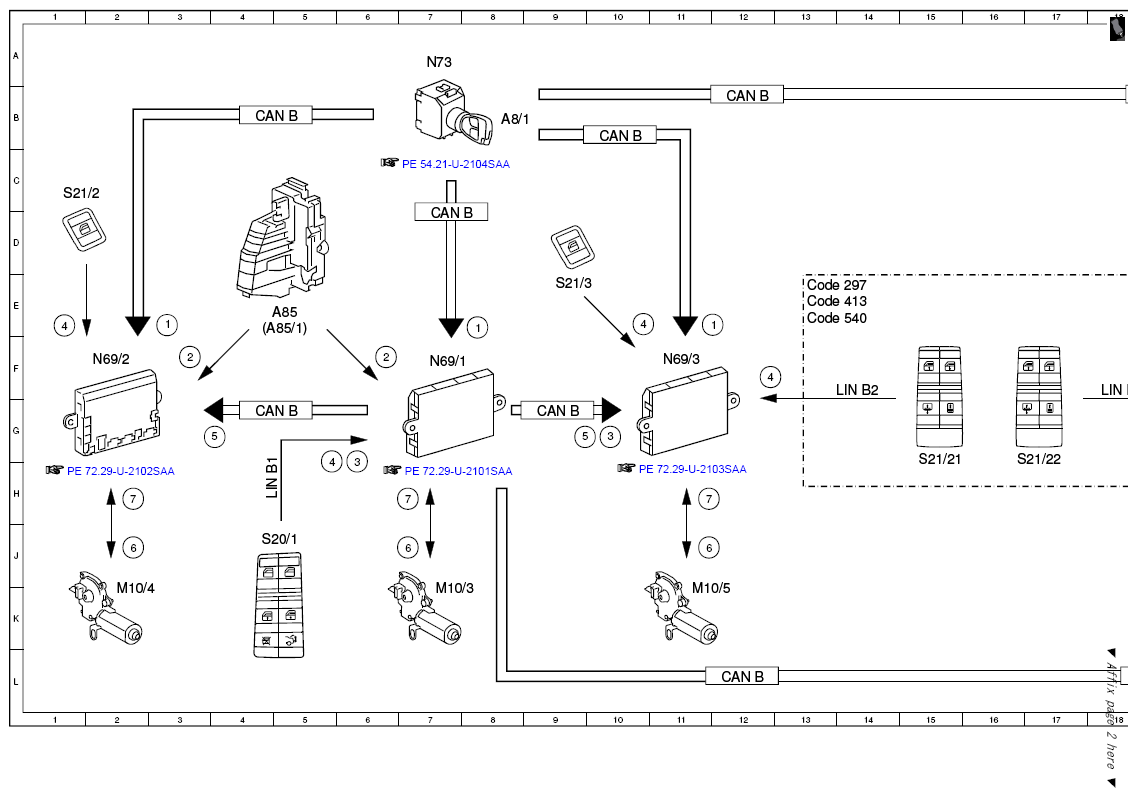

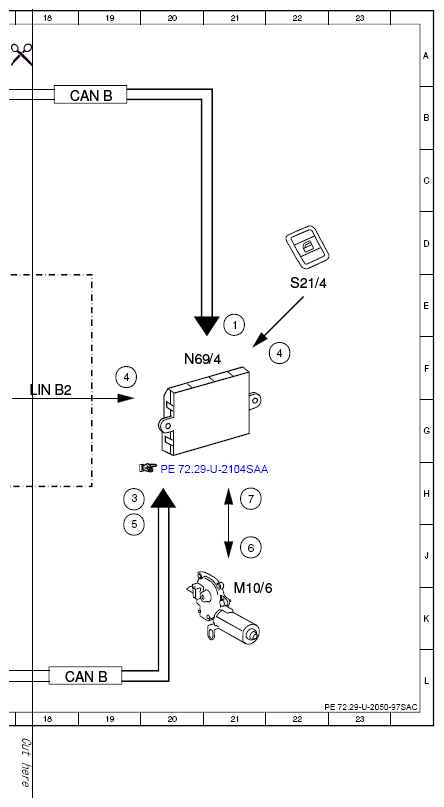

| 1 |
Circuit 15, status |
8E |
| 1 |
Circuit 15, status |
11E |
| 1 |
Circuit 15, status |
21E |
| 1 |
Circuit 15, status |
|
| 2 |
Door rotary tumbler switch, status |
3F |
| 2 |
Door rotary tumbler switch, status |
6F |
| 3 |
Child safety lock switch, status |
6H |
| 3 |
Child safety lock switch, status |
10G |
| 3 |
Child safety lock switch, status |
19H |
| 4 |
Power window switch, status |
1E |
| 4 |
Power window switch, status |
5H |
| 4 |
Power window switch, status |
10E |
| 4 |
Power window switch, status |
22F |
| 4 |
Power window switch, status |
12F |
| 4 |
Power window switch, status |
19F |
| 5 |
Power window motor, request |
4G |
| 5 |
Power window motor, request |
9G |
| 5 |
Power window motor, request |
19J |
| 6 |
Power window motor, actuation |
2J |
| 6 |
Power window motor, actuation |
7J |
| 6 |
Power window motor, actuation |
11J |
| 6 |
Power window motor, actuation |
21J |
| 7 |
Power window motor, signal |
2H |
| 7 |
Power window motor, signal |
7H |
| 7 |
Power window motor, signal |
11H |
| 7 |
Power window motor, signal |
21H |
| A8/1 |
Transmitter key |
8B |
| A85 |
Left front door lock unit |
5E |
| A85/1 |
Right front door lock switch |
4E |
| CAN B |
Interior CAN |
4G |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
10B |
| CAN B |
Interior CAN |
4B |
| CAN B |
Interior CAN |
9G |
| CAN B |
Interior CAN |
12L |
| CAN B |
Interior CAN |
12B |
| CAN B |
Interior CAN |
19B |
| CAN B |
Interior CAN |
18L |
| Code 297 |
Roller sun blinds in rear doors |
13E |
| Code 413 |
Panoramic glass sunroof with top sliding sunroof |
13E |
| Code 540 |
Roller sun blind |
13E |
| LIN B1 |
Front door LIN |
4H |
| LIN B2 |
Rear door LIN |
14F |
| LIN B2 |
Rear door LIN |
18F |
| M10/3 |
Left front power window motor |
7K |
| M10/4 |
Right front power window motor |
2K |
| M10/5 |
Left rear power window motor |
11K |
| M10/6 |
Right rear power window motor |
21K |
| N69/1 |
Left front door control unit |
7F |
| N69/2 |
Right front door control unit |
2F |
| N69/3 |
Rear left door control unit |
11F |
| N69/4 |
Right rear door control unit |
20F |
| N73 |
EIS [EZS] control unit |
7A |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
4J |
| S21/2 |
Front passenger power window switch |
1C |
| S21/21 |
Left rear door power window/roller blind switch group |
15H |
| S21/22 |
Right rear door power window/roller blind switch group |
17H |
| S21/3 |
Left rear power window switch |
9E |
| S21/4 |
Right rear power window switch |
22E |
