Function schematic for power window electrical system - PE72.29-U-2050-97SAB

Code:	Designation:	Position:
A01	Explanation of CAN and LIN-Bus	23J
A7/3	Traction system hydraulic unit	2B
M10/3	Left front power window motor	9J
M10/4	Right front power window motor	11C
M10/5	Left rear power window motor	16J
M10/6	Right rear power window motor	17C
M12	Roof system drive unit	19E
N2/7	Restraint systems control unit	2G
N69/1	Left front door control unit	6G
N69/2	Right front door control unit	6B
N69/3	Rear left door control unit	12G
N69/4	Right rear door control unit	12B
N70	Overhead control panel control unit	17E
N93	Central gateway control unit	4E

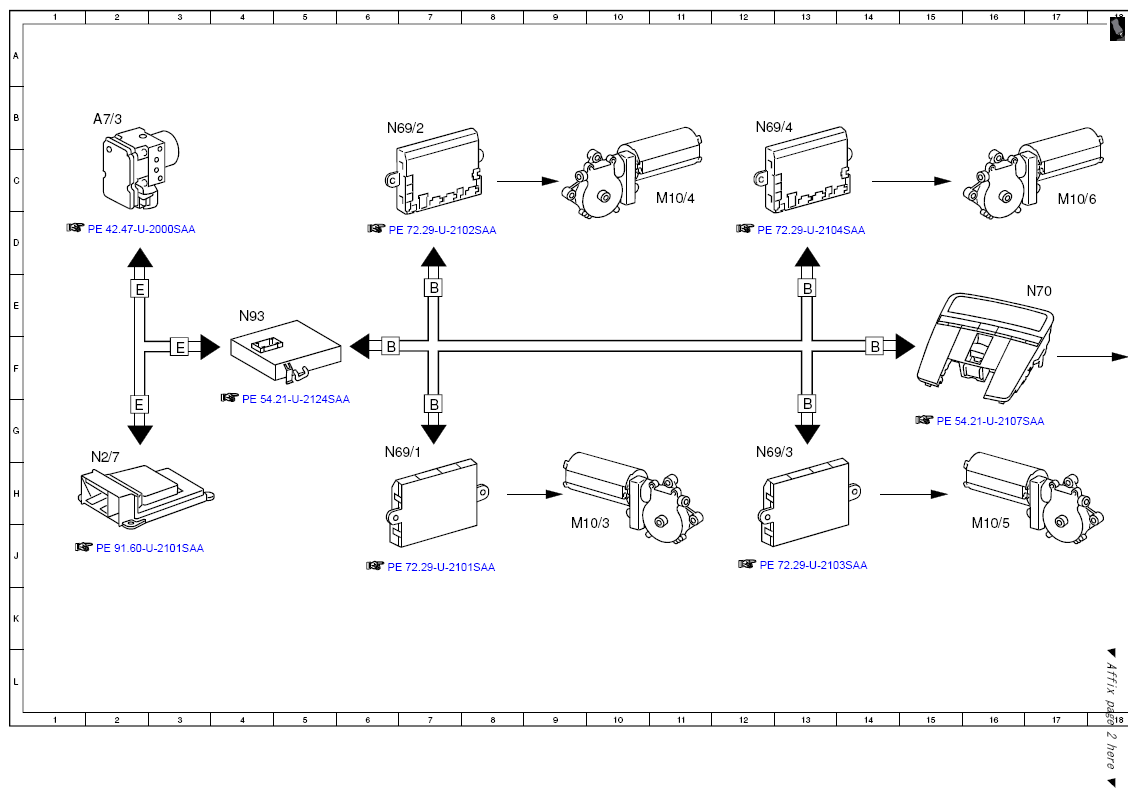

Fig 1: Power Window Electrical System Function Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Power Window Electrical System Function Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
