Remove/install trim strip on front door window frame - AR72.10-P-1710SXS

MODEL 221.1 with CODE (Z07) Top protection

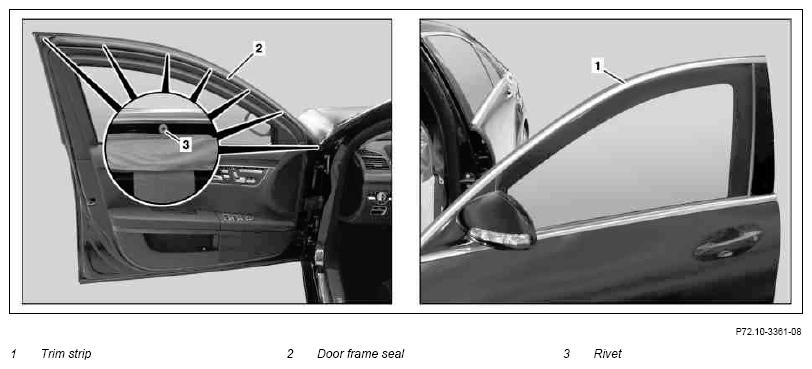

Fig 1: Identifying Front Door Window Frame Trim Strip Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
1	Remove top seal on window frame on left or right front door		AR72.10-P-1550SXS
2	Pull door frame seal (2) downward in area of rivets (3) and fasten with suitable adhesive tape to window frame	Do not pull door frame seal (2) down with too much force, otherwise, it detaches from the window frame. This prevents damaging the door frame seal (2) when drilling out the rivets (3) later.
3	Mask off gap between door frame seal (2) and window frame over entire length with suitable adhesive tape	This ensures that no chips or drilling residues fall into the gap.
4	Mask off A-pillar across front rivet (3) with suitable adhesive tape	This prevents damage to the paint on the A-pillar.
5	Drill out rivet heads (3) with drill bit (3.5 mm dia.)	Do not drill through rivets (3), otherwise, the window frame is damaged. Cordless drill/driver, cordless drill   Pliers
6	Complete remove rivet residues and chips	Any rivet residues and chips remaining cause corrosion damages.
7	Loosen trim strip (1) and remove from window frame	Repair paint damage on window frame with suitable touch-up paint pen.
			Figure
8	Install in the reverse order
