Remove/install door lining on front door - AR72.10-P-1000M

MODEL 220 except CODE (Z07) Top protection except CODE (Z04) Light armoring

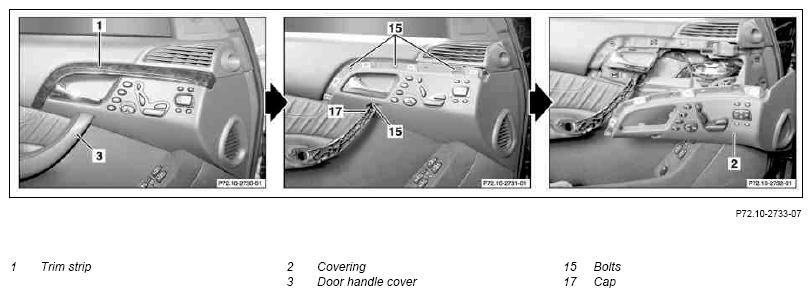

Fig 1: Identifying Front Door Lining Remove/Install Component - Shown On Model 220

Courtesy of MERCEDES-BENZ USA

Shown on model 220 up to VIN: 316716

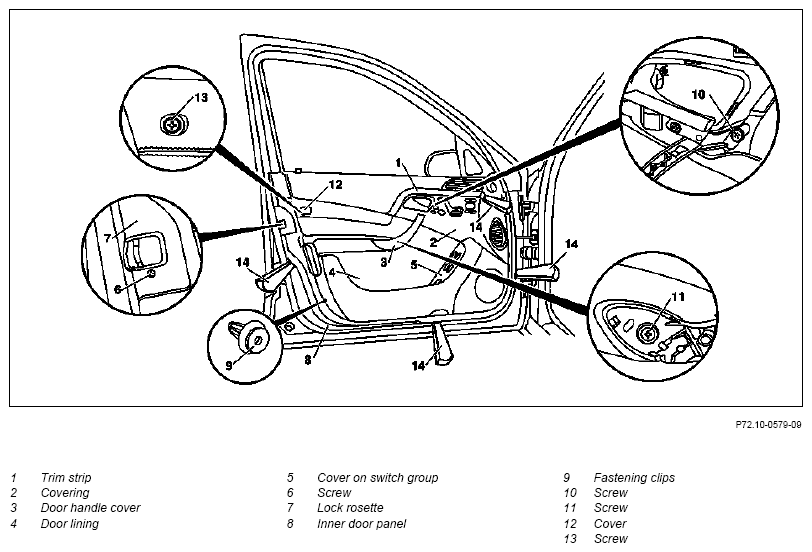

Fig 2: Identifying Front Door Lining Remove/Install Component - Shown On Model 220

Courtesy of MERCEDES-BENZ USA

Shown on model 220 up to VIN: 316716

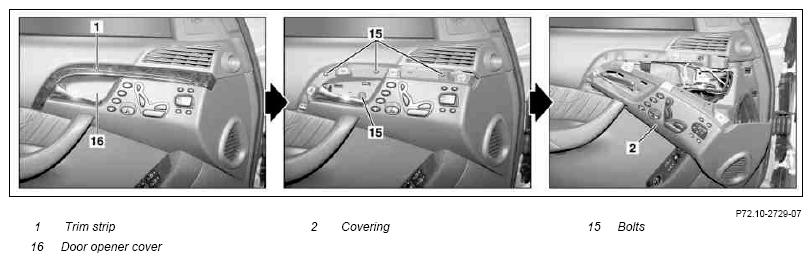

Fig 3: Identifying Front Door Lining Remove/Install Component - Shown On Model 220

Courtesy of MERCEDES-BENZ USA

Shown on model 220 As of VIN: 316717

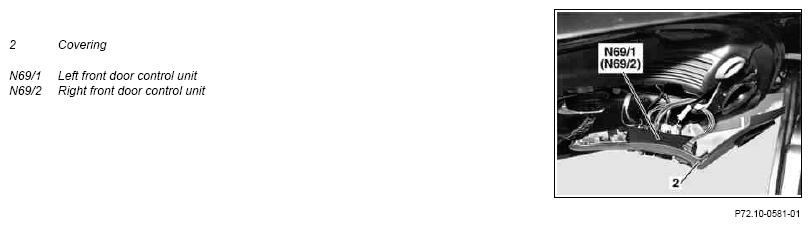

Fig 4: Identifying Front Door Lining Remove/Install Component - Shown On Model 220

Courtesy of MERCEDES-BENZ USA

Shown on model 220 up to VIN: 316716

	Remove/Install
1	Press trim strip (1) out of covering (2)		Figure
2.1	Remove door handle cover (3) from door handle	Up to VIN: 316716
2.2	Remove door opener cover (16)	As of VIN: 316717
3.1	Unclip cap (17)	Up to VIN: 316716
4	Remove screws (15)
5	Press covering (2) off of door lining (2)		Figure
6	Disconnect electrical connector from left front door control unit (N69/1) and right front door control unit (N69/2)	For this purpose, remove covering (2)
7	Unclip cover on switch group (5) with switch group from door lining (4)	For this purpose, pull cover on switch group (5) downward at bottom edge until cover on switch group (5) can be removed
8	Unscrew bolt (6) from round cover plate (7)	For this purpose, remove round cover plate (7)
9	Unscrew bolts (10, 11) from inner door handle
10	Remove screw (13)	For this purpose, remove cover (12)
11	Press door lining (4) off of inner door panel (8)	Move mounting wedge (14) directly to fastening clips (9) and ensure that the retainer tabs on the fastening clip (9) do not tear out of the door lining (4)
			Figure
12	Lift door lining (4) at top on sealing rail out of retaining clips and simultaneously pull away from inner door panel (8)	Remove fastening clips remaining on inner door panel (8) and install at corresponding point on door lining (4)
			Figure
13	Unhook Bowden cable from inside door opener
14	Disconnect electrical connectors from door lining (4) and lay down door lining (4)
15	Check door foil and fastening clips (9)	Replace damaged door foil and fastening clips (9)
16	Install in the reverse order

Fig 5: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
