Remove/install door holder - AR72.10-P-2100SXS

MODEL 221.1 with CODE (Z07) Top protection with hydraulic power windows

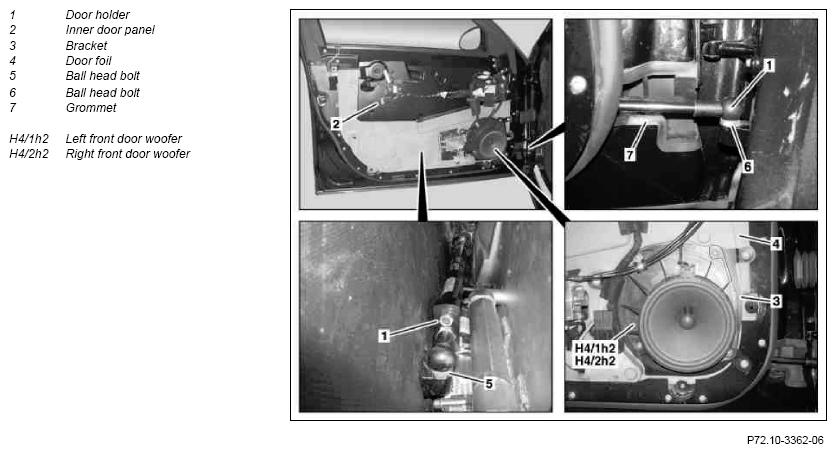

Fig 1: Identifying Door Holder Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	When working on unsecured front door, ensure that it does not swing completely open, otherwise, the front door and front fenders can be damaged.
1	Remove inner door panel (2) from left or right front door		AR72.10-P-0104SXS
2	Remove bracket (3) with left front door woofer (H4/1h2) or right front door woofer (H4/2h2)
3	Remove door foil (4) in front area of front door	Cut through butyl cord on rear of door foil (4) with suitable blade.
4	Pry off door holder (1) of ball head bolt (5) on front door		Figure
5	Pry off door holder (1) of ball head bolt (6) on A-pillar		Figure
6	Moisten grommet (7) and front part of door holder (1) with liquid lubricant	This allows the door holder (1) to be pulled through the grommet (7) more easily.
		Antifriction agent	*BR00.45-Z-1010-06A
7	Pull door holder (1) carefully toward inside through grommet (7) and remove from front door	Counterhold grommet (7) from inside; otherwise, it can separate from the front door or be damaged.
	Install
8	Moisten grommet (7) and front part of door holder (1) with liquid lubricant	Antifriction agent	*BR00.45-Z-1010-06A
9	Insert door holder (1) into front door and carefully press outward through grommet (7)	Counterhold grommet (7) from outside; otherwise, it can separate from the front door or be damaged.
10	Press door holder (1) onto ball head bolt (6) on A-pillar	Ensure that door holder (1) is properly seated on ball head bolt (6).
11	Press door holder (1) onto ball head bolt (5) on front door	Ensure that door holder (1) is properly seated on ball head bolt (5).
12	Install inner door panel (2) on front door		AR72.10-P-0104SXS
13	Attach bracket (3) with left front door woofer (H4/1h2) or right front door woofer (H4/2h2)
14	Install door lining in front door		AR72.10-P-1000SXS

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
