Remove/install door frame seal - AR72.10-P-2120SXS
MODEL 221.1 with CODE (Z07) Top protection
| Removing | |||
| Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB | ||
| 1 | Remove door lining from left or right front door | AR72.10-P-1000SXS | |

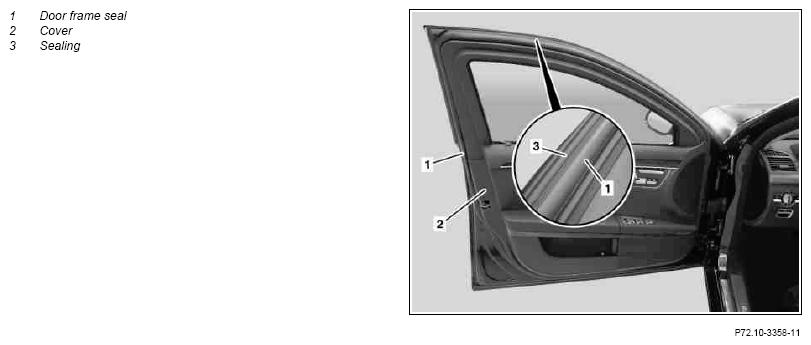

| 2 | Remove cover (2) | ||
| Figure | |||
| 3 | Completely remove door frame seal (1) from front door | ||
| 4 | Remove adhesive residues on front door and clean bonding surfaces | Dia. 100 mm removal disk with mounting shaft 3M Deutschland GmbH D-41453 Neuss Drill |
|
| Cleaner | *BR00.45-Z-1025-04A | ||
| Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks | AH00.00-P-0013-01AK | ||
| Install | |||
| 5 | Align door frame seal (1) on front door, glue on and roll on | ||
| Figure | |||
| 6 | Pretreat bonding surfaces on front door with primer and glue on new paneling (2) | ||
| Primer | *BR00.45-Z-1030-02A | ||
| Double-sided adhesive tape | *BR00.45-Z-1075-02A | ||
| 7 | Install door lining in front door | AR72.10-P-1000SXS |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1030-02A | Scotch 3M 4297 Primer | A 004 989 29 71 |
| BR00.45-Z-1075-02A | Teroson double-sided adhesive tape For bonding trim strips and emblems (UV-resistant and weatherproof, black) (Width 12 mm) Order no.: 107.64 A (Width 19 mm) Order no.: 107.96 K (Width 25 mm) Order no.: 117.05 Y |
Henkel Loctite Deutschland GmbH |
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
