Power windows (PW), location of components - GF72.29-P-0003-01SX

Shown on model 221.0

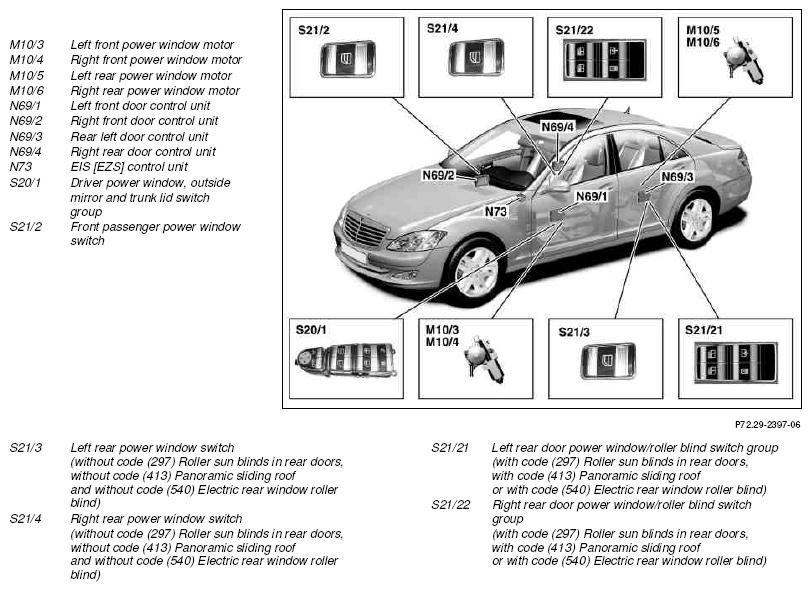

Fig 1: Power Windows Components Location - Shown On Model 221.0

G10128369

Courtesy of MERCEDES-BENZ USA
