Power windows (PW), location of components - GF72.29-P-0003-01LE

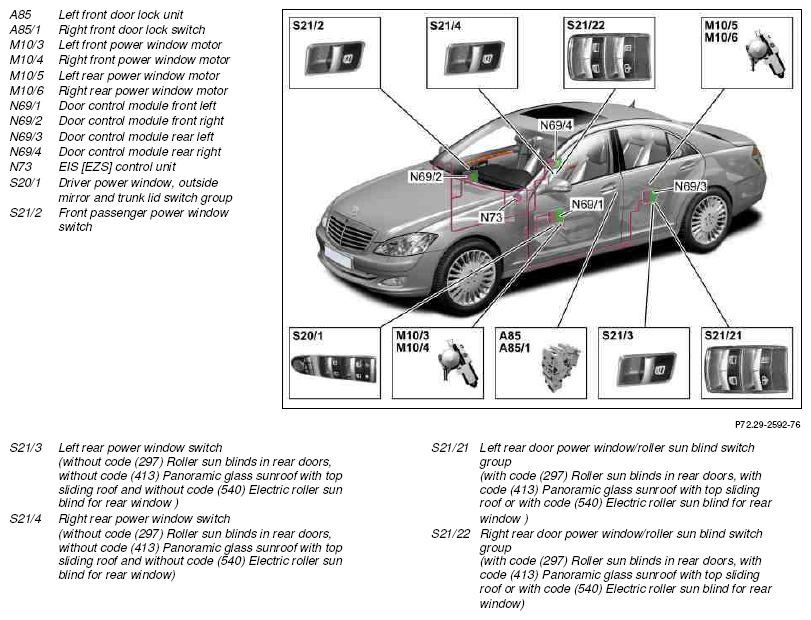

Fig 1: Power Windows Components Location

G10128368

Courtesy of MERCEDES-BENZ USA
