Power window (PW), block diagram - GF72.29-P-0003-03LE

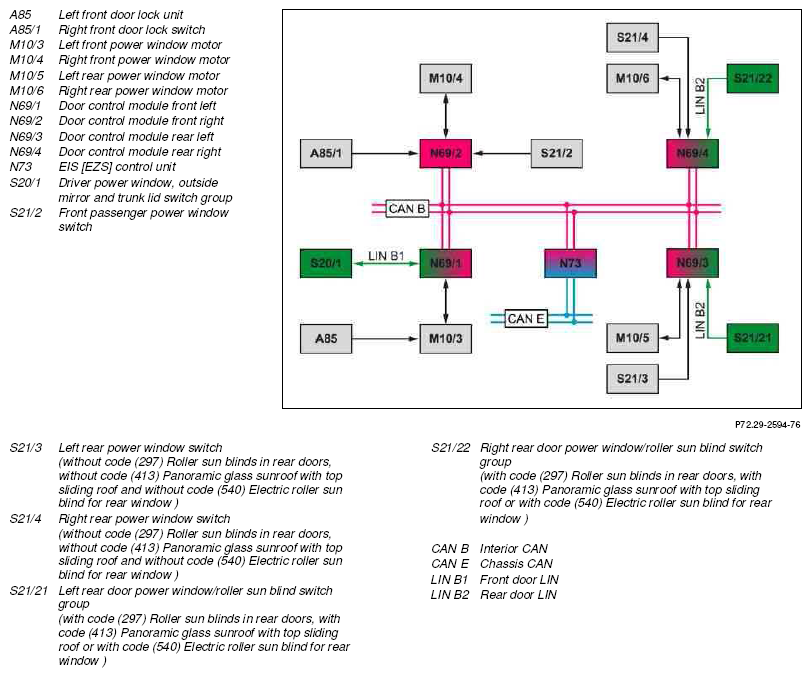

Fig 1: Power Window Block Diagram

G10128370

Courtesy of MERCEDES-BENZ USA
