Component description for rear power window switch - GF72.29-P-6050SX
MODEL 221.0/1 except CODE (297) Roller sun blinds in rear doors except CODE (413) Panoramic sliding roof except CODE (540) Electric rear window roller blind up to Model Year 08
MODEL 216.3 up to Model Year 08
Illustrated on model 216

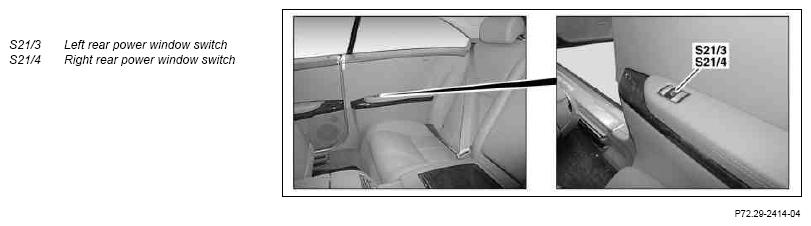

Location
The rear power window switch is located in the corresponding armrest in the rear.
Task
The rear power window switches transmit the adjustment requests for the rear left power window motor (M10/5) or right rear power window motor (M10/6) to the rear control unit (N22/6) (model 216) or the left rear door control unit (N69/3) (model 221) or the right rear door control unit (N69/4) (model 221) using voltage-coded signals.
