Wiring diagram cockpit management and data system (COMAND) control module - PE82.85-U-2101-97SAG

Code:	Designation:	Position:
A40/3	COMAND control unit	12A
A40/3	COMAND control unit	4A
A67b1	Hands-free system microphone group	9L
A67b1x1	Hands-free system microphone group connector	8H
U1026	Not valid for media interface	3E
U170	Valid for media interface	1E
U973	Valid for USB interface	11C
X115	USB (Universal Serial Bus) connector	12H
X18/67	Media interface connector 1	1H
X18/70	Media interface connector	1L
X25/8	Overhead control panel and FFS [RBA] connector	8E
X39/45	Walkman separation point	3L
X39/45	Walkman separation point	3H
Z20/31	Tracer wire connector sleeve	11D
Z20/62	Screening end connector sleeve	11E
Z83/6	AUX jack shielding connector sleeve	6J

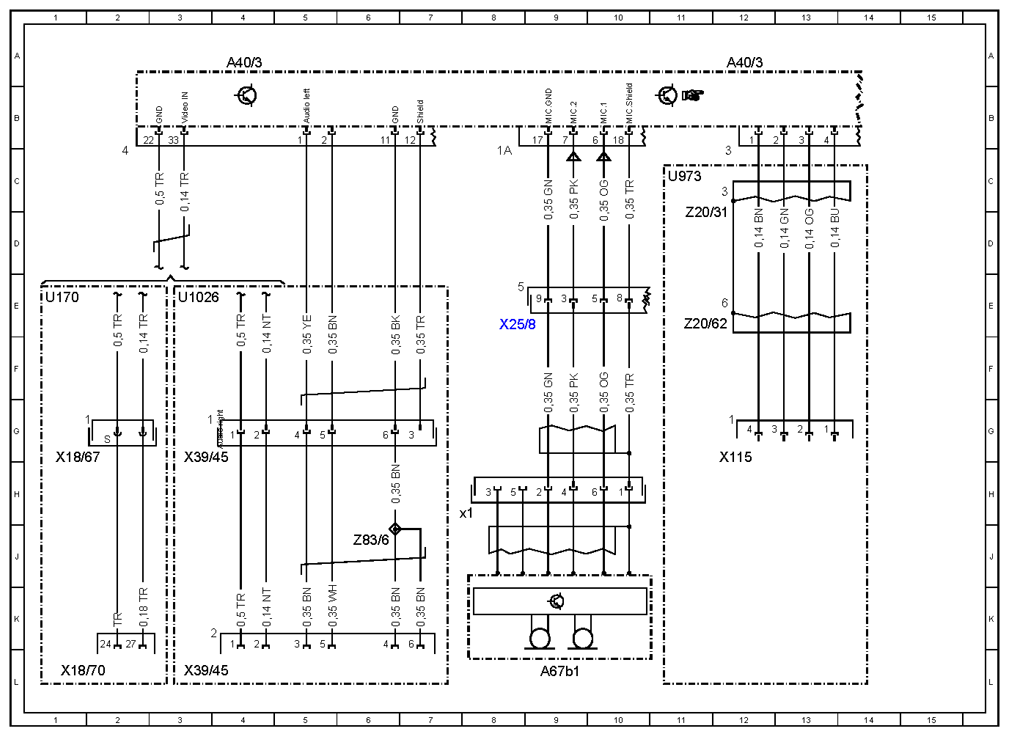

Fig 1: Cockpit Management And Data System Control Module Wiring Diagram

Courtesy of MERCEDES-BENZ USA
