Wiring diagram cockpit management and data system (COMAND) control module - PE82.85-U-2101-97SAA

Code:	Designation:	Position:
A2/49a2	GPS antenna	22L
A2/5	Antenna splitter	24L
A40/3	COMAND control unit	4A
A40/3	COMAND control unit	12A
A40/3	COMAND control unit	20A
A40/3	COMAND control unit	29A
A40/8	COMAND display	29L
CAN A	Telematics CAN	10K
CAN A	Telematics CAN	39K
CAN F	Central CAN	13K
MOST	Media Oriented System Transport	20C
N10/1	Front SAM control unit with fuse and relay module	36L
N10/2	Rear SAM control unit with fuse and relay module	2L
N66/10	Backup camera voltage supply module	6L
N66/2	Backup camera control unit	6L
U899	Valid for backup camera	4G
W18	Ground (left front seat crossmember)	3E
W43	Ground (reference, image transmission systems)	4E
W43	Ground (reference, image transmission systems)	31G
X18	Cockpit wiring harness and FFS [RBA] connector	12E
X18	Cockpit wiring harness and FFS [RBA] connector	32G
X30/20	Central CAN voltage distributor connector	13L
X30/35	Telematics CAN voltage distributor connector	10L
X30/35	Telematics CAN voltage distributor connector	39L
X39/45	Walkman separation point	15E
X39/45	Walkman separation point	17L

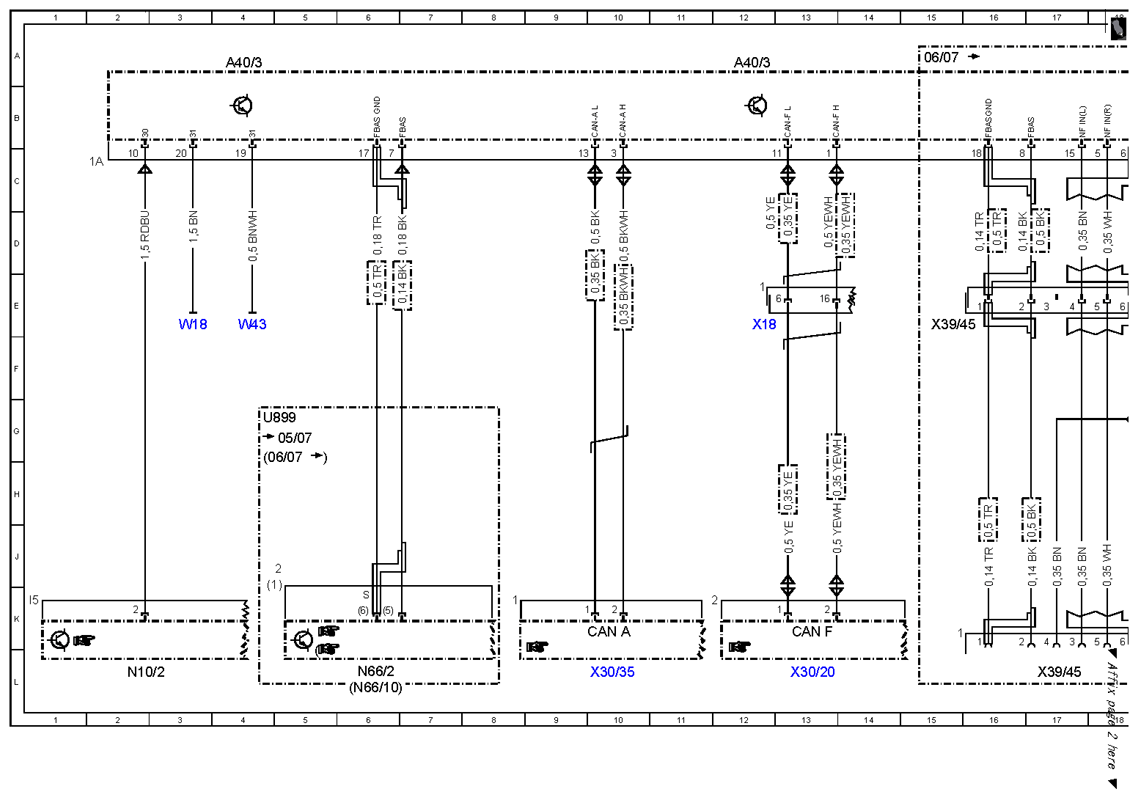

Fig 1: Cockpit Management And Data System Control Module Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

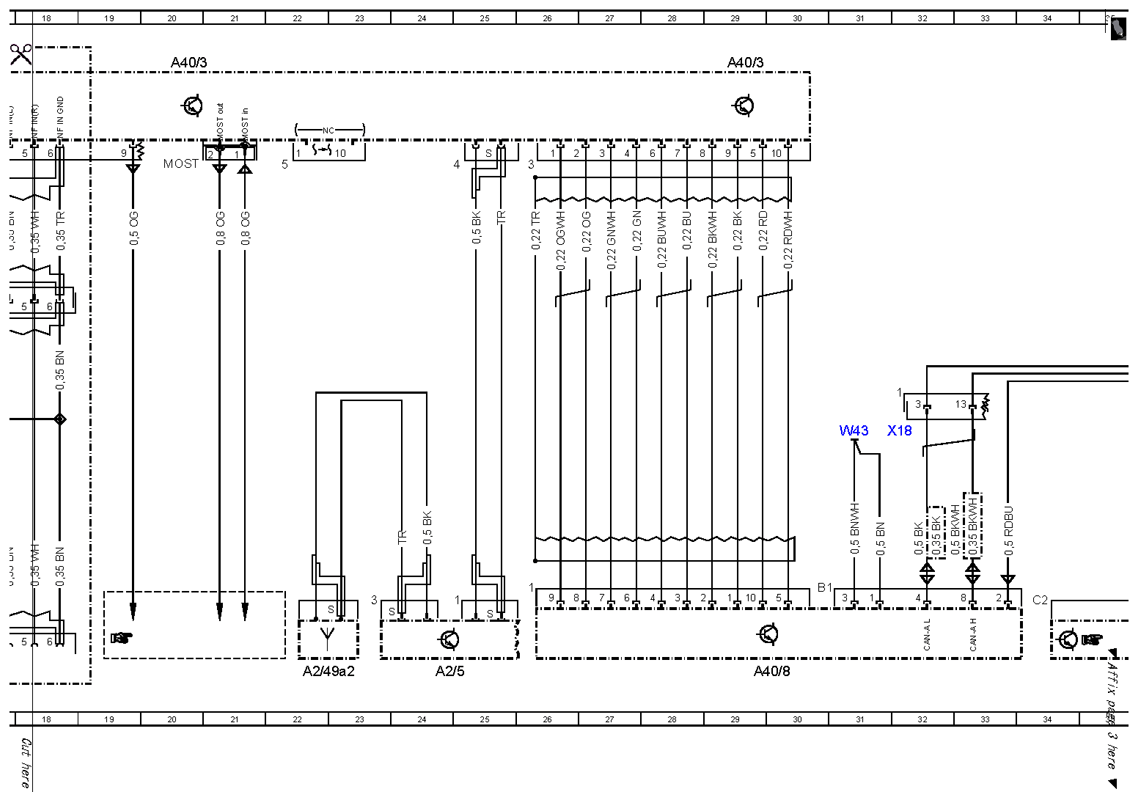

Fig 2: Cockpit Management And Data System Control Module Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

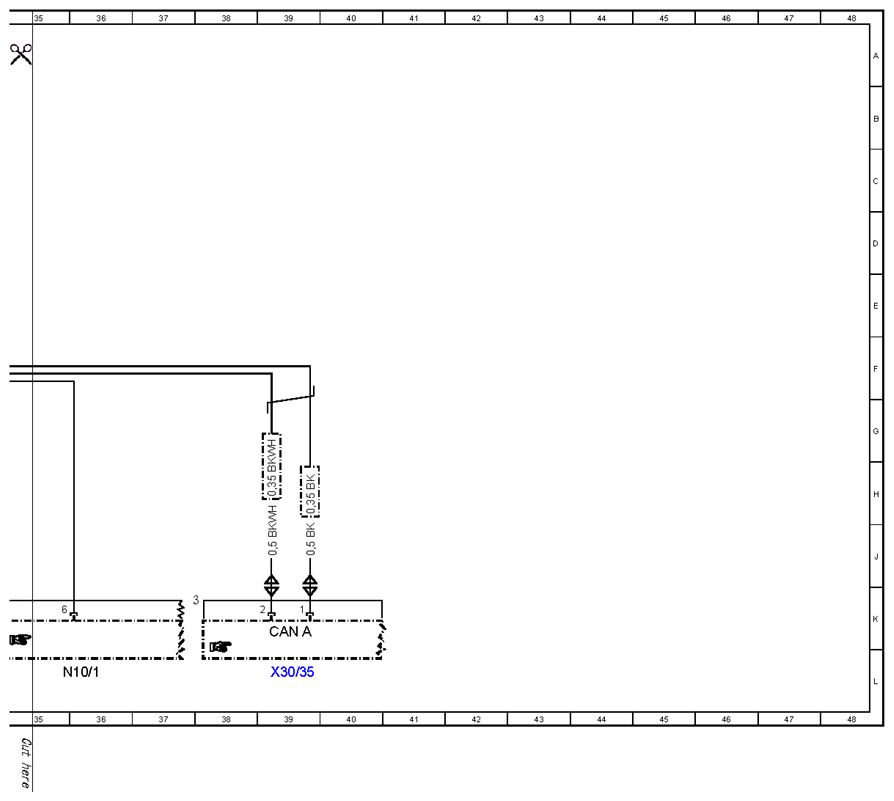

Fig 3: Cockpit Management And Data System Control Module Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
