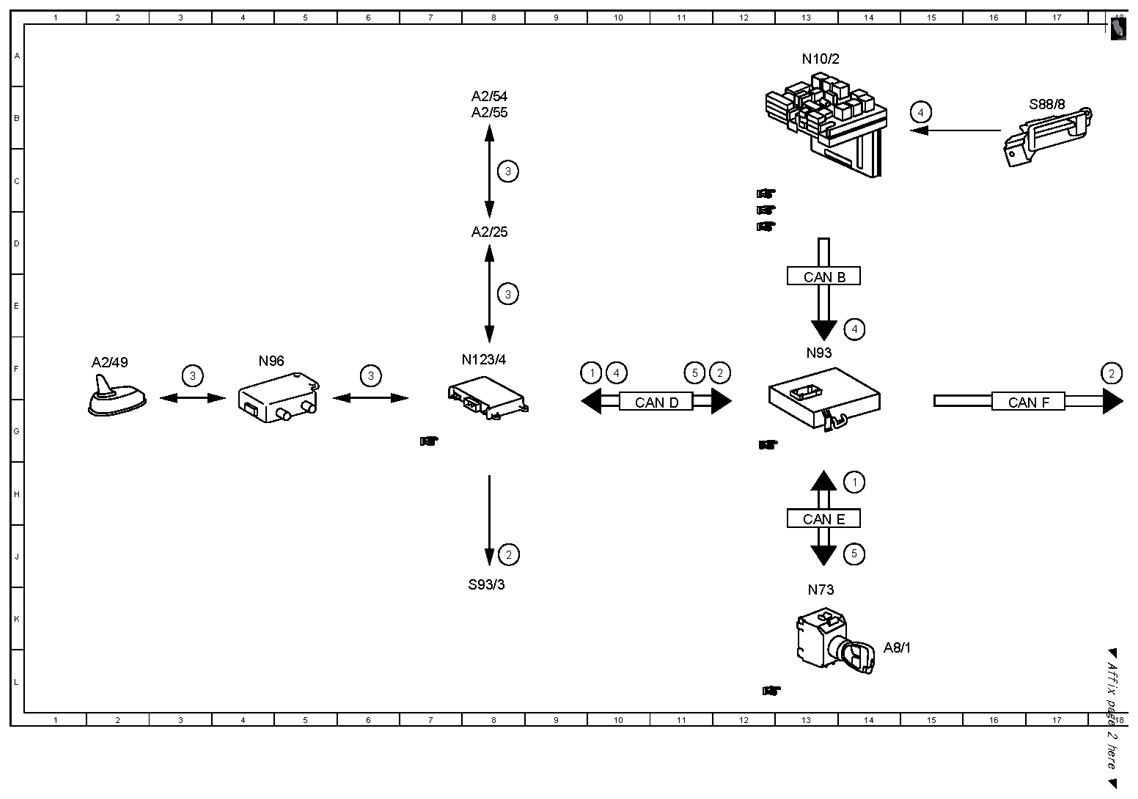

| 1 |
Circuit 15R/circuit 15, status ON |
10F |
| 1 |
Circuit 15R/circuit 15, status ON |
14H |
| 2 |
Status indication, signal |
8J |
| 2 |
Status indication, signal |
12F |
| 2 |
Status indication, signal |
18F |
| 3 |
Telephone, signal |
6F |
| 3 |
Telephone, signal |
3F |
| 3 |
Telephone, signal |
8E |
| 3 |
Telephone, signal |
8C |
| 4 |
Trunk lid open/close switch, status |
10F |
| 4 |
Trunk lid open/close switch, status |
14E |
| 4 |
Trunk lid open/close switch, status |
15B |
| 5 |
Lock central locking, signal |
11F |
| 5 |
Lock central locking, signal |
14J |
| A1 |
Instrument cluster |
19F |
| A2/25 |
Emergency call system antenna splitter |
8D |
| A2/49 |
Telephone and GPS roof antenna |
2F |
| A2/54 |
Emergency call system left backup antenna |
8B |
| A2/55 |
Emergency call system right backup antenna |
8B |
| A8/1 |
Transmitter key |
14L |
| CAN B |
Interior CAN |
13E |
| CAN D |
Diagnostic CAN |
10G |
| CAN E |
Chassis CAN |
13H |
| CAN F |
Central CAN |
16G |
| N10/2 |
Rear SAM control unit with fuse and relay module |
13A |
| N123/4 |
Emergency call system control unit |
8F |
| N73 |
EIS [EZS] control unit |
13K |
| N93 |
Central gateway control unit |
13F |
| N96 |
Frequency switchover control unit |
4F |
| S88/8 |
Trunk lid external operation switch |
17B |
| S93/3 |
SOS pushbutton switch |
8K |
