Electrical function schematic for selection of telephone antenna, function - PE82.95-U-2062-97SAA

Code:	Designation:	Position:
1	Circuit 15R, status	7E
1	Circuit 15R, status	11G
2	Telephone, signal	6H
2	Telephone, signal	7K
2	Telephone, signal	6D
2	Telephone, signal	7B
A2/25	Emergency call system antenna splitter	5C
A2/49	Telephone and GPS roof antenna	8J
A2/54	Emergency call system left backup antenna	8C
A2/55	Emergency call system right backup antenna	8C
A8/1	Transmitter key	12J
CAN D	Diagnostic CAN	8F
CAN E	Chassis CAN	11G
N123/4	Emergency call system control unit	5E
N73	EIS [EZS] control unit	11H
N93	Central gateway control unit	11E
N96	Frequency switchover control unit	5J

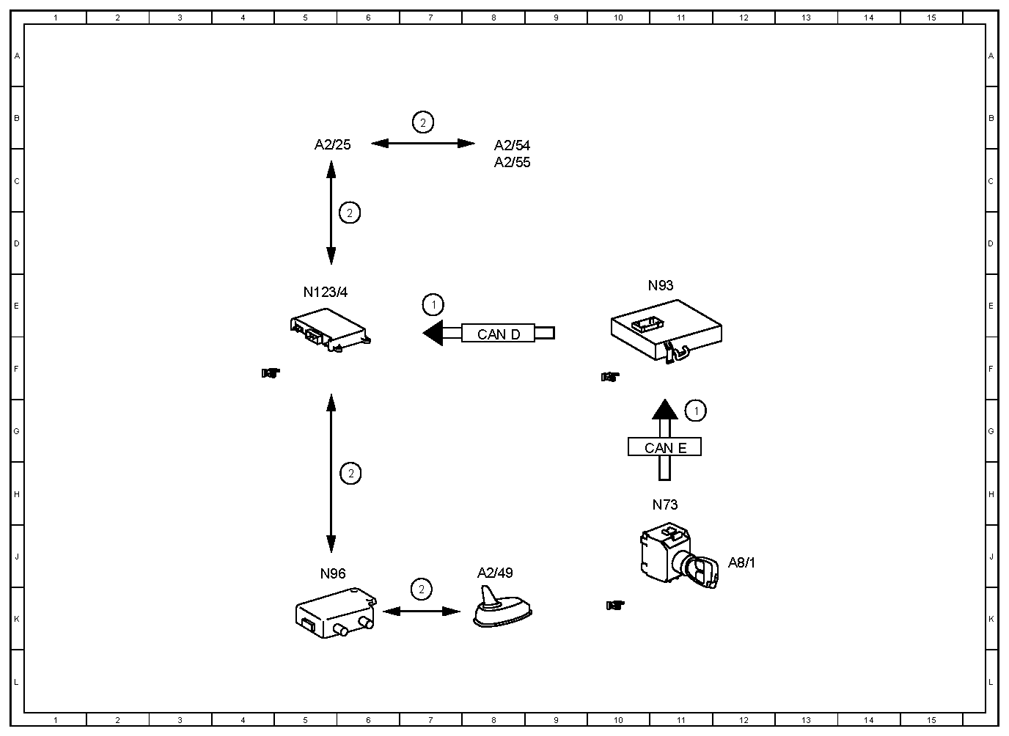

Fig 1: Telephone Antenna Selection Function Diagram

Courtesy of MERCEDES-BENZ USA
