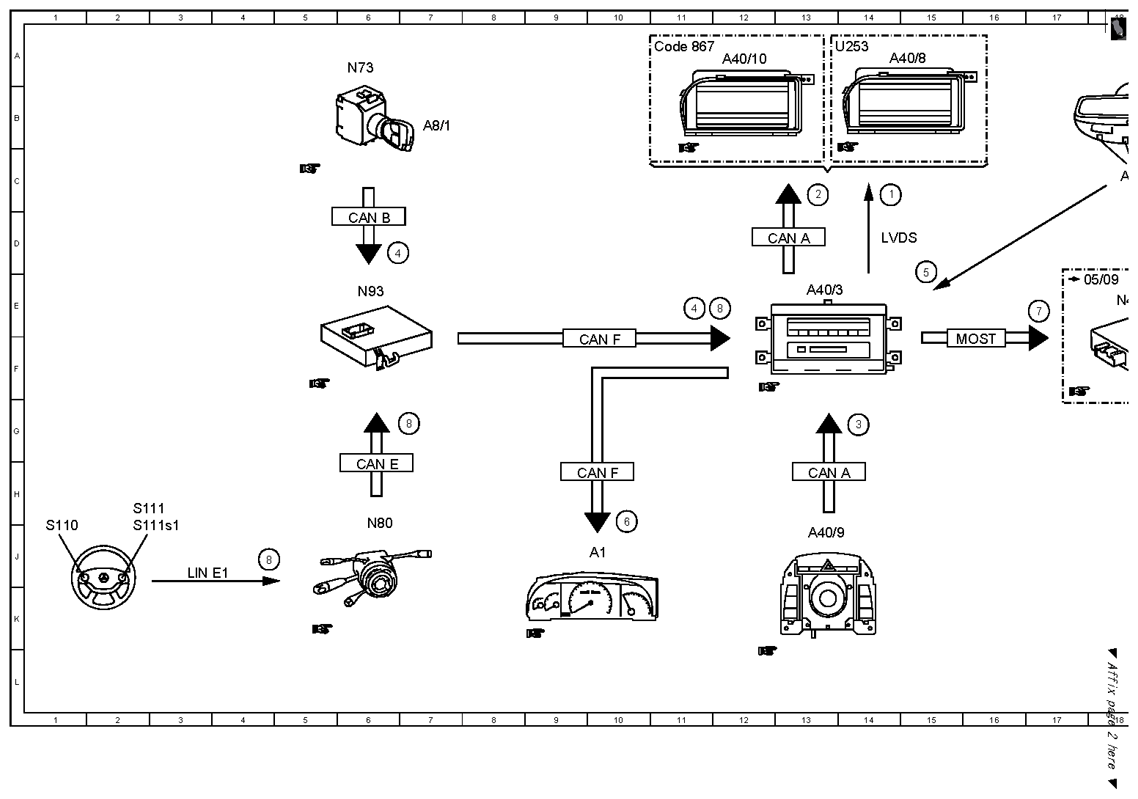

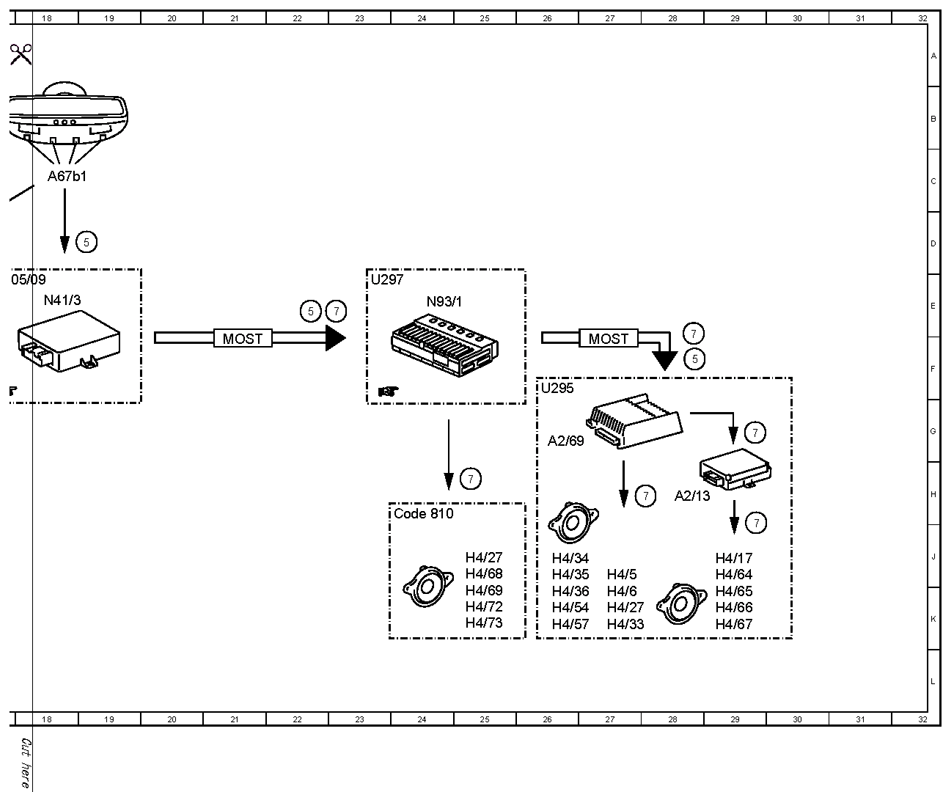

| 1 |
Audio/COMAND display, signal |
14C |
| 2 |
Switch-on request, signal |
13C |
| 3 |
Front central operating unit, signal |
14G |
| 4 |
Circuit 15R/circuit 15, status ON |
6D |
| 4 |
Circuit 15R/circuit 15, status ON |
11E |
| 5 |
Microphone, signal |
15E |
| 5 |
Microphone, signal |
22E |
| 5 |
Microphone, signal |
19D |
| 5 |
Microphone, signal |
28F |
| 6 |
Instrument cluster, actuation |
10J |
| 7 |
Speaker, actuation |
28H |
| 7 |
Speaker, actuation |
25H |
| 7 |
Speaker, actuation |
29J |
| 7 |
Speaker, actuation |
29G |
| 7 |
Speaker, actuation |
17E |
| 7 |
Speaker, actuation |
23E |
| 7 |
Speaker, actuation |
28F |
| 8 |
Multifunction steering wheel button group, signal |
4J |
| 8 |
Multifunction steering wheel button group, signal |
7G |
| 8 |
Multifunction steering wheel button group, signal |
12E |
| A1 |
Instrument cluster |
10J |
| A2/13 |
Sound amplifier |
28H |
| A2/69 |
Digital sound processor |
26G |
| A40/10 |
SPLITVIEW display |
12A |
| A40/3 |
COMAND control unit |
13E |
| A40/8 |
COMAND display |
14A |
| A40/9 |
Front central operating unit |
13J |
| A67b1 |
Hands-free system microphone group |
18C |
| A8/1 |
Transmitter key |
7B |
| CAN A |
Telematics CAN |
13H |
| CAN A |
Telematics CAN |
13D |
| CAN B |
Interior CAN |
6D |
| CAN E |
Chassis CAN |
6H |
| CAN F |
Central CAN |
10H |
| CAN F |
Central CAN |
10F |
| Code 810 |
Sound system |
24H |
| Code 867 |
SPLITVIEW |
11A |
| H4/17 |
Bass module speaker |
29J |
| H4/27 |
Center cockpit speaker (centerfill) |
27K |
| H4/27 |
Center cockpit speaker (centerfill) |
25J |
| H4/33 |
Left front door tweeter |
27K |
| H4/34 |
Right front door tweeter |
26J |
| H4/35 |
Left rear door tweeter |
26J |
| H4/36 |
Right rear door tweeter |
26K |
| H4/5 |
Left front door speaker |
27J |
| H4/54 |
Left rear surround speaker |
26K |
| H4/57 |
Right rear surround speaker |
26K |
| H4/6 |
Right front door speaker |
27K |
| H4/64 |
Left front door woofer |
29J |
| H4/65 |
Right front door woofer |
29K |
| H4/66 |
Left rear door woofer |
29K |
| H4/67 |
Right rear door woofer |
29K |
| H4/68 |
Left front door Sound tweeter |
25J |
| H4/69 |
Right front door Sound tweeter |
25K |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
25K |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
25K |
| LIN E1 |
Steering LIN |
3J |
| LVDS |
Low voltage differential signal |
14D |
| MOST |
Media Oriented System Transport |
16F |
| MOST |
Media Oriented System Transport |
21F |
| MOST |
Media Oriented System Transport |
27F |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
18E |
| N73 |
EIS [EZS] control unit |
6A |
| N80 |
Steering column module |
6J |
| N93 |
Central gateway control unit |
6E |
| N93/1 |
Audio tuner control unit |
24E |
| S110 |
Left multifunction steering wheel button group |
1J |
| S111 |
Right multifunction steering wheel button group |
2H |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
2J |
| U253 |
Not valid for SPLITVIEW display |
13A |
| U295 |
Valid for expanded sound system |
26F |
| U297 |
Not valid for USA with expanded sound system |
23E |
