| 1 |
Circuit 15, status |
15D |
| 1 |
Circuit 15, status |
15G |
| 1 |
Circuit 15, status |
17G |
| 2 |
Telematics CAN active, signal |
14D |
| 2 |
Telematics CAN active, signal |
15G |
| 2 |
Telematics CAN active, signal |
18G |
| 3 |
RCP control unit, signal |
|
| 4 |
Rear display control signals, signal |
17E |
| 5 |
Analog picture signal, signal |
14F |
| 5 |
Analog picture signal, signal |
19F |
| 6 |
Audio, signal |
14F |
| 6 |
Audio, signal |
14J |
| 6 |
Audio, signal |
19F |
| 6 |
Audio, signal |
19J |
| 6 |
Audio, signal |
21D |
| 6 |
Audio, signal |
22F |
| 7 |
|
|
| 8 |
Multifunction steering wheel button group, signal |
7E |
| 8 |
Multifunction steering wheel button group, signal |
4G |
| 8 |
Multifunction steering wheel button group, signal |
9C |
| 9 |
Speaker, actuation |
23B |

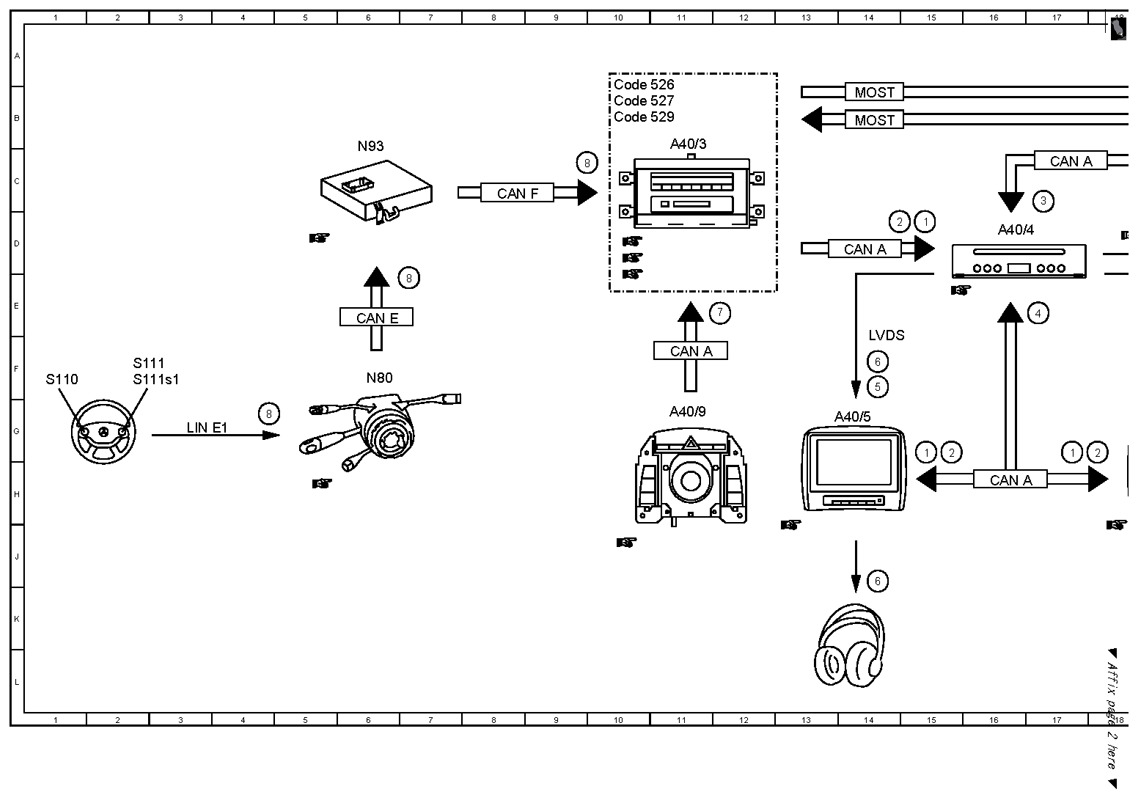

| A40/3 |
COMAND control unit |
11B |
| A40/4 |
DVD player |
16D |
| A40/5 |
Left rear display |
14G |
| A40/6 |
Right rear display |
19G |
| A40/9 |
Front central operating unit |
11G |
| CAN A |
Telematics CAN |
|
| CAN A |
Telematics CAN |
|
| CAN A |
Telematics CAN |
|
| CAN A |
Telematics CAN |
|
| CAN E |
Chassis CAN |
|
| CAN F |
Central CAN |
|
| Code 526 |
COMAND with single DVD drive (without navigation) |
|
| Code 527 |
COMAND APS (with navigation) |
|
| Code 529 |
HIGH Class Japan |
|
| Code 810 |
Sound system |
|
| H4/17 |
Bass module speaker |
22G |
| H4/27 |
Center cockpit speaker (centerfill) |
22G |
| H4/3 |
Left rear door speaker group |
22F |
| H4/4 |
Right rear door speaker group |
22G |
| H4/54 |
Left rear surround speaker |
22G |
| H4/57 |
Right rear surround speaker |
22H |
| H4/68 |
Left front door Sound tweeter |
22H |
| H4/69 |
Right front door Sound tweeter |
22H |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
22J |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
22J |
| LIN E1 |
Steering LIN |
|
| LVDS |
Low voltage differential signal |
|
| LVDS |
Low voltage differential signal |
|
| MOST |
Media Oriented System Transport |
|
| MOST |
Media Oriented System Transport |
|

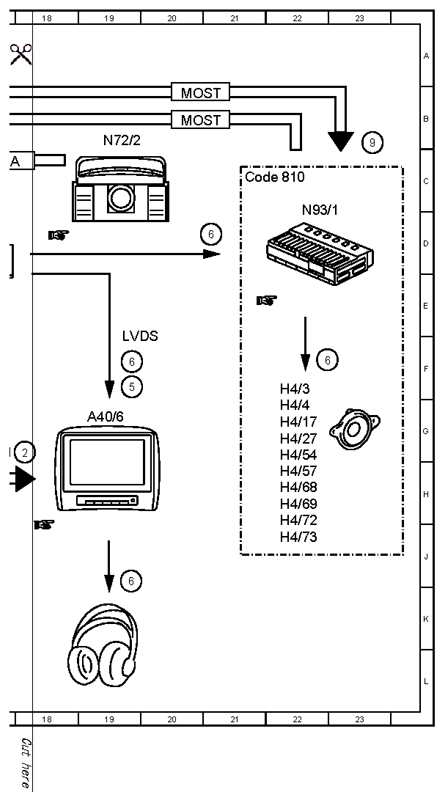

| N72/2 |
RCP [HBF] control unit |
19B |
| N80 |
Steering column module |
6F |
| N93 |
Central gateway control unit |
6C |
| N93/1 |
Audio tuner control unit |
22D |
| S110 |
Left multifunction steering wheel button group |
1F |
| S111 |
Right multifunction steering wheel button group |
2F |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
2F |
