| 1 |
Multifunction steering wheel button group, signal |
2J |
| 1 |
Multifunction steering wheel button group, signal |
6K |
| 1 |
Multifunction steering wheel button group, signal |
8G |
| 1 |
Multifunction steering wheel button group, signal |
15H |
| 1 |
Multifunction steering wheel button group, signal |
15E |
| 1 |
Multifunction steering wheel button group, signal |
17L |
| 1 |
Multifunction steering wheel button group, signal |
21F |
| 2 |
Switch-on request, signal |
10D |
| 2 |
Switch-on request, signal |
15F |
| 2 |
Switch-on request, signal |
21G |
| 3 |
Wake-up, signal |
10H |
| 4 |
Video, signal |
9H |
| 5 |
Front central operating unit, signal |
8F |
| 6 |
Audio/COMAND display, signal |
11D |
| 7 |
Audio, signal |
15F |
| 7 |
Audio, signal |
12H |
| 7 |
Audio, signal |
17K |
| 7 |
Audio, signal |
21G |
| 7 |
Audio, signal |
22H |
| 8 |
Speaker, actuation |
20J |
| 8 |
Speaker, actuation |
22J |
| 8 |
Speaker, actuation |
17E |
| A2/13 |
Sound amplifier |
21J |

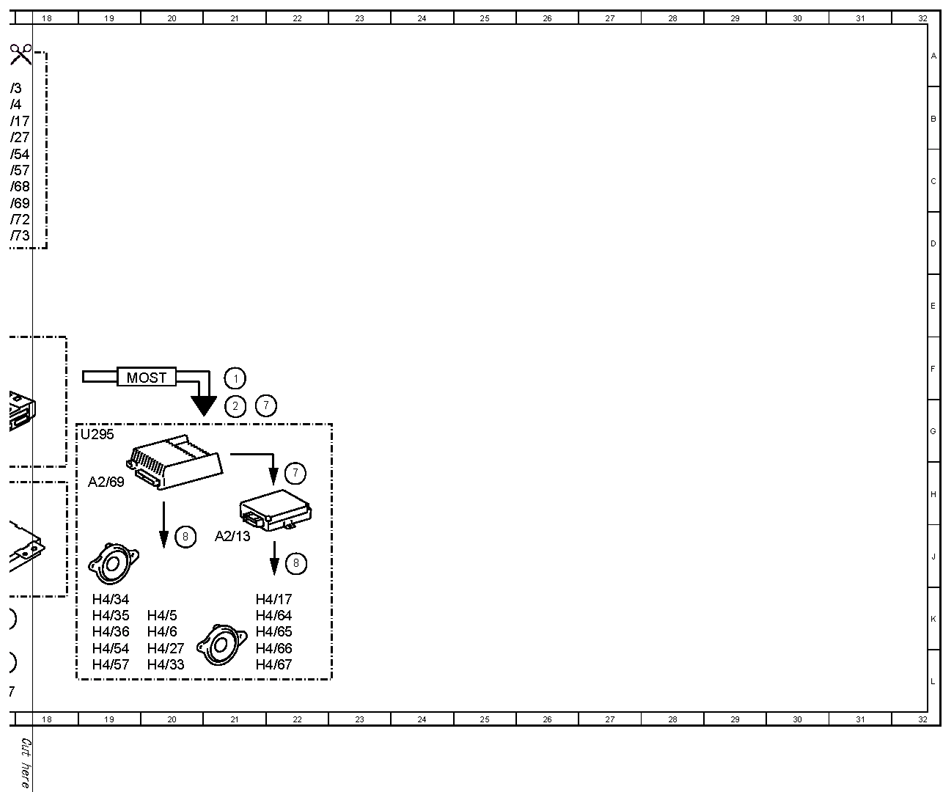

| A2/69 |
Digital sound processor |
19H |
| A40/10 |
SPLITVIEW display |
11B |

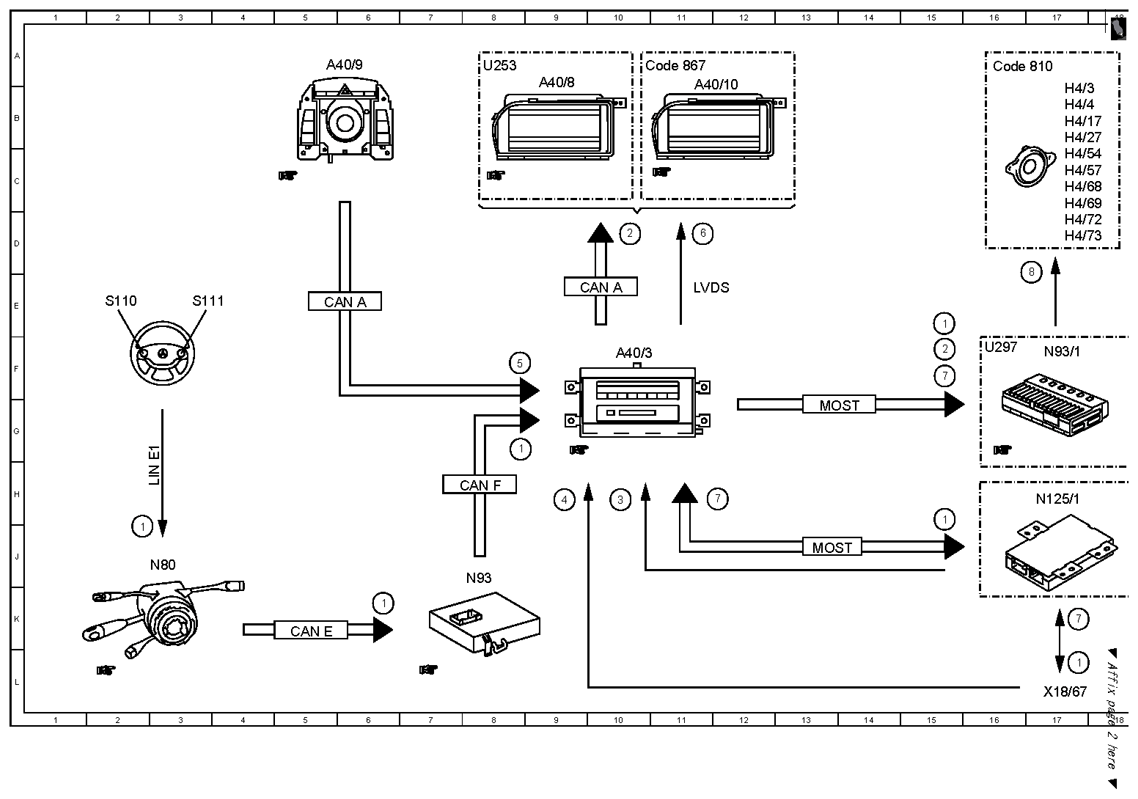

| A40/3 |
COMAND control unit |
10F |
| A40/8 |
COMAND display |
9B |
| A40/9 |
Front central operating unit |
5A |
| CAN A |
Telematics CAN |
5E |
| CAN A |
Telematics CAN |
10E |
| CAN E |
Chassis CAN |
5K |
| CAN F |
Central CAN |
8H |
| Code 810 |
Sound system |
16A |
| Code 867 |
SPLITVIEW |
10A |
| H4/17 |
Bass module speaker |
21K |
| H4/17 |
Bass module speaker |
17B |
| H4/27 |
Center cockpit speaker (centerfill) |
20L |
| H4/27 |
Center cockpit speaker (centerfill) |
17B |
| H4/3 |
Left rear door speaker group |
17B |
| H4/33 |
Left front door tweeter |
20L |
| H4/34 |
Right front door tweeter |
19K |
| H4/35 |
Left rear door tweeter |
19K |
| H4/36 |
Right rear door tweeter |
19K |
| H4/4 |
Right rear door speaker group |
17B |
| H4/5 |
Left front door speaker |
20K |
| H4/54 |
Left rear surround speaker |
19L |
| H4/54 |
Left rear surround speaker |
17C |
| H4/57 |
Right rear surround speaker |
19L |
| H4/57 |
Right rear surround speaker |
17C |
| H4/6 |
Right front door speaker |
20K |
| H4/64 |
Left front door woofer |
21K |
| H4/65 |
Right front door woofer |
21K |
| H4/66 |
Left rear door woofer |
21L |
| H4/67 |
Right rear door woofer |
21L |
| H4/68 |
Left front door Sound tweeter |
17C |
| H4/69 |
Right front door Sound tweeter |
17C |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
17D |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
17D |
| LIN E1 |
Steering LIN |
3H |
| LVDS |
Low voltage differential signal |
11E |
| MOST |
Media Oriented System Transport |
13J |
| MOST |
Media Oriented System Transport |
13G |
| MOST |
Media Oriented System Transport |
19F |
| N125/1 |
Media interface control unit |
17H |
| N80 |
Steering column module |
3J |
| N93 |
Central gateway control unit |
8J |
| N93/1 |
Audio tuner control unit |
17F |
| S110 |
Left multifunction steering wheel button group |
2E |
| S111 |
Right multifunction steering wheel button group |
3E |
| U253 |
Not valid for SPLITVIEW display |
8A |
| U295 |
Valid for expanded sound system |
19G |
| U297 |
Not valid for USA with expanded sound system |
16F |
| X18/67 |
Media interface connector 1 |
17L |
