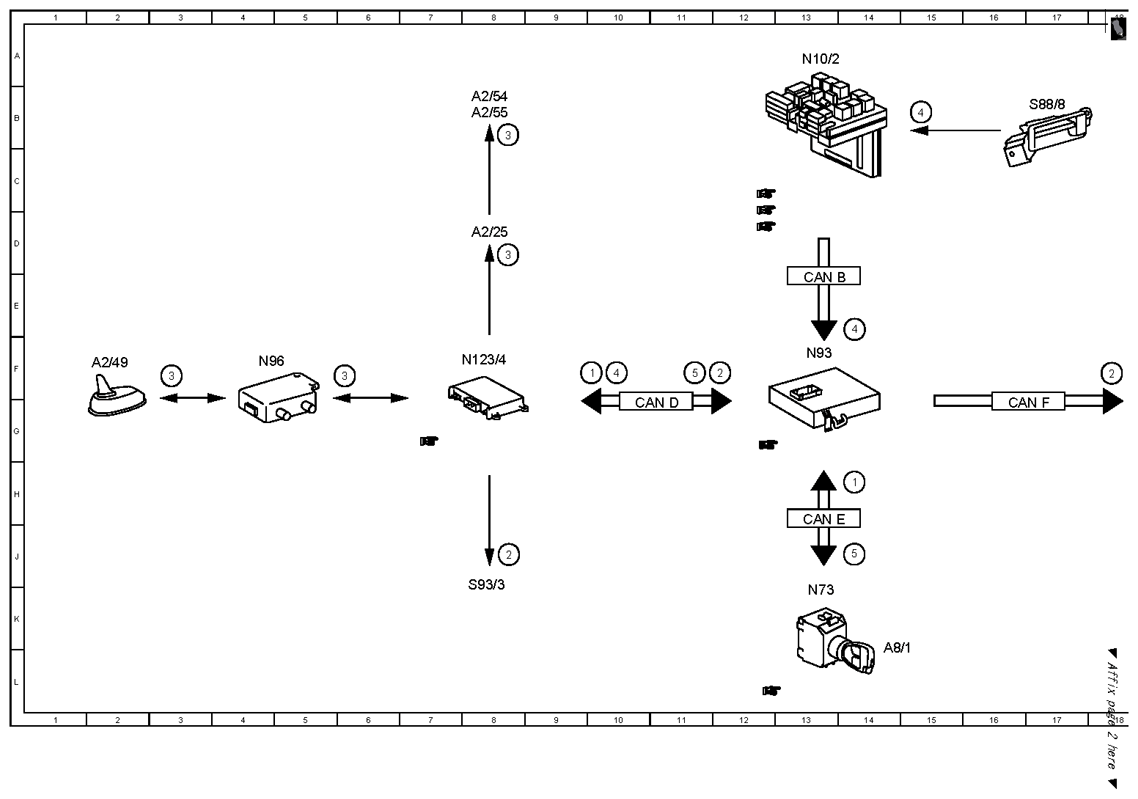

| 1 |
Circuit 15R/circuit 15, status ON |
|
| 1 |
Circuit 15R/circuit 15, status ON |
|
| 2 |
Status indication, signal |
|
| 2 |
Status indication, signal |
|
| 2 |
Status indication, signal |
|
| 3 |
Telephone, signal |
|
| 3 |
Telephone, signal |
|
| 3 |
Telephone, signal |
|
| 3 |
Telephone, signal |
|
| 4 |
Trunk lid open/close switch, status |
|
| 4 |
Trunk lid open/close switch, status |
|
| 4 |
Trunk lid open/close switch, status |
|
| 5 |
Lock central locking, signal |
|
| 5 |
Lock central locking, signal |
|
| A1 |
Instrument cluster |
|
| A2/25 |
Emergency call system antenna splitter |
|
| A2/49 |
Telephone and GPS roof antenna |
|
| A2/54 |
Emergency call system left backup antenna |
|
| A2/55 |
Emergency call system right backup antenna |
|
| A8/1 |
Transmitter key |
|
| CAN B |
Interior CAN |
|
| CAN D |
Diagnostic CAN |
|
| CAN E |
Chassis CAN |
|
| CAN F |
Central CAN |
|
| N10/2 |
Rear SAM control unit with fuse and relay module |
|
| N123/4 |
Emergency call system control unit |
|
| N73 |
EIS [EZS] control unit |
|
| N93 |
Central gateway control unit |
|
| N96 |
Frequency switchover control unit |
|
| S88/8 |
Trunk lid external operation switch |
|
| S93/3 |
SOS pushbutton switch |
|
