Wiring diagram voice control system (VCS) control module - PE82.70-U-2102-97SAA

Code:	Designation:	Position:
A67b1	Hands-free system microphone group	7L
A67b1	Hands-free system microphone group	11L
A67b1x1	Hands-free system microphone group connector	5J
A67b1x1	Hands-free system microphone group connector	10H
MOST	Media Oriented System Transport	20C
N10/2	Rear SAM control unit with fuse and relay module	3L
N123/4	Emergency call system control unit	15L
N41/3	Voice control system (VCS [SBS]) control unit	4A
N41/3	Voice control system (VCS [SBS]) control unit	18A
N41/3	Voice control system (VCS [SBS]) control unit	11A
W6	Ground (left wheelhouse in luggage compartment)	3E
X25/8	Overhead control panel and FFS [RBA] connector	5E
X25/8	Overhead control panel and FFS [RBA] connector	10E

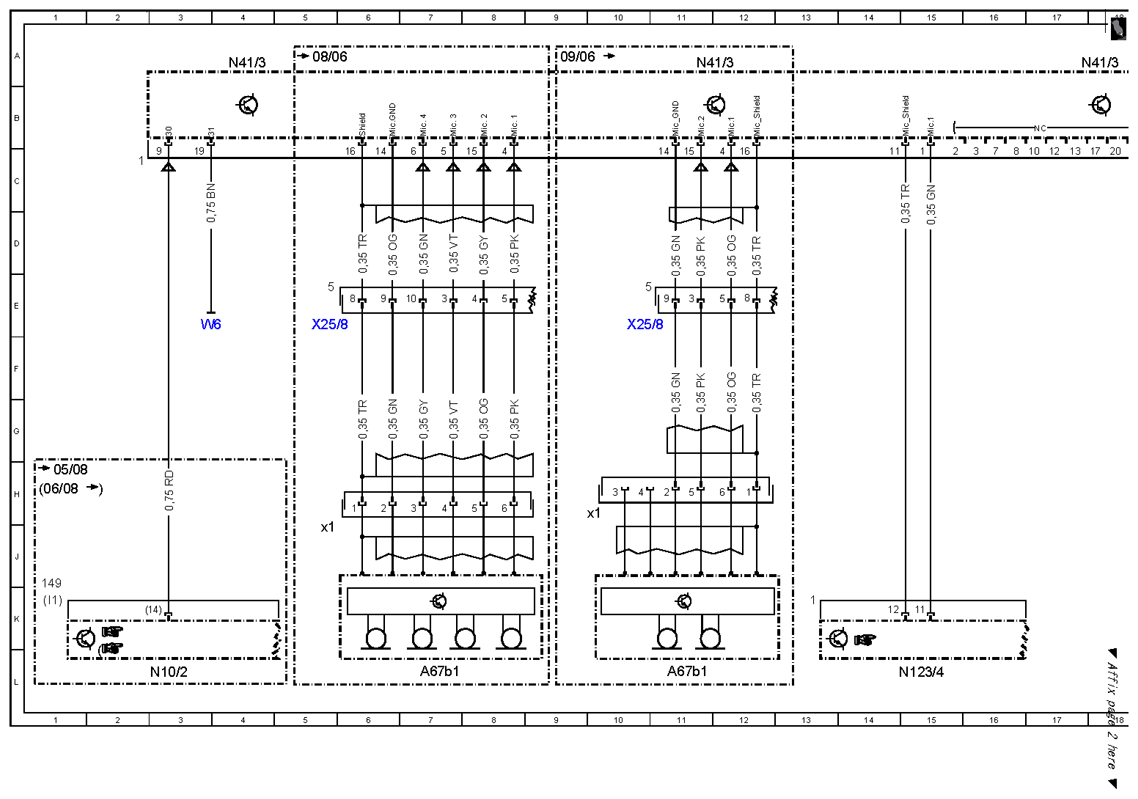

Fig 1: VCS Control Module Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: VCS Control Module Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA
