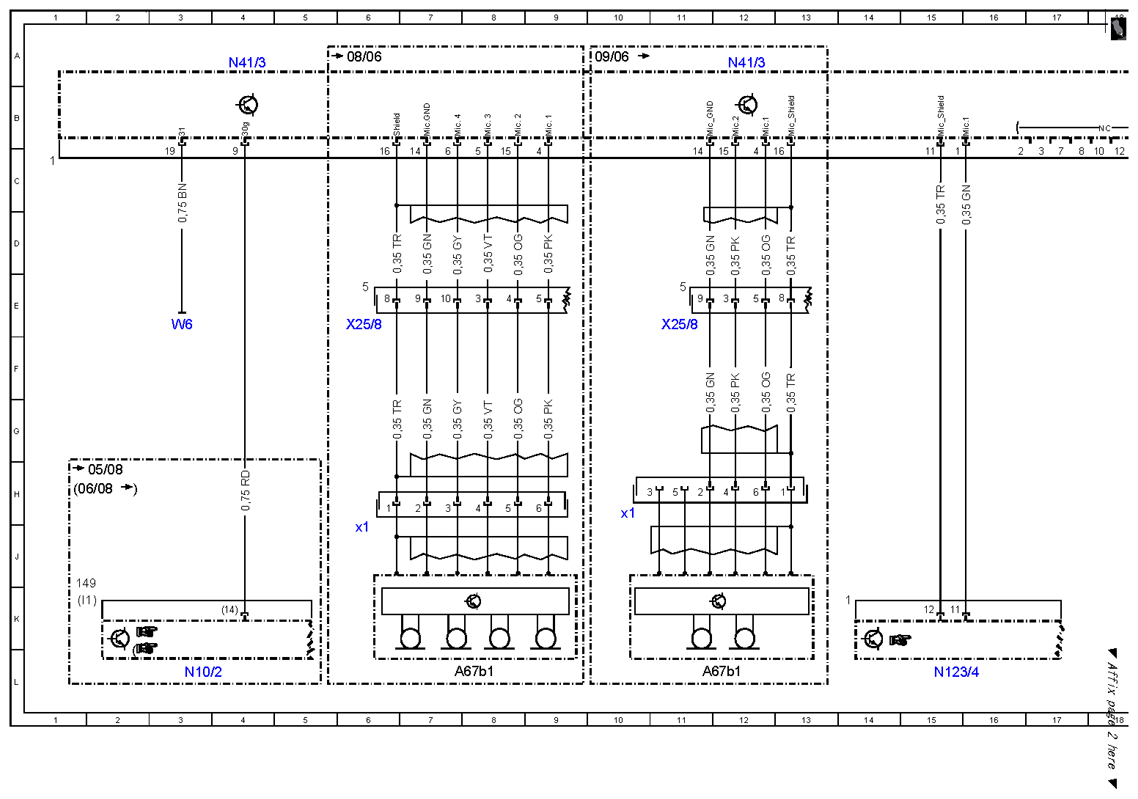

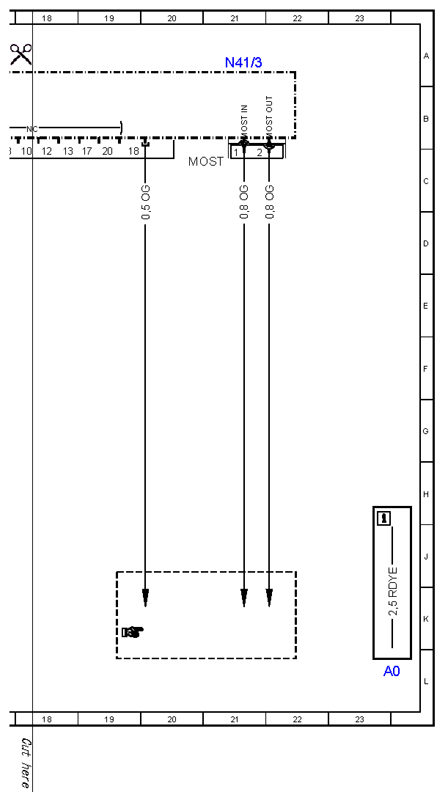

| A0 |
Color code key |
23L |
| A67b1 |
Hands-free system microphone group |
8L |
| A67b1 |
Hands-free system microphone group |
11L |
| A67b1x1 |
Hands-free system microphone group connector |
6J |
| A67b1x1 |
Hands-free system microphone group connector |
10H |
| MOST |
Media Oriented System Transport |
21C |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N123/4 |
Emergency call system control unit |
15L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
4A |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
12A |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
21A |
| W6 |
Ground (left wheelhouse in luggage compartment) |
3E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
6E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
11E |
