| 1 |
Telephone, signal |
|
| 1 |
Telephone, signal |
|
| 1 |
Telephone, signal |
|
| 1 |
Telephone, signal |
|
| 1 |
Telephone, signal |
|
| 2 |
Circuit 15R/circuit 15, status ON |
|
| 2 |
Circuit 15R/circuit 15, status ON |
|
| 3 |
|
|
| 3 |
|
|
| 4 |
Switch on/off, signal |
|
| 4 |
Switch on/off, signal |
|
| 5 |
Audio/COMAND display, signal |
|
| 6 |
|
|
| 7 |
Switch-on request, signal |
|

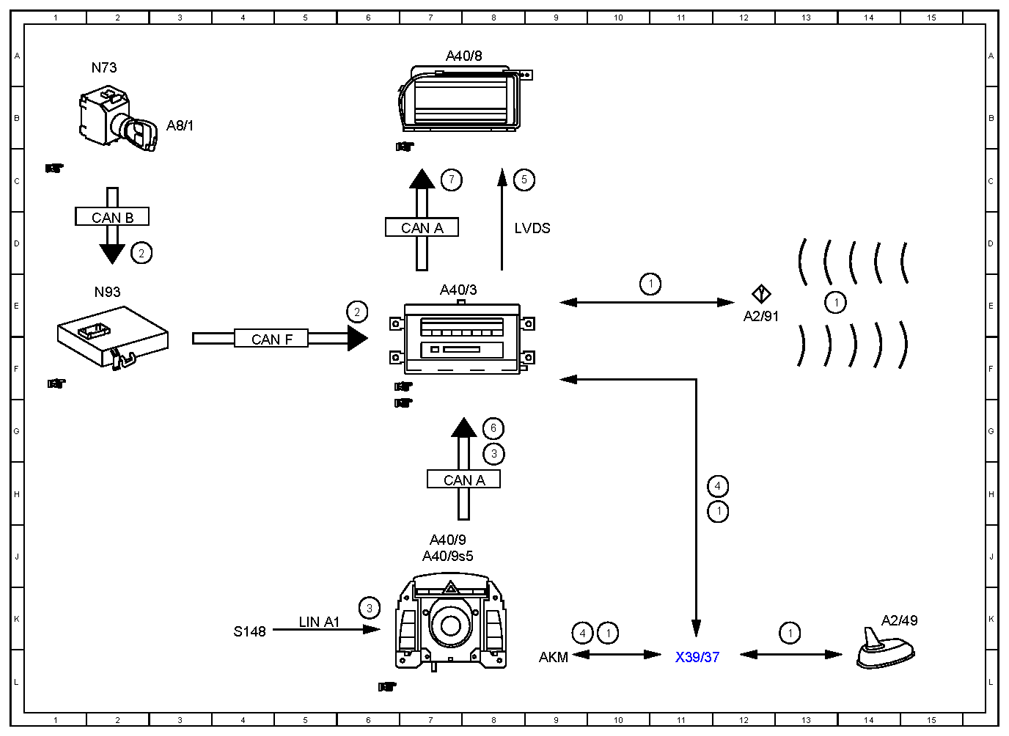

| A2/49 |
Telephone and GPS roof antenna |
|
| A2/91 |
Bluetooth antenna |
|
| A40/3 |
COMAND control unit |
|
| A40/8 |
COMAND display |
|
| A40/9 |
Front central operating unit |
|
| A40/9s5 |
Telephone/navigation quick select button |
|
| A8/1 |
Transmitter key |
|
| CAN A |
Telematics CAN |
|
| CAN A |
Telematics CAN |
|
| CAN B |
Interior CAN |
|
| CAN F |
Central CAN |
|
| LIN A1 |
COU [ZBE] LIN |
|
| LVDS |
Low voltage differential signal |
|
| N73 |
EIS [EZS] control unit |
|
| N93 |
Central gateway control unit |
|
| S148 |
Center console button group |
|
| X39/37 |
CTEL separation point |
|
