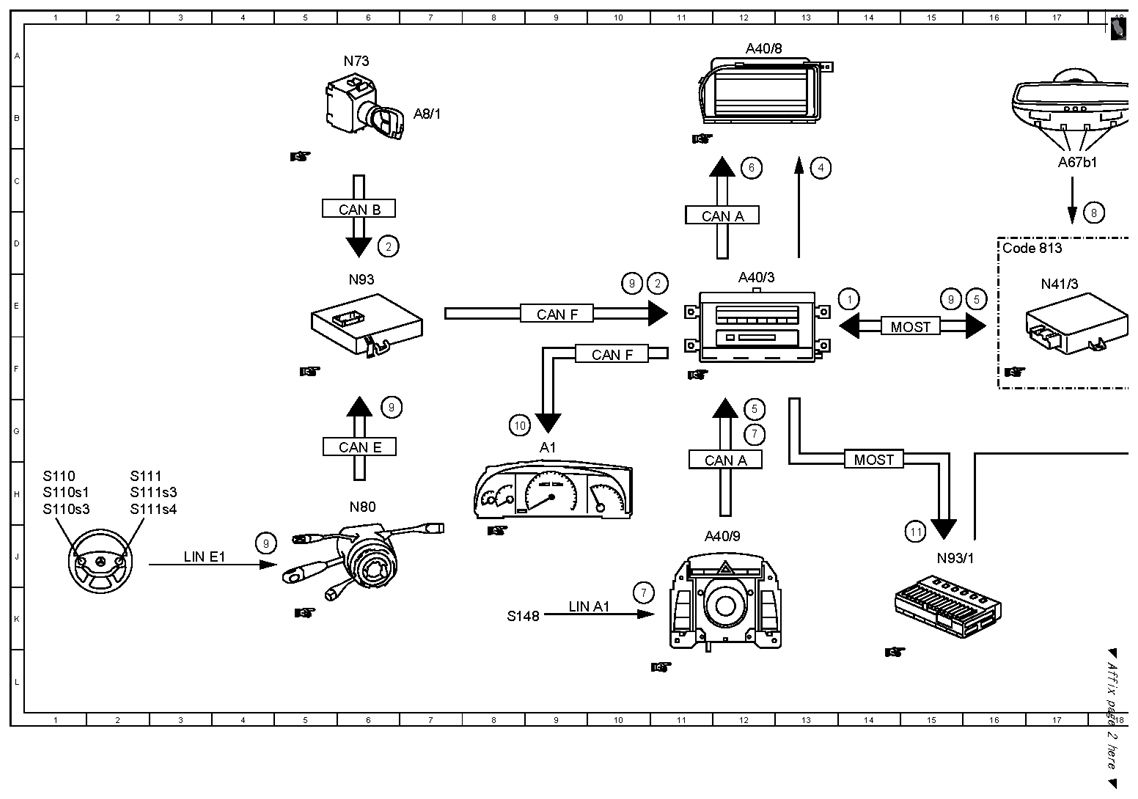

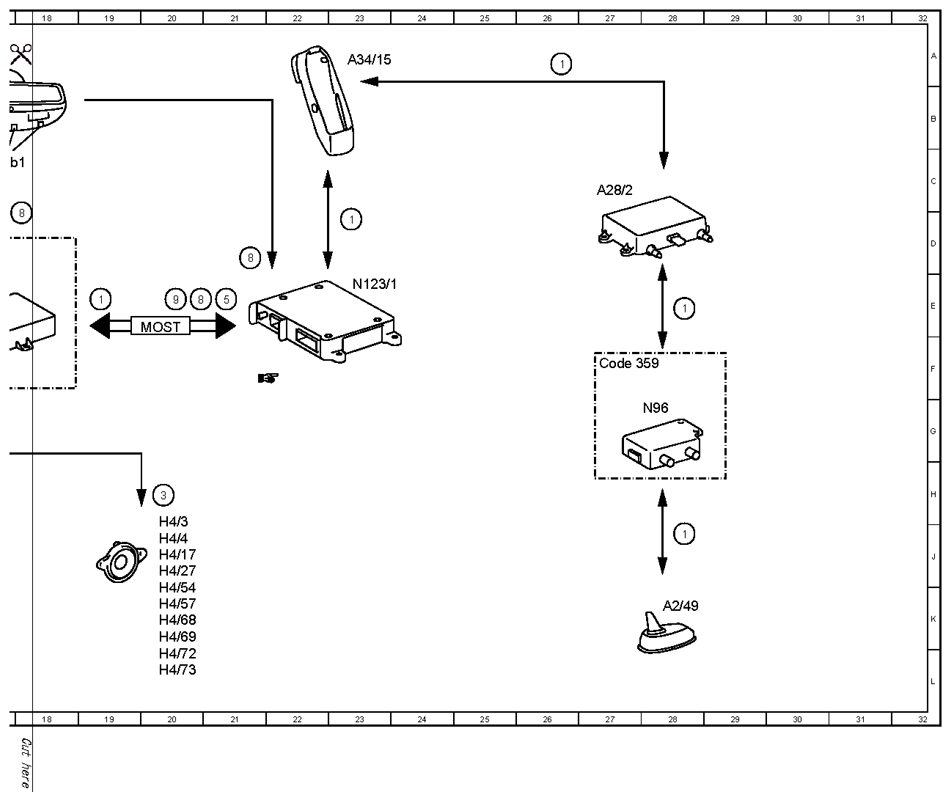

| 1 |
Telephone, signal |
28J |
| 1 |
Telephone, signal |
23D |
| 1 |
Telephone, signal |
28E |
| 1 |
Telephone, signal |
26A |
| 1 |
Telephone, signal |
19E |
| 1 |
Telephone, signal |
14E |
| 10 |
Instrument cluster, actuation |
8G |
| 11 |
Audio, signal |
15J |
| 2 |
Circuit 15R/circuit 15, status ON |
6D |
| 2 |
Circuit 15R/circuit 15, status ON |
11E |
| 3 |
Speaker, actuation |
20H |
| 4 |
Audio/COMAND display, signal |
13C |
| 5 |
Front central operating unit, signal |
12G |
| 5 |
Front central operating unit, signal |
21E |
| 5 |
Front central operating unit, signal |
16E |
| 6 |
Switch-on request, signal |
12C |
| 7 |
Center console button group, signal |
10K |
| 7 |
Center console button group, signal |
12G |
| 8 |
VCS microphone, signal |
18D |
| 8 |
VCS microphone, signal |
20E |
| 8 |
VCS microphone, signal |
21D |
| 9 |
Multifunction steering wheel button group, signal |
10E |
| 9 |
Multifunction steering wheel button group, signal |
4J |
| 9 |
Multifunction steering wheel button group, signal |
6G |
| 9 |
Multifunction steering wheel button group, signal |
15E |
| 9 |
Multifunction steering wheel button group, signal |
20E |
| A1 |
Instrument cluster |
9G |
| A2/49 |
Telephone and GPS roof antenna |
28K |
| A28/2 |
Portable CTEL antenna amplifier |
27C |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
23A |
| A40/3 |
COMAND control unit |
12E |
| A40/8 |
COMAND display |
12A |
| A40/9 |
Front central operating unit |
12J |
| A67b1 |
Hands-free system microphone group |
17C |
| A8/1 |
Transmitter key |
7B |
| CAN A |
Telematics CAN |
12D |
| CAN A |
Telematics CAN |
12H |
| CAN B |
Interior CAN |
6D |
| CAN E |
Chassis CAN |
6G |
| CAN F |
Central CAN |
9E |
| CAN F |
Central CAN |
10F |
| Code 359 |
TELEAID emergency call system |
27F |
| Code 813 |
Voice control system (VCS [SBS]) |
16D |
| H4/17 |
Bass module speaker |
20J |
| H4/27 |
Center cockpit speaker (centerfill) |
20J |
| H4/3 |
Left rear door speaker group |
20J |
| H4/4 |
Right rear door speaker group |
20J |
| H4/54 |
Left rear surround speaker |
20K |
| H4/57 |
Right rear surround speaker |
20K |
| H4/68 |
Left front door Sound tweeter |
20K |
| H4/69 |
Right front door Sound tweeter |
20K |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
20L |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
20L |
| LIN A1 |
COU [ZBE] LIN |
9K |
| LIN E1 |
Steering LIN |
3J |
| MOST |
Media Oriented System Transport |
15E |
| MOST |
Media Oriented System Transport |
20E |
| MOST |
Media Oriented System Transport |
14H |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
23E |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
17E |
| N73 |
EIS [EZS] control unit |
6A |
| N80 |
Steering column module |
6H |
| N93 |
Central gateway control unit |
6E |
| N93/1 |
Audio tuner control unit |
15J |
| N96 |
Frequency switchover control unit |
28G |
| S110 |
Left multifunction steering wheel button group |
1H |
| S110s1 |
Scroll forward/back button |
1H |
| S110s3 |
System selection button |
1H |
| S111 |
Right multifunction steering wheel button group |
2H |
| S111s3 |
Accept/terminate phone call button |
2H |
| S111s4 |
VCS [SBS] on button |
2H |
| S148 |
Center console button group |
8K |
