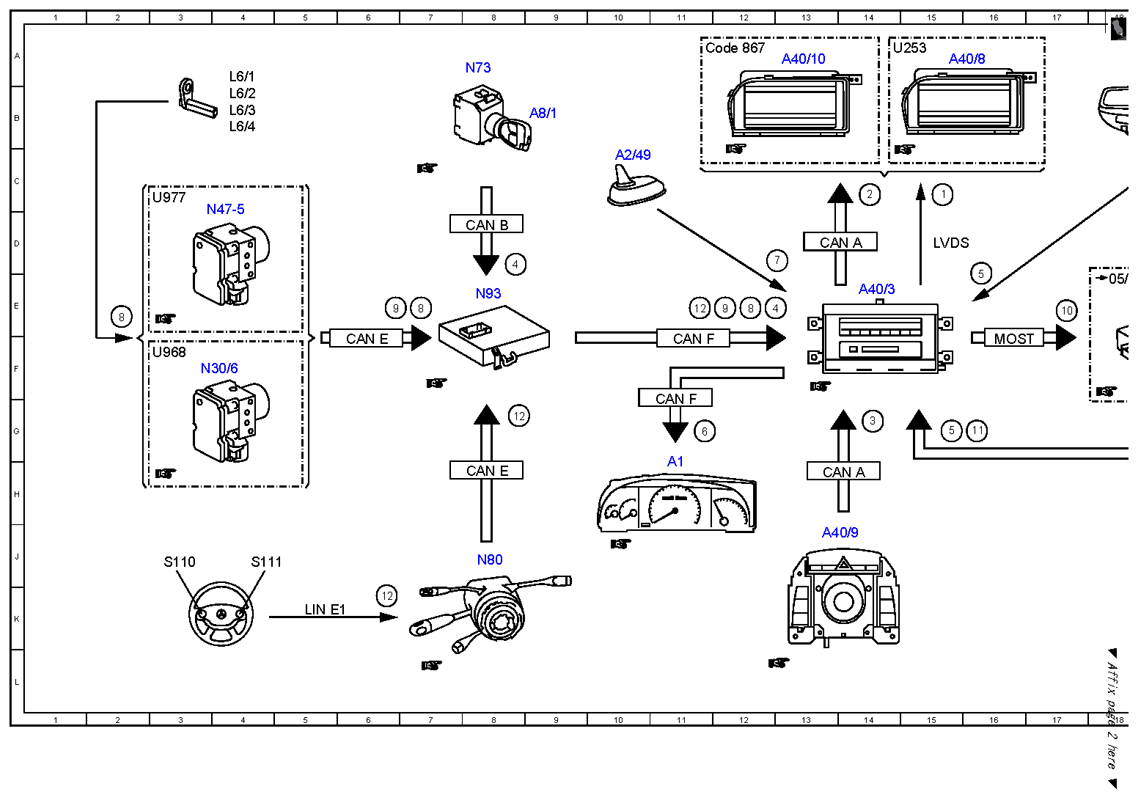

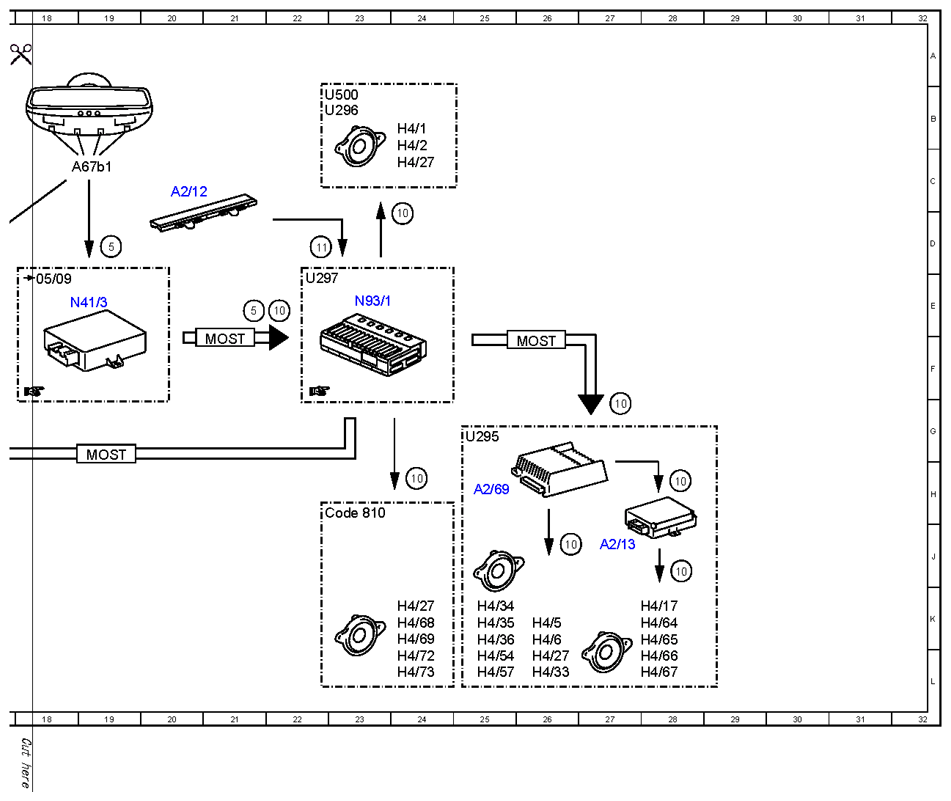

| 1 |
Audio/COMAND display, signal |
15C |
| 10 |
Speaker, actuation |
17E |
| 10 |
Speaker, actuation |
24D |
| 10 |
Speaker, actuation |
24H |
| 10 |
Speaker, actuation |
22E |
| 10 |
Speaker, actuation |
27G |
| 10 |
Speaker, actuation |
26J |
| 10 |
Speaker, actuation |
28H |
| 10 |
Speaker, actuation |
28J |
| 11 |
FM antenna, signal |
16G |
| 11 |
FM antenna, signal |
22D |
| 12 |
Multifunction steering wheel button group, signal |
8G |
| 12 |
Multifunction steering wheel button group, signal |
6K |
| 12 |
Multifunction steering wheel button group, signal |
11E |
| 2 |
Switch-on request, signal |
14C |
| 3 |
Front central operating unit, signal |
14G |
| 4 |
Circuit 15R/circuit 15, status ON |
8D |
| 4 |
Circuit 15R/circuit 15, status ON |
12E |
| 5 |
Microphone, signal |
19D |
| 5 |
Microphone, signal |
21E |
| 5 |
Microphone, signal |
15G |
| 5 |
Microphone, signal |
16E |
| 6 |
Instrument cluster, actuation |
11G |
| 7 |
GPS, signal |
13D |
| 8 |
Wheel speed, signal |
12E |
| 8 |
Wheel speed, signal |
7E |
| 8 |
Wheel speed, signal |
2E |
| 9 |
Wheel rotation direction, signal |
12E |
| 9 |
Wheel rotation direction, signal |
6E |
| A1 |
Instrument cluster |
11H |
| A2/12 |
Rear window antenna amplifier module |
20C |
| A2/13 |
Sound amplifier |
27J |
| A2/49 |
Telephone and GPS roof antenna |
10C |
| A2/69 |
Digital sound processor |
25H |
| A40/10 |
SPLITVIEW display |
13A |
| A40/3 |
COMAND control unit |
14E |
| A40/8 |
COMAND display |
15A |
| A40/9 |
Front central operating unit |
13J |
| A67b1 |
Hands-free system microphone group |
19C |
| A8/1 |
Transmitter key |
9B |
| CAN A |
Telematics CAN |
13D |
| CAN A |
Telematics CAN |
13H |
| CAN B |
Interior CAN |
8D |
| CAN E |
Chassis CAN |
8H |
| CAN E |
Chassis CAN |
6F |
| CAN F |
Central CAN |
11F |
| CAN F |
Central CAN |
11G |
| Code 810 |
Sound system |
22H |
| Code 867 |
SPLITVIEW |
11A |
| H4/1 |
Left front door speaker group |
24B |
| H4/17 |
Bass module speaker |
27K |
| H4/2 |
Right front door speaker group |
24C |
| H4/27 |
Center cockpit speaker (centerfill) |
24C |
| H4/27 |
Center cockpit speaker (centerfill) |
24K |
| H4/27 |
Center cockpit speaker (centerfill) |
26L |
| H4/33 |
Left front door tweeter |
26L |
| H4/34 |
Right front door tweeter |
25K |
| H4/35 |
Left rear door tweeter |
25K |
| H4/36 |
Right rear door tweeter |
25K |
| H4/5 |
Left front door speaker |
26K |
| H4/54 |
Left rear surround speaker |
25L |
| H4/57 |
Right rear surround speaker |
25L |
| H4/6 |
Right front door speaker |
26K |
| H4/64 |
Left front door woofer |
27K |
| H4/65 |
Right front door woofer |
27K |
| H4/66 |
Left rear door woofer |
27L |
| H4/67 |
Right rear door woofer |
27L |
| H4/68 |
Left front door Sound tweeter |
24K |
| H4/69 |
Right front door Sound tweeter |
24K |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
24L |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
24L |
| L6/1 |
Left front rpm sensor |
4A |
| L6/2 |
Right front rpm sensor |
4B |
| L6/3 |
Left rear rpm sensor |
4B |
| L6/4 |
right rear rpm sensor |
4B |
| LIN E1 |
Steering LIN |
5K |
| LVDS |
Low voltage differential signal |
15D |
| MOST |
Media Oriented System Transport |
16F |
| MOST |
Media Oriented System Transport |
19G |
| MOST |
Media Oriented System Transport |
21F |
| MOST |
Media Oriented System Transport |
26F |
| N30/6 |
Regenerative braking system control unit |
3F |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
19E |
| N47-5 |
ESP control unit |
3D |
| N73 |
EIS [EZS] control unit |
8A |
| N80 |
Steering column module |
8J |
| N93 |
Central gateway control unit |
8E |
| N93/1 |
Audio tuner control unit |
23E |
| S110 |
Left multifunction steering wheel button group |
3J |
| S111 |
Right multifunction steering wheel button group |
4J |
| U253 |
Not valid for SPLITVIEW display |
14A |
| U295 |
Valid for expanded sound system |
25G |
| U296 |
Not valid for expanded sound system |
22B |
| U297 |
Not valid for USA with expanded sound system |
22E |
| U500 |
Not valid for Sound System |
22B |
| U968 |
Valid for mild hybrid drive |
3F |
| U977 |
Not valid for mild hybrid drive |
3C |
