| 1 |
Telephone, signal |
|
| 1 |
Telephone, signal |
|
| 1 |
Telephone, signal |
|
| 1 |
Telephone, signal |
|
| 1 |
Telephone, signal |
|
| 1 |
Telephone, signal |
|

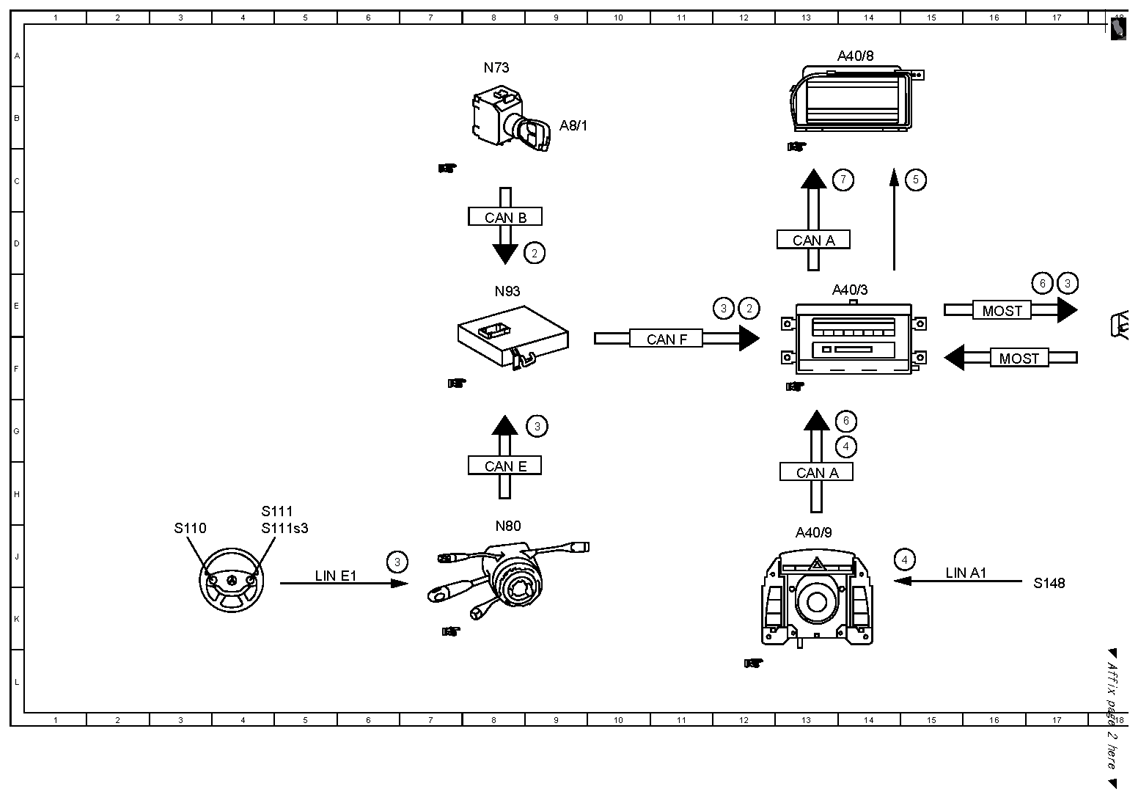

| 2 |
Circuit 15R/circuit 15, status ON |
|
| 2 |
Circuit 15R/circuit 15, status ON |
|
| 3 |
Multifunction steering wheel button group, signal |
|
| 3 |
Multifunction steering wheel button group, signal |
|
| 3 |
Multifunction steering wheel button group, signal |
|
| 3 |
Multifunction steering wheel button group, signal |
|
| 4 |
|
|
| 4 |
|
|
| 5 |
Audio/COMAND display, signal |
|
| 6 |
|
|
| 6 |
|
|
| 7 |
Switch-on request, signal |
|

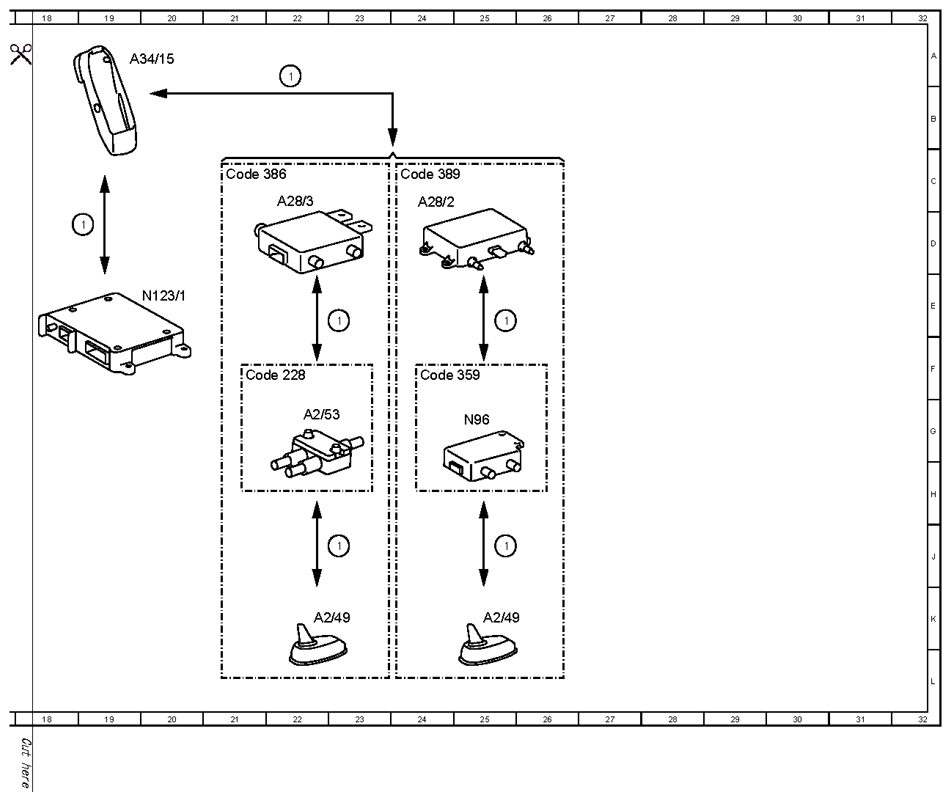

| A2/49 |
Telephone and GPS roof antenna |
|
| A2/49 |
Telephone and GPS roof antenna |
|
| A2/53 |
Telephone/portable CTEL/STH radio remote control antenna splitter |
|
| A28/2 |
Portable CTEL antenna amplifier |
|
| A28/3 |
E-net compensator |
|
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
|
| A40/3 |
COMAND control unit |
|
| A40/8 |
COMAND display |
|
| A40/9 |
Front central operating unit |
|
| A8/1 |
Transmitter key |
|
| CAN A |
Telematics CAN |
|
| CAN A |
Telematics CAN |
|
| CAN B |
Interior CAN |
|
| CAN E |
Chassis CAN |
|
| CAN F |
Central CAN |
|
| Code 228 |
Stationary heater |
|
| Code 359 |
TELEAID emergency call system |
|
| Code 386 |
Mobile phone preinstallation with universal interface |
|
| Code 389 |
Mobile phone preinstallation with universal interface, USA/Canada |
|
| LIN A1 |
COU [ZBE] LIN |
|
| LIN E1 |
Steering LIN |
|
| MOST |
Media Oriented System Transport |
|
| MOST |
Media Oriented System Transport |
|
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
|
| N73 |
EIS [EZS] control unit |
|
| N80 |
Steering column module |
|
| N93 |
Central gateway control unit |
|
| N96 |
Frequency switchover control unit |
|
| S110 |
Left multifunction steering wheel button group |
|
| S111 |
Right multifunction steering wheel button group |
|
| S111s3 |
Accept/terminate phone call button |
|
| S148 |
Center console button group |
|
