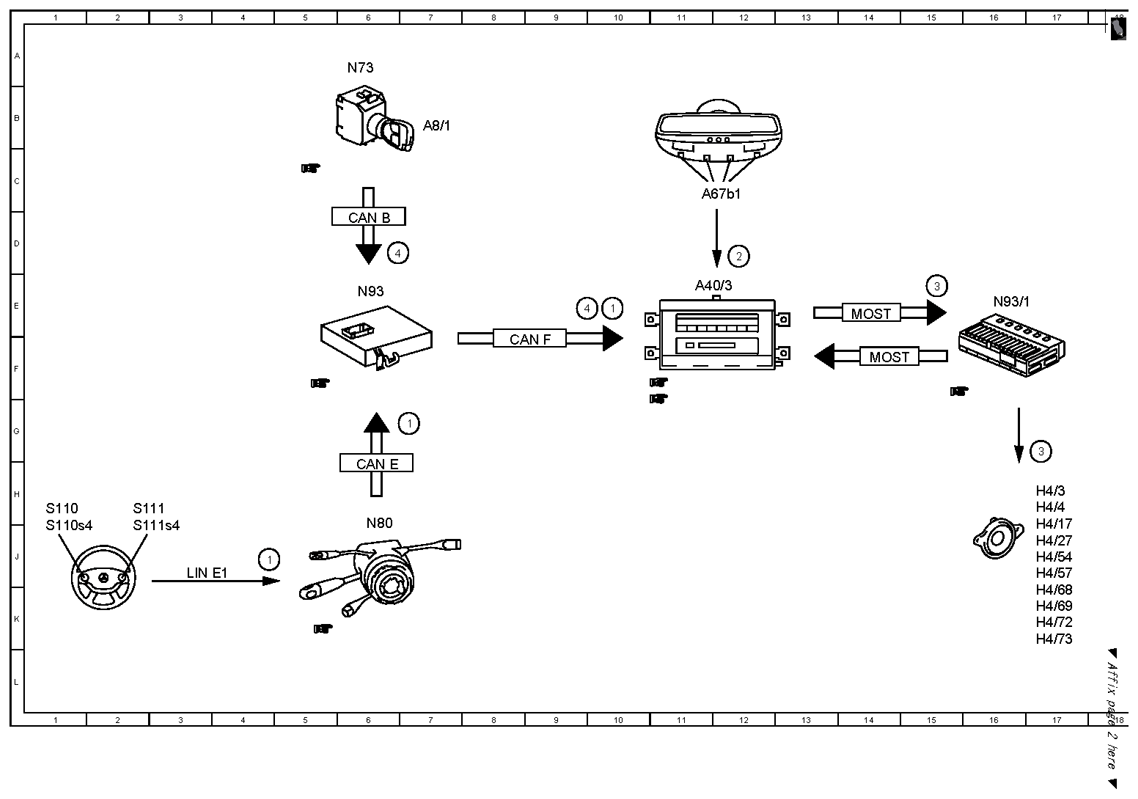

| 1 |
Multifunction steering wheel button group, signal |
|
| 1 |
Multifunction steering wheel button group, signal |
|
| 1 |
Multifunction steering wheel button group, signal |
|
| 2 |
Microphone, signal |
|
| 3 |
Speaker, actuation |
|
| 3 |
Speaker, actuation |
|
| 4 |
Circuit 15R/circuit 15, status ON |
|
| 4 |
Circuit 15R/circuit 15, status ON |
|
| A40/3 |
COMAND control unit |
|
| A67b1 |
Hands-free system microphone group |
|
| A8/1 |
Transmitter key |
|
| CAN B |
Interior CAN |
|
| CAN E |
Chassis CAN |
|
| CAN F |
Central CAN |
|
| H4/17 |
Bass module speaker |
|
| H4/27 |
Center cockpit speaker (centerfill) |
|
| H4/3 |
Left rear door speaker group |
|
| H4/4 |
Right rear door speaker group |
|
| H4/54 |
Left rear surround speaker |
|
| H4/57 |
Right rear surround speaker |
|
| H4/68 |
Left front door Sound tweeter |
|
| H4/69 |
Right front door Sound tweeter |
|
| H4/72 |
Left front door Sound woofer and midrange speaker group |
|
| H4/73 |
Right front door Sound woofer and midrange speaker group |
|
| LIN E1 |
Steering LIN |
|
| MOST |
Media Oriented System Transport |
|
| N73 |
EIS [EZS] control unit |
|
| N80 |
Steering column module |
|
| N93 |
Central gateway control unit |
|
| N93/1 |
Audio tuner control unit |
|
| S110 |
Left multifunction steering wheel button group |
|
| S110s4 |
"Back" and SBS off button |
|
| S111 |
Right multifunction steering wheel button group |
|
| S111s4 |
VCS [SBS] on button |
|
