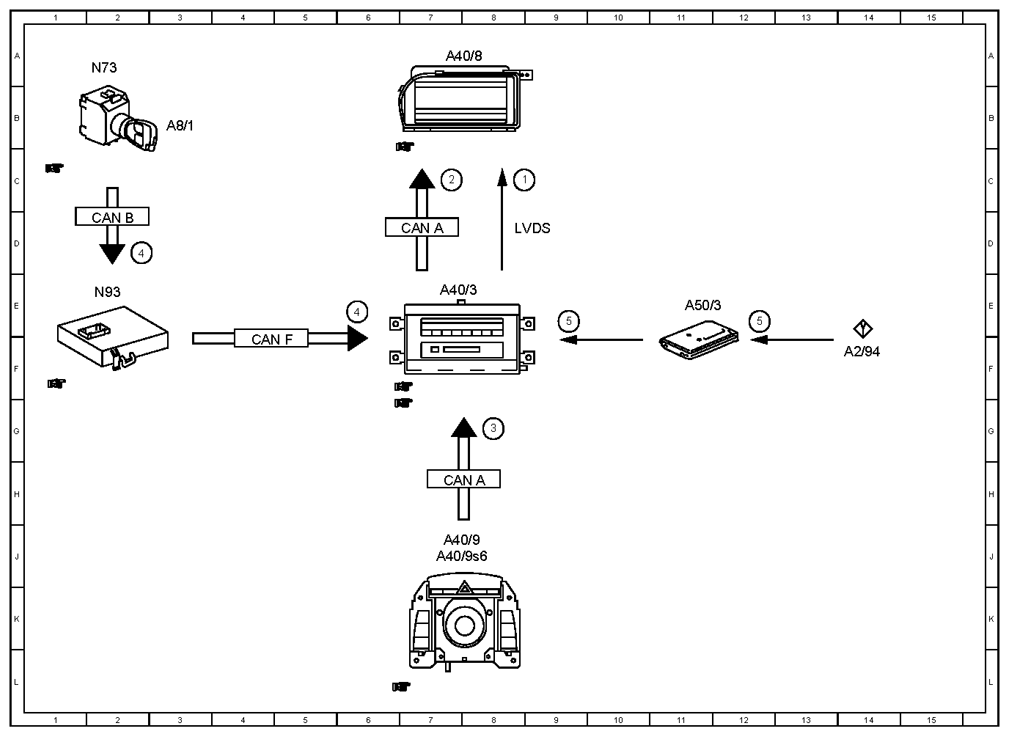

| 1 |
Audio/COMAND display, signal |
|
| 2 |
Switch-on request, signal |
|
| 3 |
|
|
| 4 |
Circuit 15R/circuit 15, status ON |
|
| 4 |
Circuit 15R/circuit 15, status ON |
|
| 5 |
Electronic Toll Collection (ETC), signal |
|
| 5 |
Electronic Toll Collection (ETC), signal |
|
| A2/94 |
Electronic toll collection (ETC) antenna |
|
| A40/3 |
COMAND control unit |
|
| A40/8 |
COMAND display |
|
| A40/9 |
Front central operating unit |
|
| A40/9s6 |
Button "ON" |
|
| A50/3 |
Electronic toll collection (ETC) control unit |
|
| A8/1 |
Transmitter key |
|
| CAN A |
Telematics CAN |
|
| CAN A |
Telematics CAN |
|
| CAN B |
Interior CAN |
|
| CAN F |
Central CAN |
|
| LVDS |
Low voltage differential signal |
|
| N73 |
EIS [EZS] control unit |
|
| N93 |
Central gateway control unit |
|
