| A0 |
Color code key |
32L |
| A40/3 |
COMAND control unit |
26L |
| F1/7 |
Left instrument panel fuse box |
3L |
| F1/7f100 |
Fuse 100 |
2K |
| MOST |
Media Oriented System Transport |
7C |

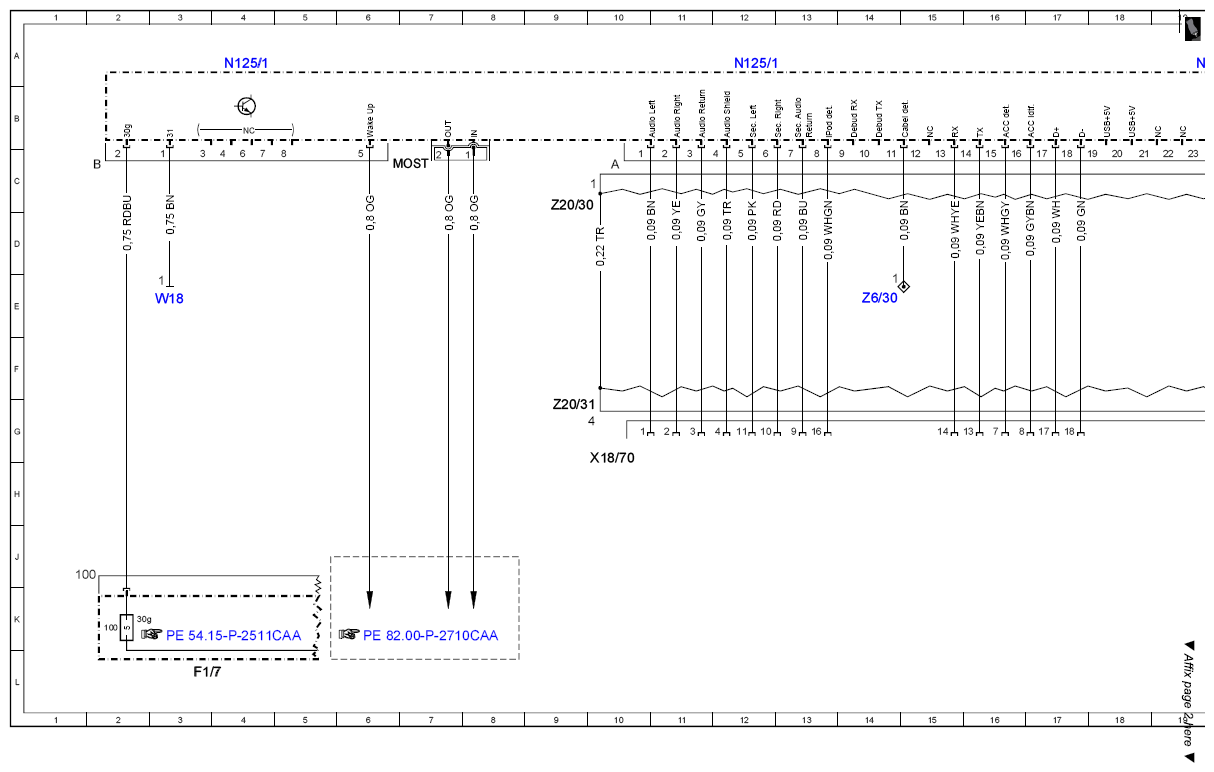

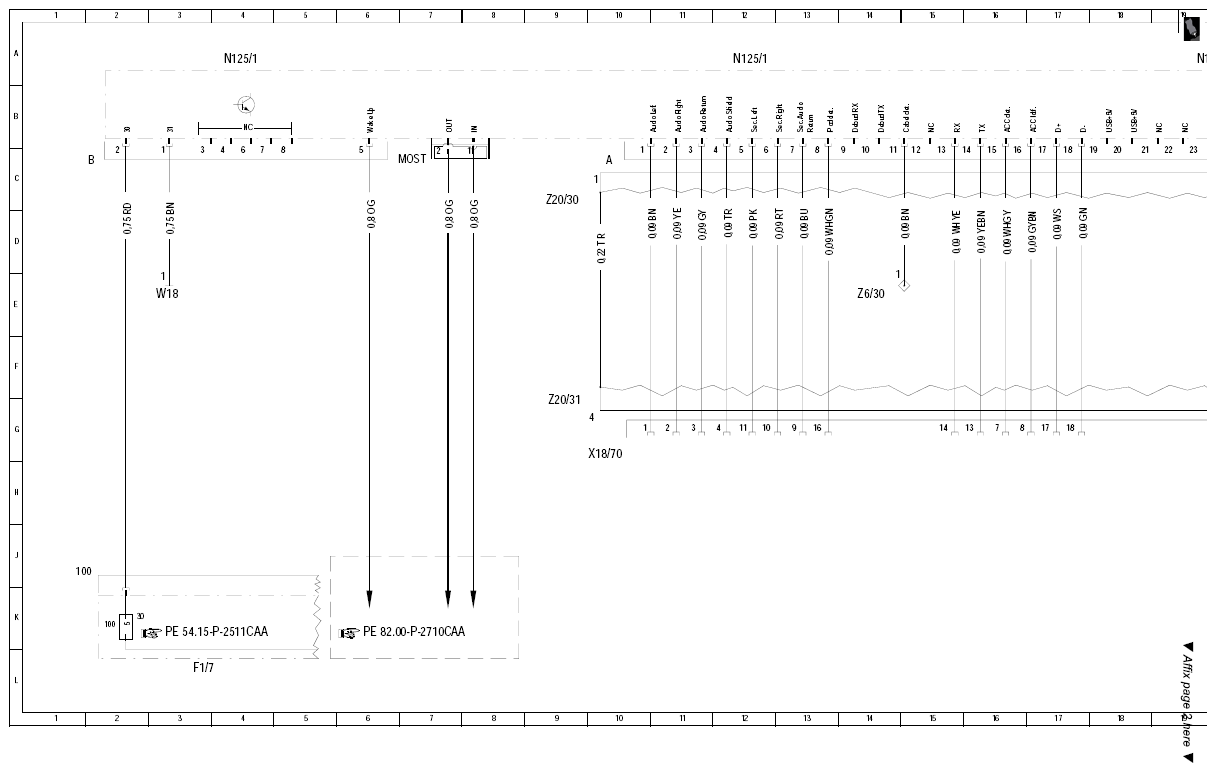

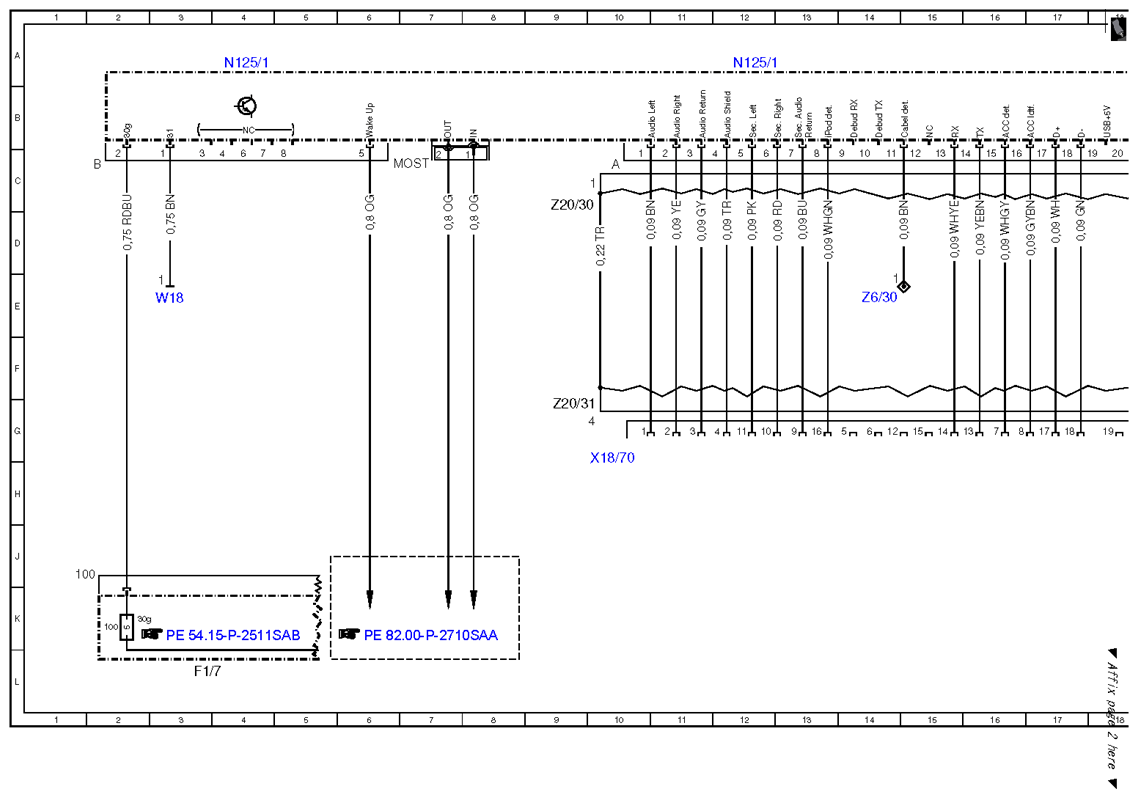

| N125/1 |
Media interface control unit |
4A |
| N125/1 |
Media interface control unit |
12A |
| N125/1 |
Media interface control unit |
19A |
| W18 |
Ground (left front seat crossmember) |
3E |

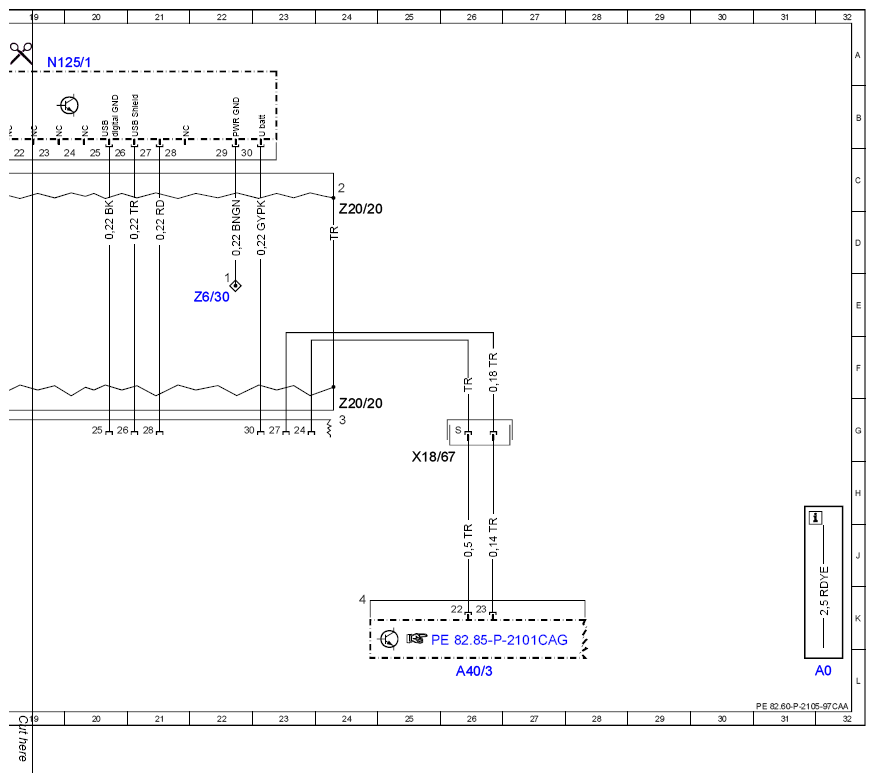

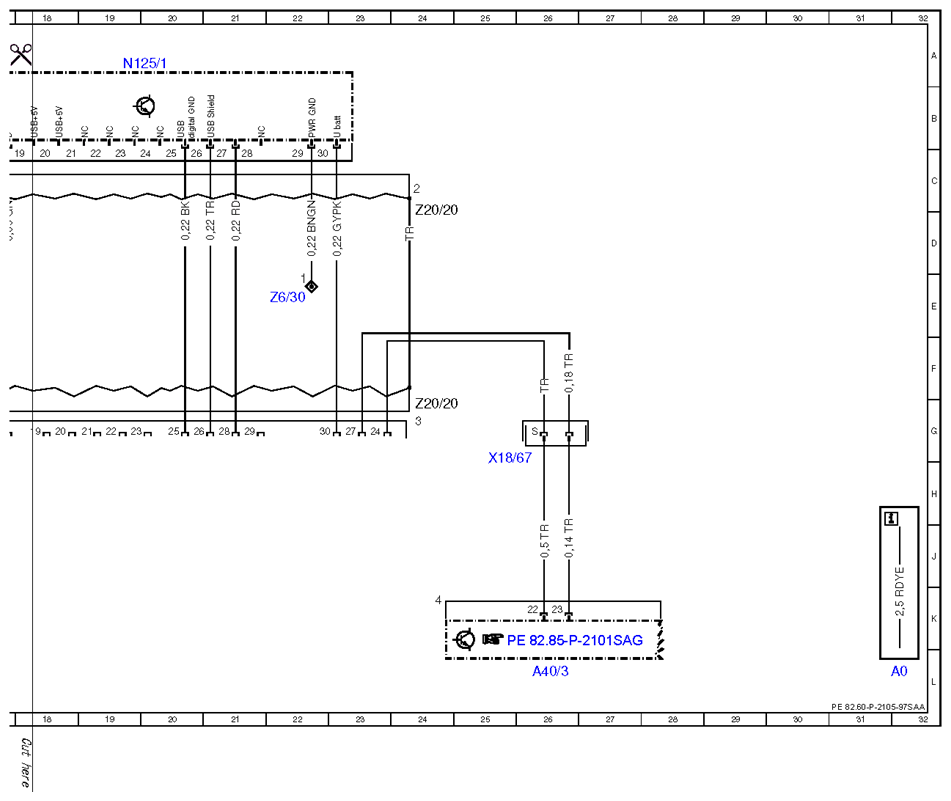

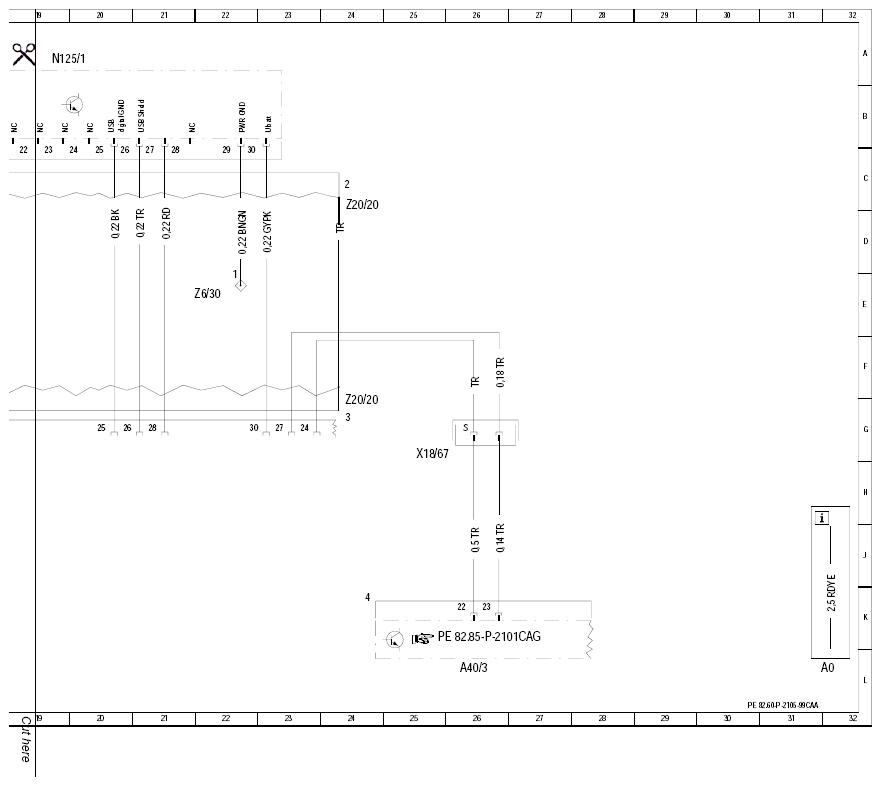

| X18/67 |
Media interface connector 1 |
25H |
| X18/70 |
Media interface connector |
10H |
| Z20/20 |
Media Interface shielding |
24G |
| Z20/20 |
Media Interface shielding |
24D |
| Z20/30 |
Tracer wire connector sleeve |
9C |
| Z20/31 |
Tracer wire connector sleeve |
9G |
| Z6/30 |
Circuit 31 connector sleeve |
14E |
| Z6/30 |
Circuit 31 connector sleeve |
22E |
